Specification Comparison

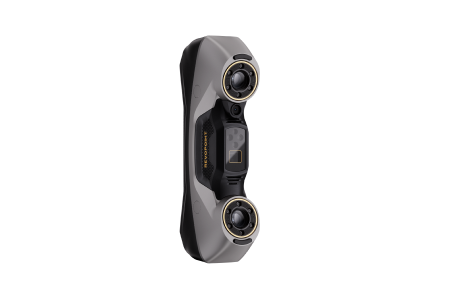

MetroY Pro
MetroX

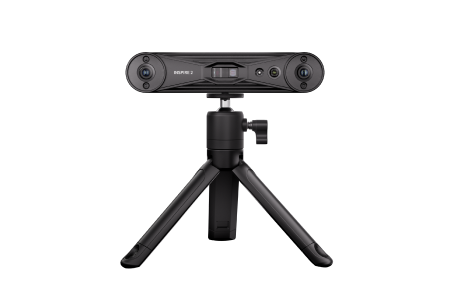

INSPIRE 2
$1,583.00
BUY NOW >
MetroX 3D Scanner
$849.00
BUY NOW >
$422.00
BUY NOW >
Scanning Type
Handheld
Handheld and Desktop
Handheld and Desktop
Technology
Multi-line Laser Scan and Full-field Structured Light Scan
Multi-line Laser Scan and Full-field Structured Light Scan
Dual-camera Infrared Structured Light and Infrared Multi-line Laser
Application
Small to Medium
Small to Medium
Small to Medium
Single-frame Precision, up to*
0.01 mm
0.01 mm
0.03 mm
Single-frame Accuracy, up to*
0.02 mm
0.02 mm
0.05 mm
Photogrammetric Length Accuracy
0.02 mm + 0.04 mm × L (m), L is the length of the object.
Volumetric Accuracy: 0.025 mm + 0.05 mm × L (m) L is the length of the object.
0.05 mm + 0.1 mm × L (m) , L is the length of the object. (Note: Using marker tracking mode)
Fused Point Distance, up to
0.05 mm
0.05 mm
0.05 mm
Working Distance
200 ~ 400 mm
200 ~ 400 mm
200 ~ 400 mm
Single Capture Area at Nearest Distance
152 × 138 mm at 200 mm
160 × 70 mm at 200 mm
130 × 129 mm at 200 mm
Single Capture Area at Furthest Distance
332 × 276 mm at 400 mm
320 × 215 mm at 400 mm
293 × 257 mm at 400 mm
Angular Field of View, HxW
49 × 38°
43 × 33°
43 × 35°
Minimum Scan Volume
10 × 10 × 10 mm
10 × 10 × 10 mm
20 × 20 × 20 mm
Maximum Scan Volume
1 × 1 × 1 m
1 × 1 × 1 m
2 × 2 × 2 m
Scanning Speed, up to
Multi-line Laser Scan: 1,700,000 Points/s, Full-field Structured Light Scan: 7,000,000 Points/s
Multi-line Laser Scan: 800,000 Points/s Full-field Structured Light Scan: 7,000,000 Points/s
Full-field Structured Light Scan: 18 fps Multi-line Laser Scan: 30 fps
Depth-camera Resolution,up to
N/A
2 Megapixels
1280 × 1024
RGB-camera Resolution
2 Megapixels
2 Megapixels
1280 × 800
Color Scanning
Yes
Only in Auto Turntable Mode
Yes
Tracking Methods
Marker, Global Marker, Feature
Feature, Marker, Global Marker
Feature, Marker, Global Marker
Outdoor Scanning*
No
No
Yes
3D Light Source*
34 Blue Cross Laser Lines, 15 Blue Parallel Laser Lines, 1 Blue Single Laser Line, 62 Line Blue Full-field Structured Light
14 Blue Cross Laser Lines 7 Blue Parallel Laser Lines 62 Line Blue Full-field Structured Light
Class 1 Infrared Light
IR Fill Lights*
N/A
12 Blue LEDs
4 Infrared LEDs
White LED Flash*
N/A
N/A
1 White Flash LEDs
Position Sensors
N/A
N/A
9-axis IMU
CPU
4 core ARM, 2.0 GHz
4 core ARM, 2.0 GHz
4 core ARM, 2.0 GHz
Built in Chip Computing
Depth Computing
Depth Map Computing
Depth Map Computing
Storage
N/A
N/A
N/A
Memory (RAM)
N/A
N/A
N/A
Touch Screen
N/A
N/A
N/A
Buttons
4
4
1
Minimum PC Requirements*
macOS: CPU: M1 Pro/Max/Ultra, RAM ≥ 16GB; Windows: CPU: Intel i7 12th Gen or AMD Ryzen 7 5800, RAM ≥ 32GB, GPU (Optional): NVIDIA GeForce RTX 3050 (8GB); Note: If you're unsure about the CPU configuration, please ensure that the CPU has cores≥8, threads≥16, and a base frequency ≥2.4GHz.
macOS CPU: M1 Pro/Max/Ultra RAM ≥ 16GB Windows CPU: Intel i7 12th Gen 10700 or AMD Ryzen 7 5800 RAM ≥ 32GB GPU (Optional): NVIDIA GeForce RTX 3050 (8GB)
macOS CPU: M1 Pro/Max/Ultra RAM ≥ 16GB Windows CPU: Intel i7 12th Gen or AMD Ryzen 7 5800 RAM ≥ 32GB GPU (Optional): NVIDIA GeForce RTX 3050 (8GB) Note: If you're unsure about the CPU configuration, please ensure that the CPU has cores≥8, threads≥16, and a base frequency ≥2.4GHz.
Recommended PC Requirements*
macOS: CPU: M2 Pro/Max/Ultra, M3 Pro/Max/Ultra, RAM ≥ 24GB; Windows: CPU: Intel i9 12th Gen or better, RAM ≥ 64GB, GPU: NVIDIA RTX 4060 (8 GB) or better
macOS CPU: M2 Pro/Max/Ultra, M3 Pro/Max/Ultra RAM ≥ 24GB Windows CPU: Intel i9 12th Gen or better RAM ≥ 64GB GPU: NVIDIA RTX 4060 (8 GB) or better
macOS CPU: M2 Pro/Max/Ultra, M3 Pro/Max/Ultra RAM ≥ 24GB Windows CPU: Intel i9 12th Gen or better RAM ≥ 64GB GPU: NVIDIA RTX 4060 (8 GB) or better
Mobile Requirements
N/A
N/A
① Android System Version: 9.0 or better; RAM ≥ 8 GB; Storage ≥ 128 GB ② iPhone Models after iPhone X; System Version: iOS 14.0 or better; RAM > 4 GB; Storage ≥ 64 GB ③ iPad 10th Gen iPad or later Note: Multi-line scanning mode does not support standalone mobile phone operation. It requires the scanner to connect to a PC via WiFi to work, with the screen being cast to the mobile phone in real-time. Full-field scanning mode can be used independently with a mobile phone.
Compatible Systems
Windows 10/11 (64-bit), macOS 11.0 or better
Windows 10/11 (64-bit), macOS 11.0 or better
Windows 10/11, Android, iOS, macOS 11.0 or better
Native System
N/A
N/A
N/A
Output File Formats
PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
Ready to Print 3D Models
Wi-Fi
6
N/A
6
Bluetooth
N/A
N/A
4.1
Connector Type
USB Type-C to Type-C
USB Type-C
USB Type-C
Power Source
DC 12V, 3A
DC 12V, 3A
DC 5V, 1A
Battery
N/A
N/A
N/A
Scanner Weight
450 g
508 g
190 g
Dimensions(L x W x H)
211 × 94 × 47 mm
209 × 88 × 44 mm
53 × 27 × 132 mm
Special Object Scanning
Please use scanning spray when scanning transparent or specular surfaces.
Please use scanning spray when scanning transparent or specular surfaces in Multi-Line Laser modes. Using scanning spray is recommended when scanning transparent, black, specular, or highly reflective surfaces in Full-Field Structured Light modes.
Using scanning spray is recommended when scanning transparent, specular surfaces.
User Recalibration
Yes
Yes
Yes
Supported Accessories
Marker Block Kit, Mobile Kit (3rd Gen), Dual-axis Turntable
Dual-axis Turntable, Marker Block Kit
Large Turntable, Dual-axis Turntable, Handheld Stabilizer, Power Bank, Mobile Kit
