MIRACO

Overview

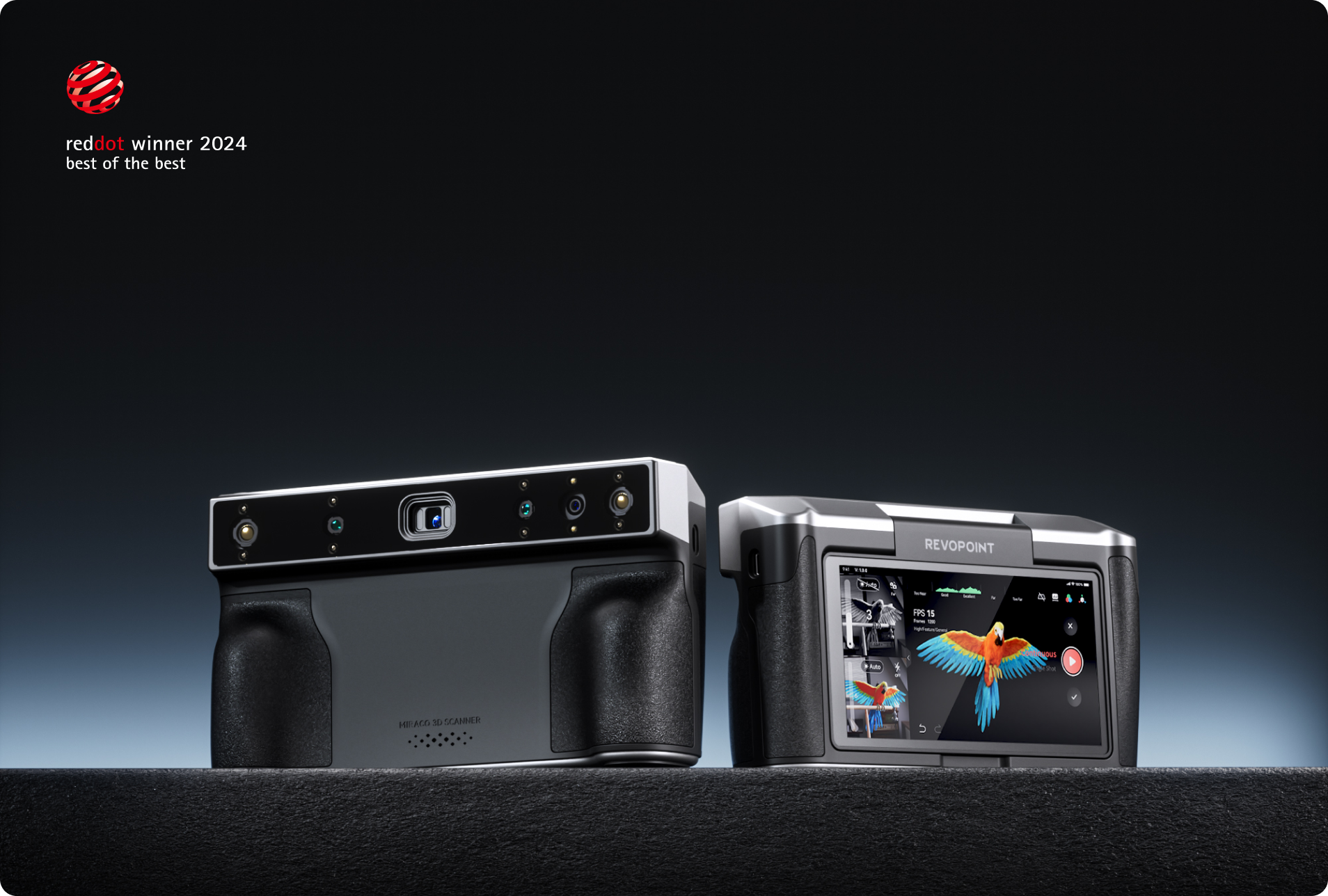

MIRACO 3D SCANNER

ALL-in-one Scanning

All-in-one Scanning

Go Big, Go Small

Freely switch between Far-mode and Near-mode mid-scan. Near-mode is great for capturing intricate details in specific areas or small objects, while Far-mode excels at quickly capturing entire objects.

Surgical Accuracy

Switch mid-scan between capturing fine detail with a single-frame accuracy of up to 0.05 mm or capturing large areas with a single-frame accuracy of up to 0.3 mm.

Up to 0.02 mm Precision

0.05 mm Accuracy

Your Scanning Portal

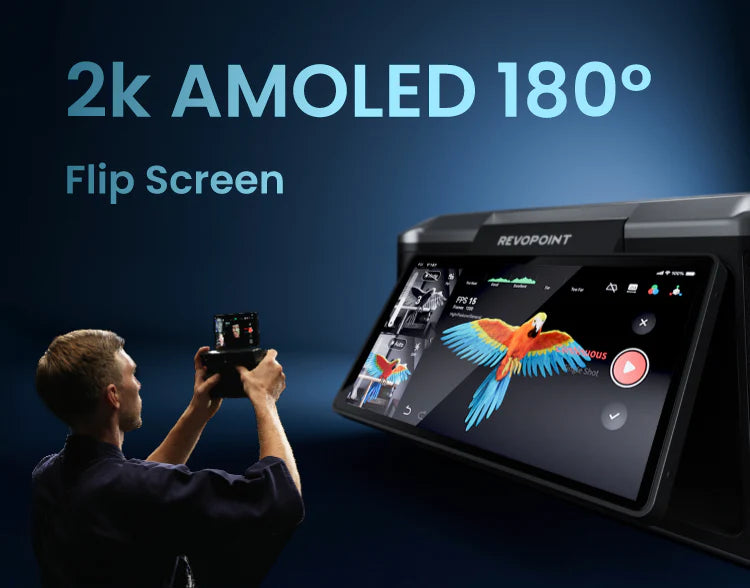

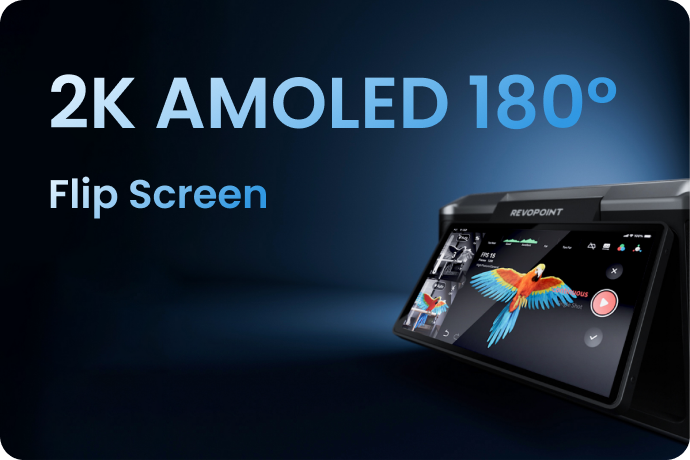

2k AMOLED 180°

Flip Screen

2k AMOLED 180°

Flip Screen

Screen Size

180° Adjustable Screen°

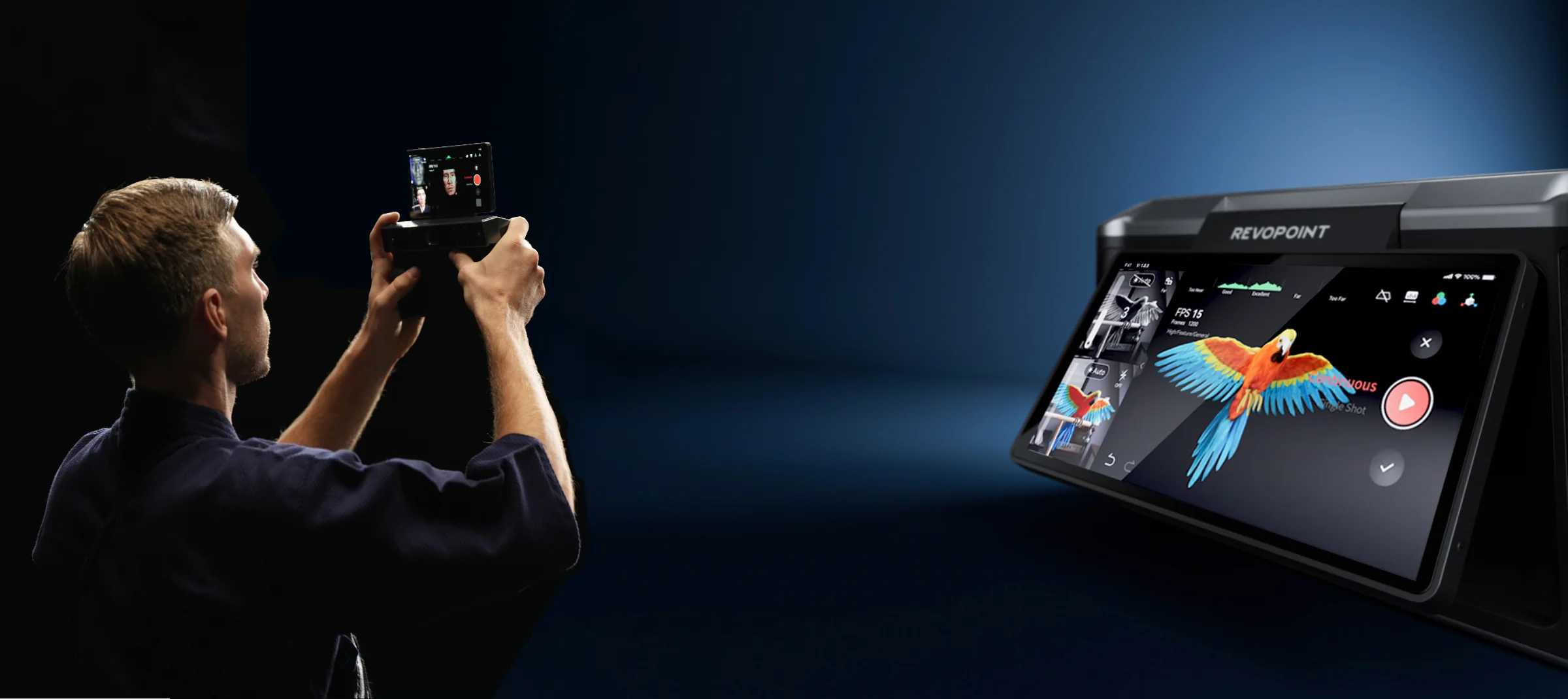

See your scans with crystal clarity on MIRACO's 6” 2k backlit AMOLED touch-sensitive screen. Its 180° adjustable screen allows easy viewing from any angle and can flipped for selfie scans.

Eye-popping Color

Create eye-catching colored 3D models with MIRACO’s 48-megapixel RGB Camera.

Eye-popping Color

Create eye-catching colored 3D models with MIRACO’s 48-megapixel RGB Camera.

48-megapixel

RGB Camera

Powerhouse in Your Hands

8-core 2.4GHz Processor 256 GB Hard Drive

Up to 5000 Frames
for None Color Scans

Up to 4000 Frames
for Color Scans

* Maximum number of frames in a single scan.

Up to 10000 Frames
for None Color Scans

Up to 8000 Frames
for Color Scans

Two Capture Modes

Single-shot Mode

Single-shot mode's single-frame capture makes it easier to scan in hard-to-maneuver environments and reduces point cloud overlap for increased accuracy.

Continuous Mode

Efficiently capture objects at fast up to 15 fps scanning speeds.

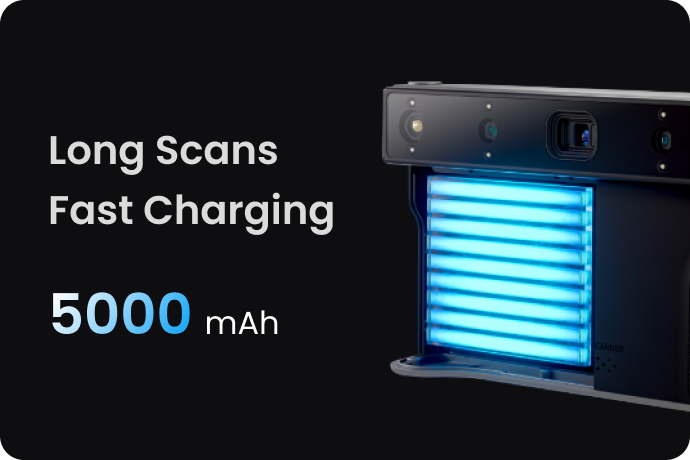

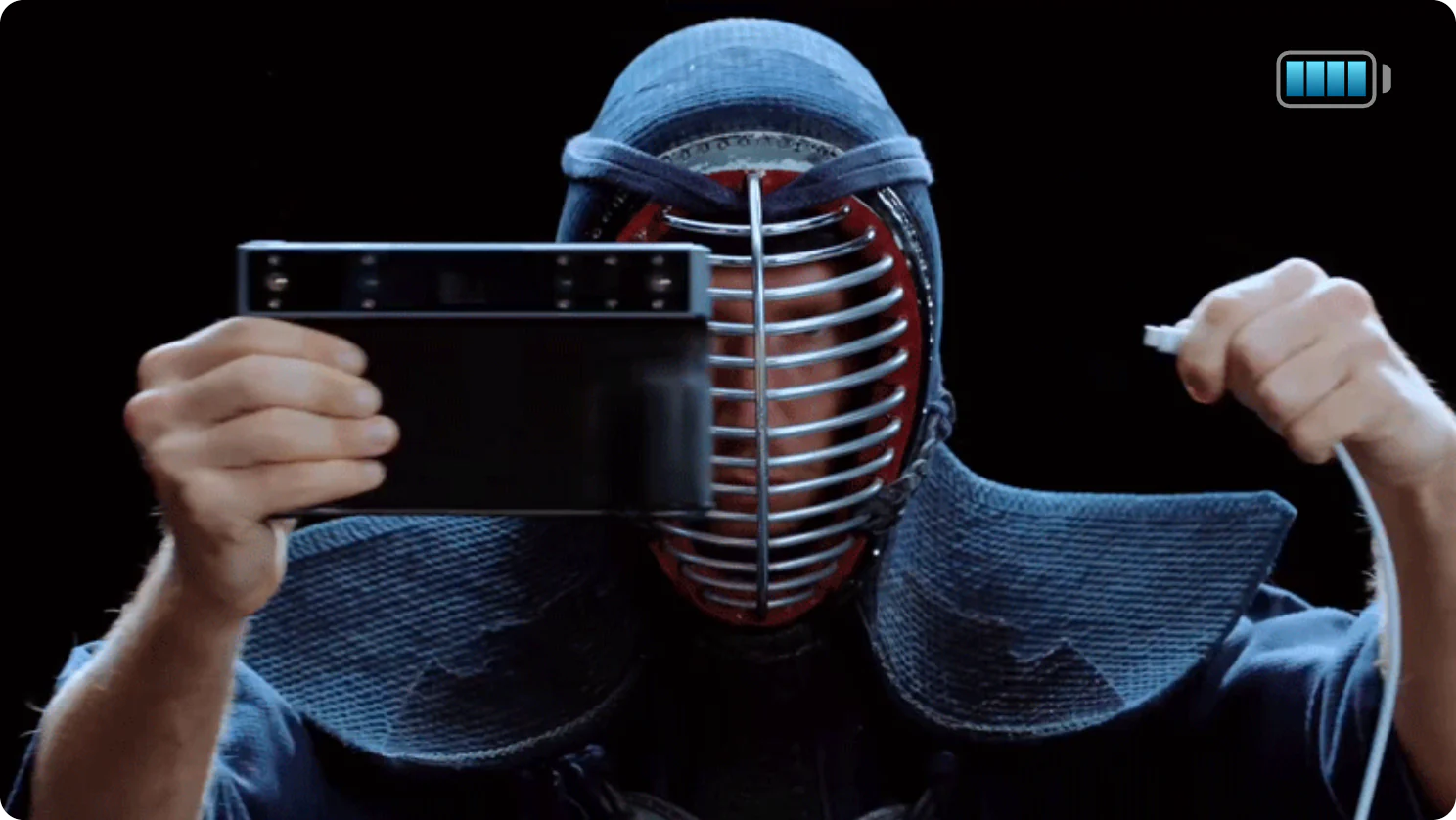

Long Scans, Fast Charging

5000
mAh

2 Hours
of Scanning

65W
Fast Charging

Recharge MIRACO to 80% in only 35 mins with 65W fast charging.

* MIRACO's battery is covered under a 2-year warranty.

No Cables, No PC Needed

Simple Project Transfers

Transfer your scans quickly and conveniently over MIRACO’s lightning-fast Wi-Fi 6 or easy-to-connect USB Type-C connection.

Screen Mirroring

Hook MIRACO up to TVs or monitors through a USB-Type C to HDMI adapter or a DP port for convenient 3D model checks or presentations.

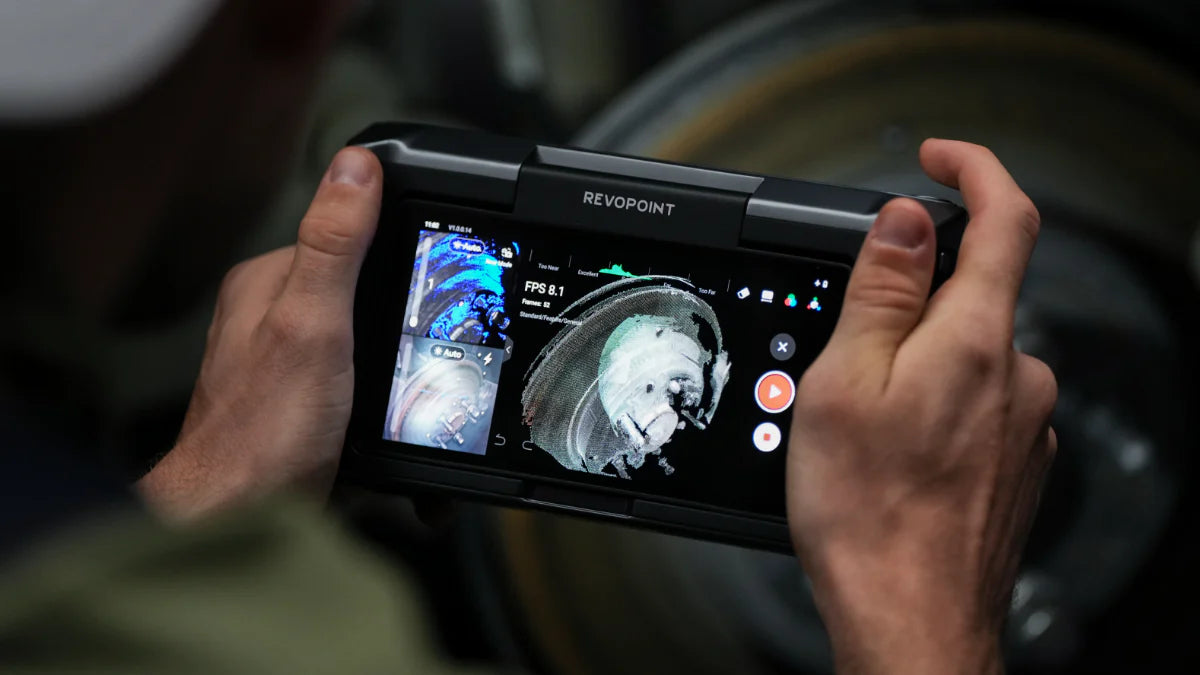

Powerful On-board Software

The onboard software’s intuitive UI makes capturing and post-processing your model a breeze. Perform fusion, meshing, and editing on the go to check the model before exporting your scans in PLY, OBJ, STL, ASC, 3MF, GLTF or FBX.

Models Made with MIRACO

Explore More >

Multiple Applications

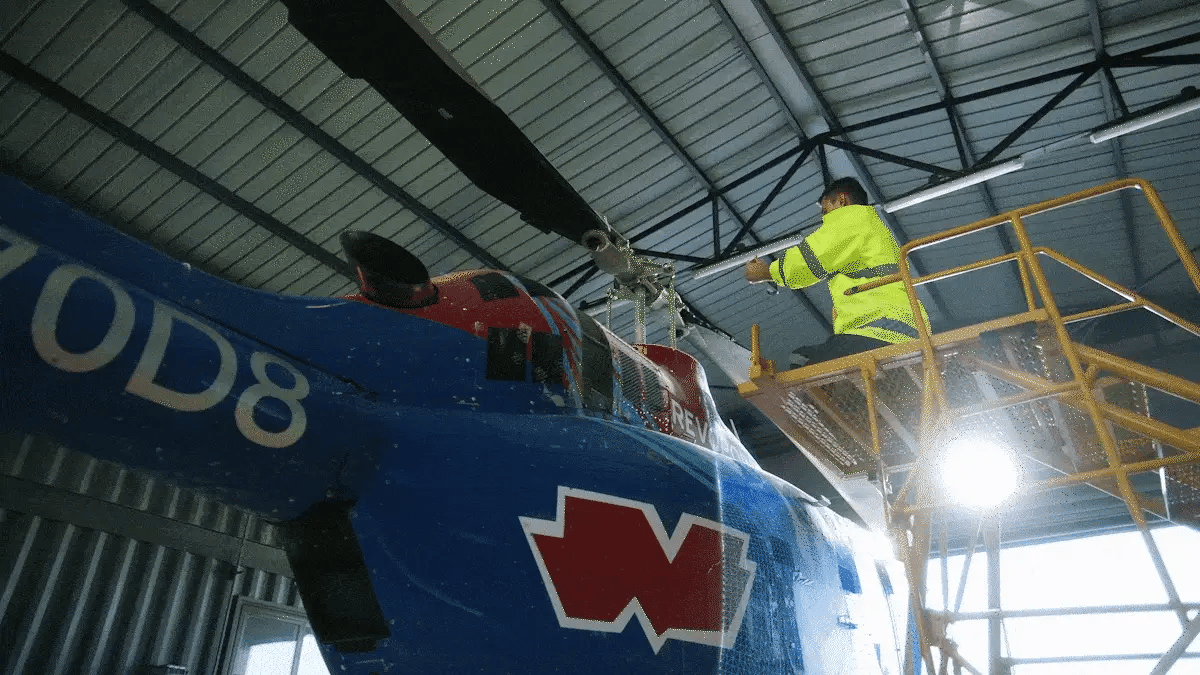

Aerospace

Quickly scan aircraft parts to check for wear and fatigue or to create replacements.

Automobiles

Capture every last part of a vehicle without time-consuming manual measurements for repair, reproduction, prototyping, or quality control.

3D Animation

With MIRACO, switch effortlessly between near and far capture modes for complete scanning flexibility. Near mode captures fine details on small objects or specific areas, while Far mode excels at quickly scanning entire bodies or large items, making MIRACO a powerful 3d body scanner and all-in-one 3D scanning solution.

Preservation

Digitize historical items with photo-realistic color details for preservation or restoration without direct contact.

The Buzz on MIRACO

Yanko Design

3D Printing Industry

3DNatives

All3DP

3Druck

3DPrint.com

“With its convenient, portable design, easy-to-use controls, flexible modes, and powerful features, scanning any object of any size is a breeze.”

"Some of its standout features include incorporating quad-depth cameras, offering the capability to seamlessly capture large and small objects. MlRACO also boasts high precision, with a single-frame precision of up to 0.02 mm."

"The strength of the MIRACO 3D scanner lies in its versatility. lt is a tool that professionals can use for numerous applications and in different sectors. From 3D printing to rapid prototyping.”

Reviews on YouTube

Go to Revopoint's Channel >

Specifications

Product Name

Revopoint MIRACO

Technology

Quad-camera Infrared Structured Light

Single-frame Accuracy, up to

0.05 mm

Fused Point Distance, up to

0.05 mm

Single Capture Area at Nearest Distance

28 x 53 mm at 100 mm

Single Capture Area at Furthest Distance

975 x 775 mm at 1000 mm

Two Capture Modes

Single-shot Mode ,

Continuous Capture Mode

Scanning Speed，up to

15 fps

Minimum Scan Volume

10 x 10 x 10 mm

Maximum Scan Volume

4 × 4 × 4 m

Working Distance

100 - 1000 mm

Screen

6” 2k AMOLED Touch Screen

Auxiliary Lighting

Infrared Fill Lights, White Flash LEDs

3D Light Source

Class 1 Infrared Light

Storage

256 GB eMMC

Position Sensors

9-axis IMU

Memory (RAM)

16 GB or 32 GB DDR4 (32GB

only in MIRACO Pro)

RGB Camera Resolution，up to

48 Megapixels

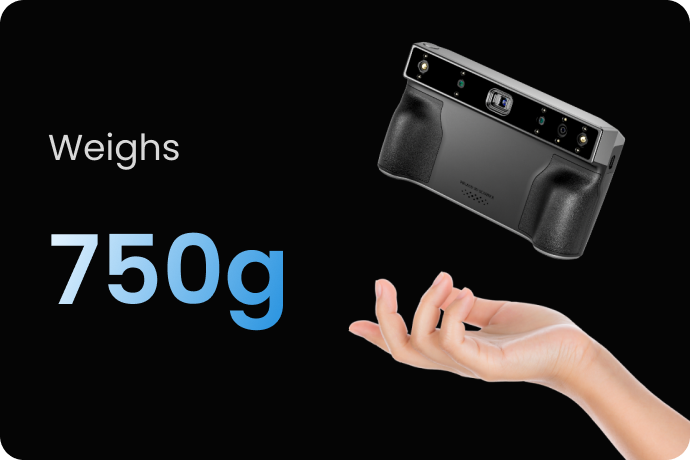

Scanner Weight

750 g

Dimensions（L x W x H）

200 x 50 x 110 mm

Battery Capacity

Internal lithium Battery 5,000 mAh,

supporting up to 2-hour

continuous scanning

CPU

8-core CPU，2.4 GHz

Tracking Methods

Feature, Marker, Global Marker

Protection Rating

IP45

Connector Type

USB Type-C

Wi-Fi Type

Wi-Fi 6

Compatible Operating Systems

Windows 10/11 (64-bit), macOS 11.0 or better

Operating System

Native Android System

Special Object Scanning

Use scanning spray for

transparent, dark, or highly

reflective objects

Scanning Environment

Indoors and Outdoors

Output File Formats

PLY, OBJ, STL, ASC, 3MF, GLTF, FBX

3D Printing Compatible

Yes

Built in Chip Computing

Depth Map Computing, 3D

Scanning, Point Cloud

Processing and Editing

Minimum PC Requirements*

macOS
CPU: M1 Pro or better; RAM ≥ 8GB
Windows
CPU: Intel i7 12th Gen or better; RAM ≥ 16GB

Recommended PC Requirements*

macOS
CPU: M3 or better; RAM ≥ 8GB
Windows
CPU: Intel i9 11th Gen or better; RAM ≥ 32GB

Note:
1. Precision is how close repeated measurements of the same object at a single angle are to each other. Accuracy is how close a measured value at a single angle is to the actual (true) value. They were both acquired in a controlled lab environment. Actual results might vary, subject to the operation environment.
2. Outdoor scans should avoid direct sunlight.
3. Class 1 Laser: Avoid direct eye exposure for extended periods! Refer to Standards for Class 1 Lasers for details.
4. Some products have flashing lights, which may not be suitable for people with photosensitive epilepsy.
5. The MIRACO series 3D scanners require no PC when scanning. But the PC requirements above should be followed if you connect the MIRACO to Revo Scan (PC) for more operations.

What’s in the Box?

MIRACO

MIRACO 3D Scanner

MIRACO Pro

MIRACO 3D Scanner

Far-mode Calibration Board x 4
Large Calibration-board Sheet

USB Type-C to HDMI Adapter

Also Included

* ① The adapter may vary depending on the country or region.

Tripod

Mini Turntable, Sample Bust
&Turntable Topper

Near-mode

Calibration Board

Magic Mat x 2

Wrist Strap

65W Dual USB Type-C Port

Power Adapter

Markers(6 mm) × 200

Scanner Bag

* ① The adapter may vary depending on the country or region.

FAQ

Can the MIRACO be used as a 3D body scanner?

Yes, the MIRACO 3D Scanner excels as a 3D body scanner, capable of capturing detailed full-body scans quickly and accurately using its Far and Near modes for optimal detail and coverage.

How accurate is the MIRACO when scanning human bodies?

MIRACO offers surgical accuracy with single-frame precision up to 0.05 mm, ensuring highly detailed and precise 3D body scans suitable for medical, animation, and custom fit applications.

What sizes of objects can the MIRACO scan?

MIRACO supports scanning objects ranging from small intricate items (minimum scan volume 10 x 10 x 10 mm) to large objects up to 4 x 4 x 4 meters, making it versatile for many applications.

Does MIRACO require a PC to operate during scanning?

No, MIRACO is a standalone 3D scanner with onboard processing and storage, allowing users to scan without a PC. However, it can connect to a PC for advanced post-processing.

What file formats does the MIRACO support for exporting scans?

The MIRACO exports 3D models in multiple popular formats including PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX, compatible with most 3D printing and CAD software.

Is the MIRACO suitable for scanning reflective or transparent objects?

Yes, using Revopoint’s scanning spray accessory, MIRACO can effectively capture transparent, dark, or highly reflective surfaces for accurate 3D scanning results.
