Trackit

Overview

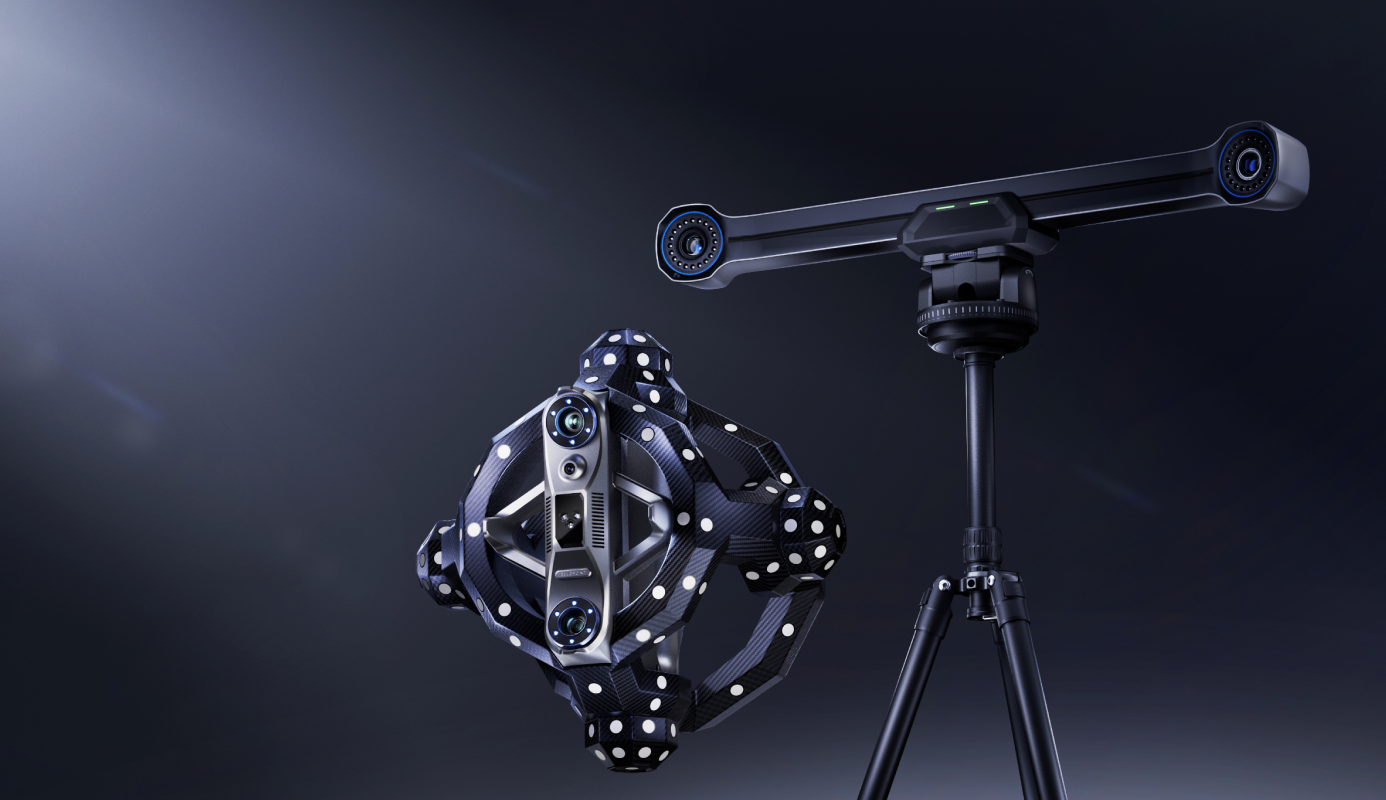

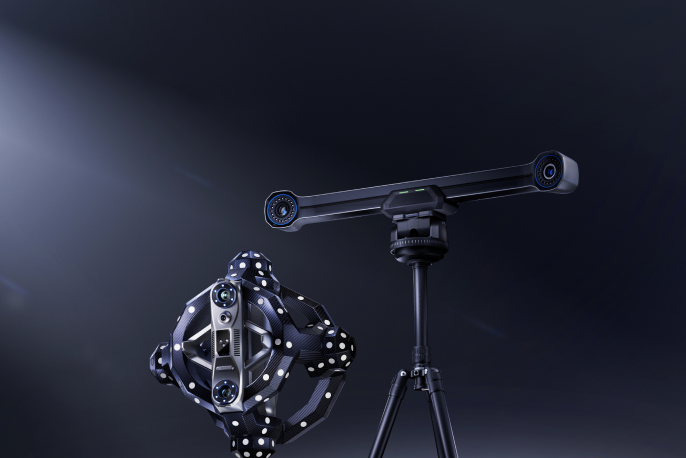

Trackit 3D Scanner

Optical Tracking 3D Scanner

Marker-free Scans

No Spraying Needed

Auto Calibration

Saves Time and Effort

Capture Small to Big Objects

Large Base Station Tracking Area

Up to 3260 × 2845 mm @ 4000 mm

Revo Measure

Comprehensive Metrology Software

Single Line Laser

Scan Deep Holes

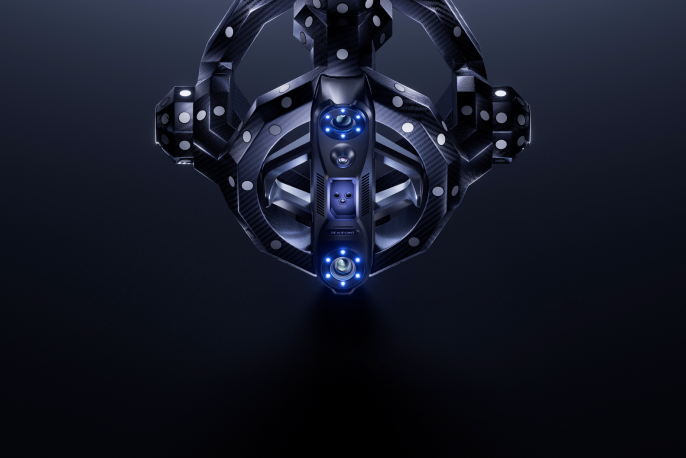

One-piece Carbon Fiber Frame

Ensures Scan Reliability

30 Cross Line Lasers

Rapid Scans

Take a Closer Look

High Accuracy Small to Big Scans

Superb Scanning Details

Create detailed 3D models ready for dimensional inspection in quality
control or scan-to-CAD conversion for reverse engineering.

Dual Blue Laser Capture Modes

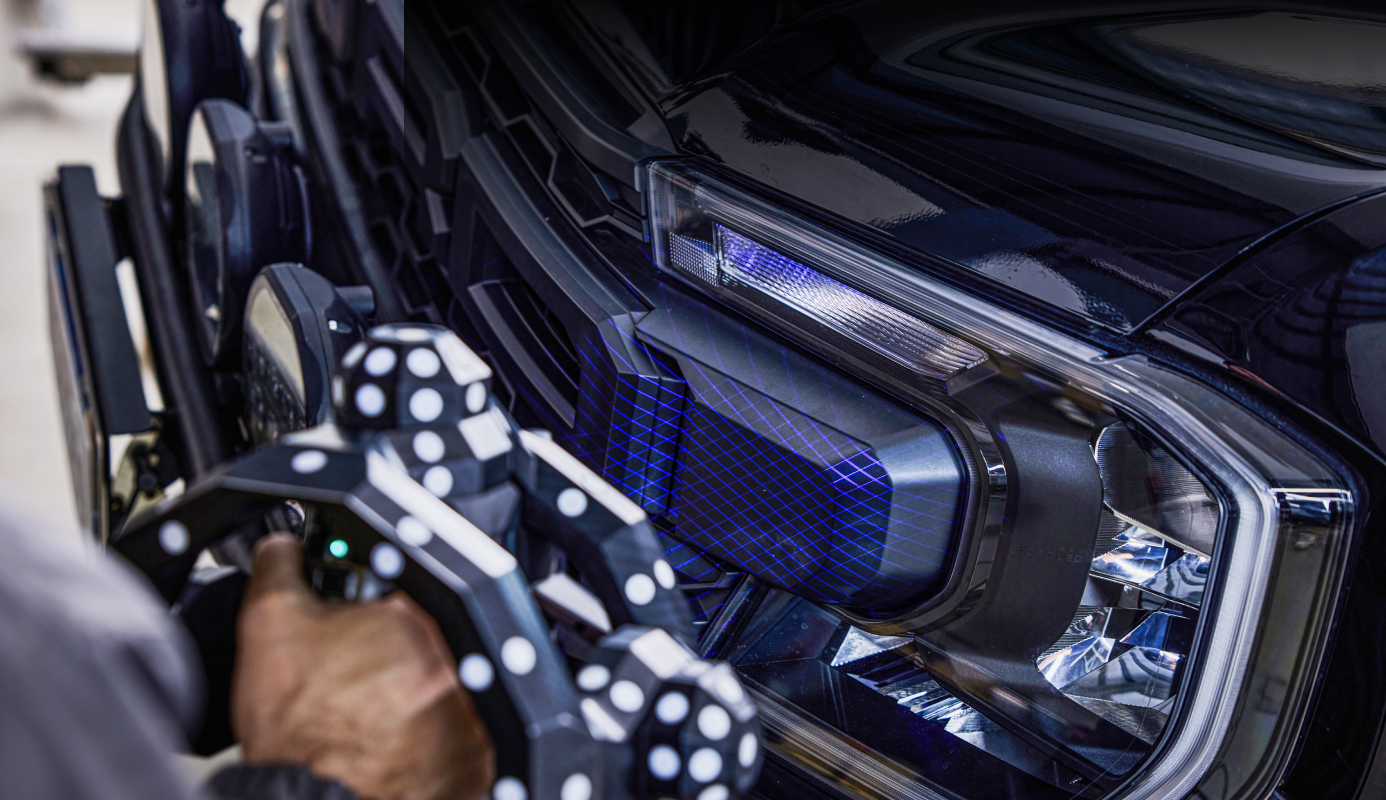

Fast Scans: 30 Cross Lines

Efficiently scan surface areas, including dark or shiny ones, without using scanning spray.

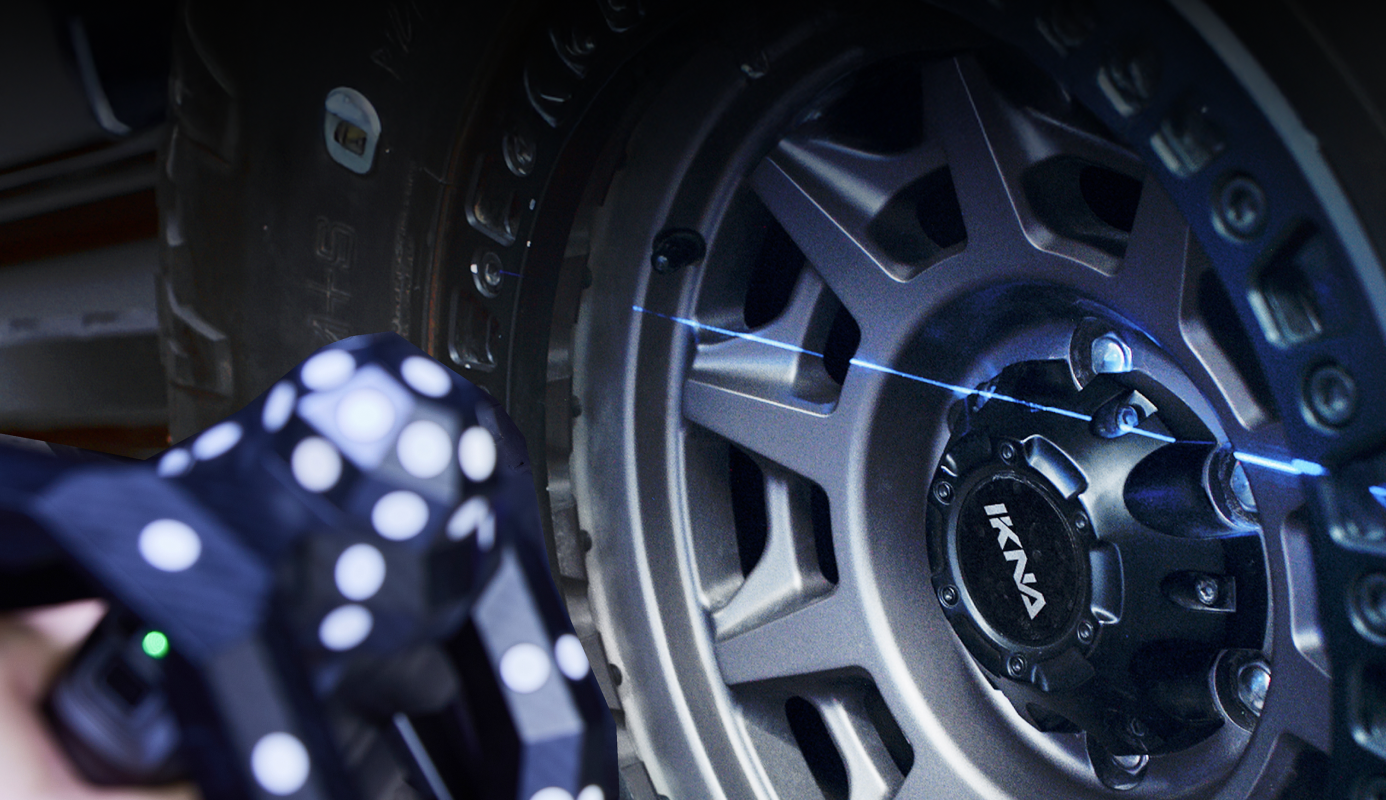

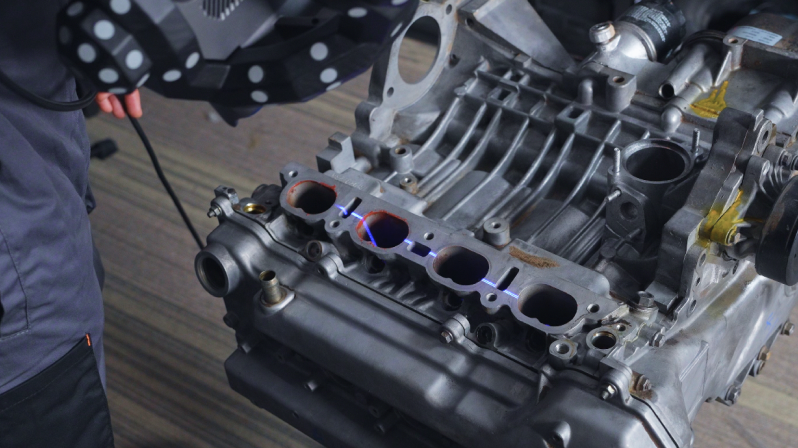

Deep Holes: Single Lines

Ensure that fine details like gear teeth, deep holes, crevices, and recessed areas are fully captured.

Optical Tracking or Standalone Handheld Scans

Adapt to various scanning situations by switching between optical tracking and
standalone handheld 3D scans. Easily capture hidden or interior areas that the base
station cannot see using Trackit’s standalone features.

Optical Tracking Scans

Standalone Handheld Scans

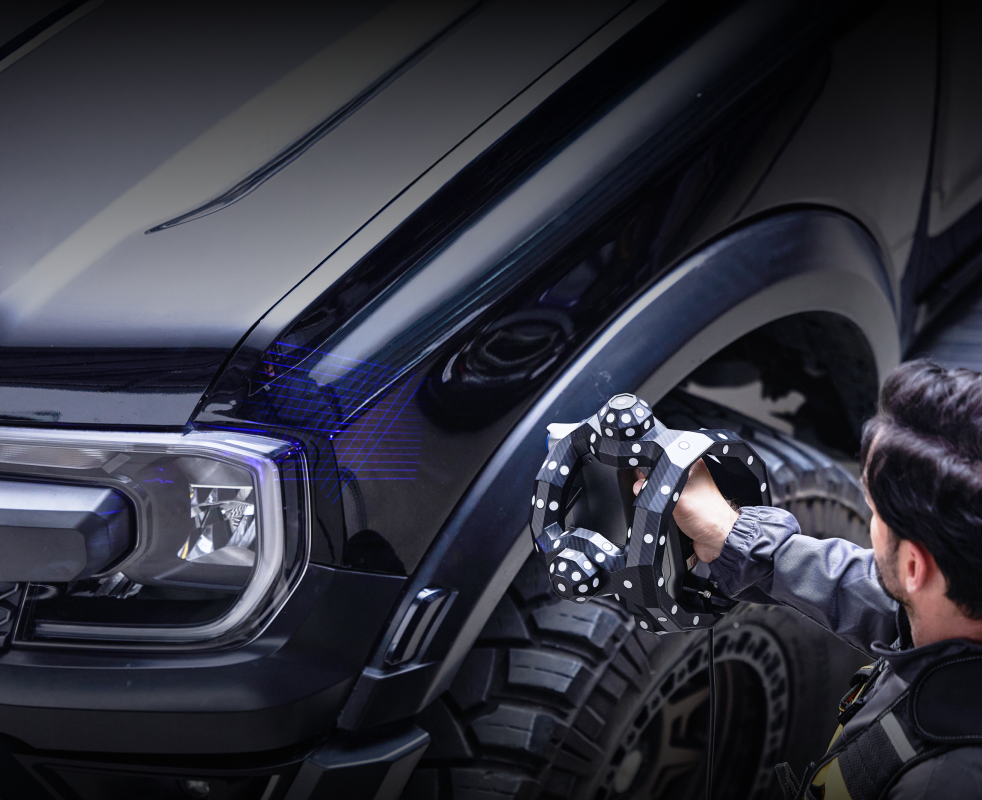

Time-saving Marker-Free Scans

The Trackit Tracking 3D Scanner uses advanced optical tracking to track its location in real time
and captures accurate 3D data without needing markers. Supercharge your 3D laser scanning
efficiency for workpieces ranging from 10 mm to 6 meters with Trackit's dual-camera base station.

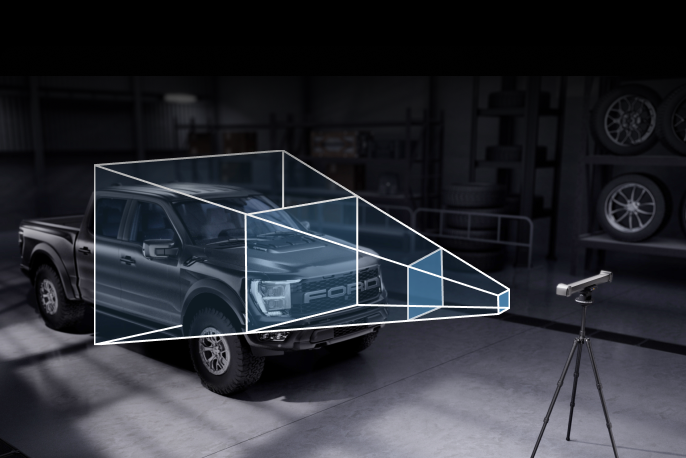

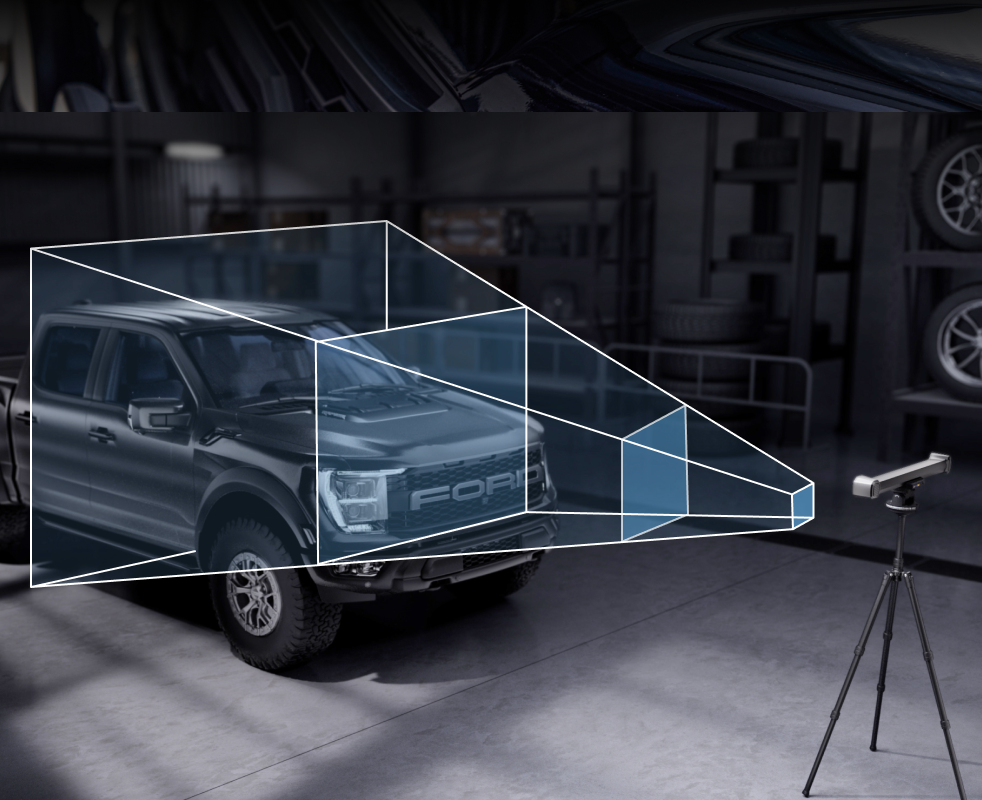

Easily Scan Large Workpieces

Effortlessly capture large workpieces by leapfrogging* Trackit's base station around them as you rapidly
capture their surfaces at up to 1.5 million measurements per second. Trackit's anchor block system
ensures flawless frame stitching with every leapfrog, enabling you to efficiently create professional 3D
models. The highly adjustable tripod lets you easily position Trackit to meet multiple capture scenarios.

Maximum Tracking Frame Area:
3260 × 2845 mm @ 4000 mm
Easily Maneuver:
6-meter cable
Tracker Working Distance:
1.5 to 4 m

*Moving the base station around large objects
to fully capture them.

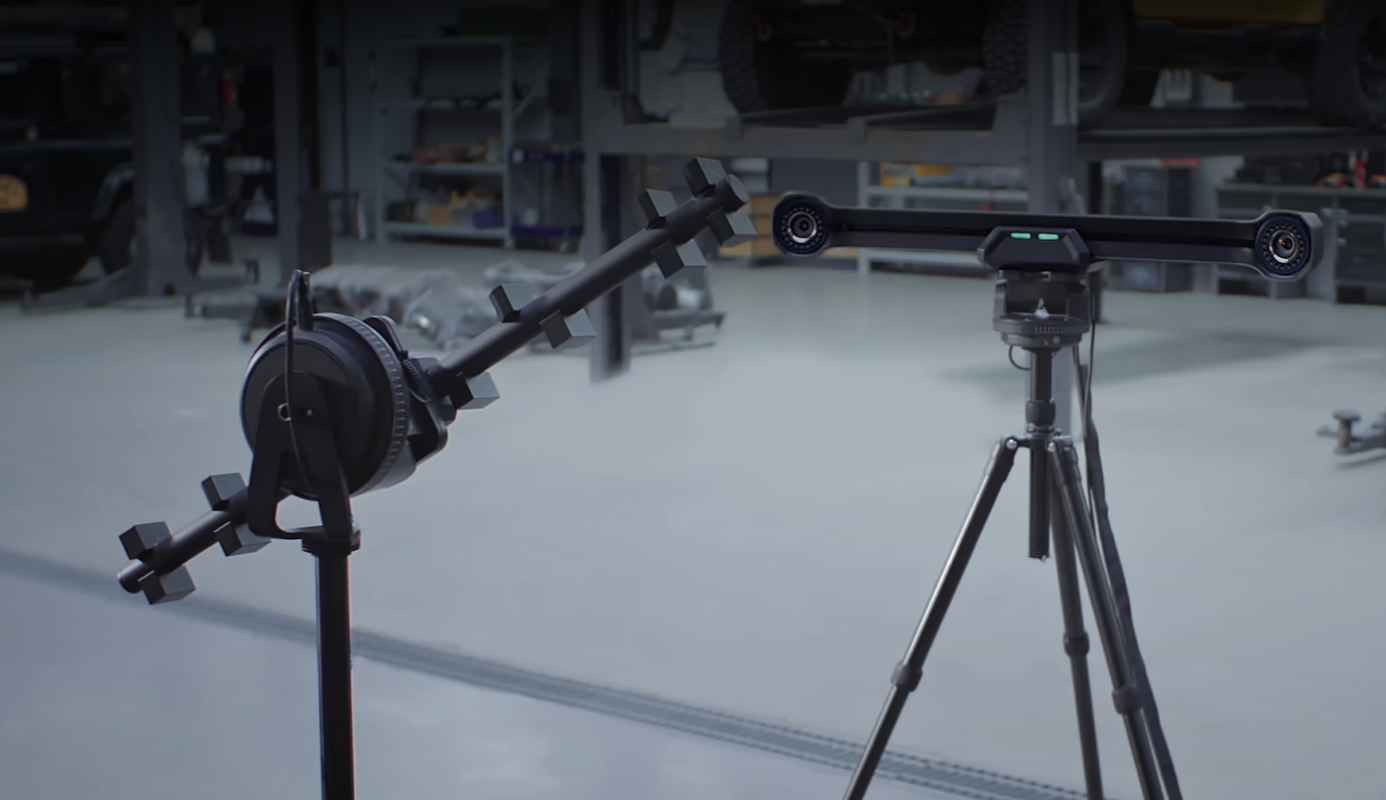

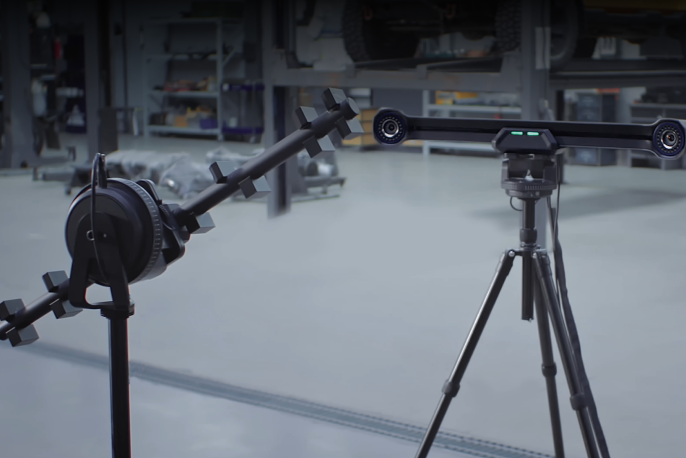

Auto Calibration Saves Time and Effort

Skip complex and lengthy calibration
processes and get perfect multi-pose
calibrations free from human errors.
Trackit’s smart auto-calibrating dual-axis
gimbal system does all the hard work with
total precision, so you'll always have a
reliable, accurate, and easy calibration
process.

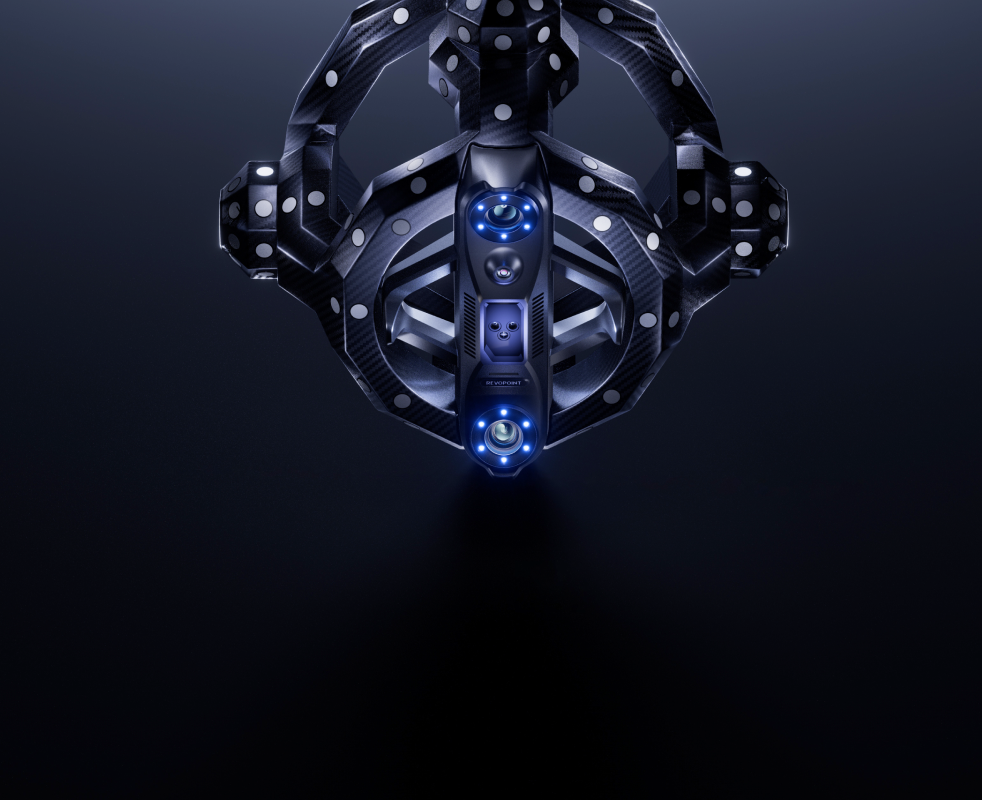

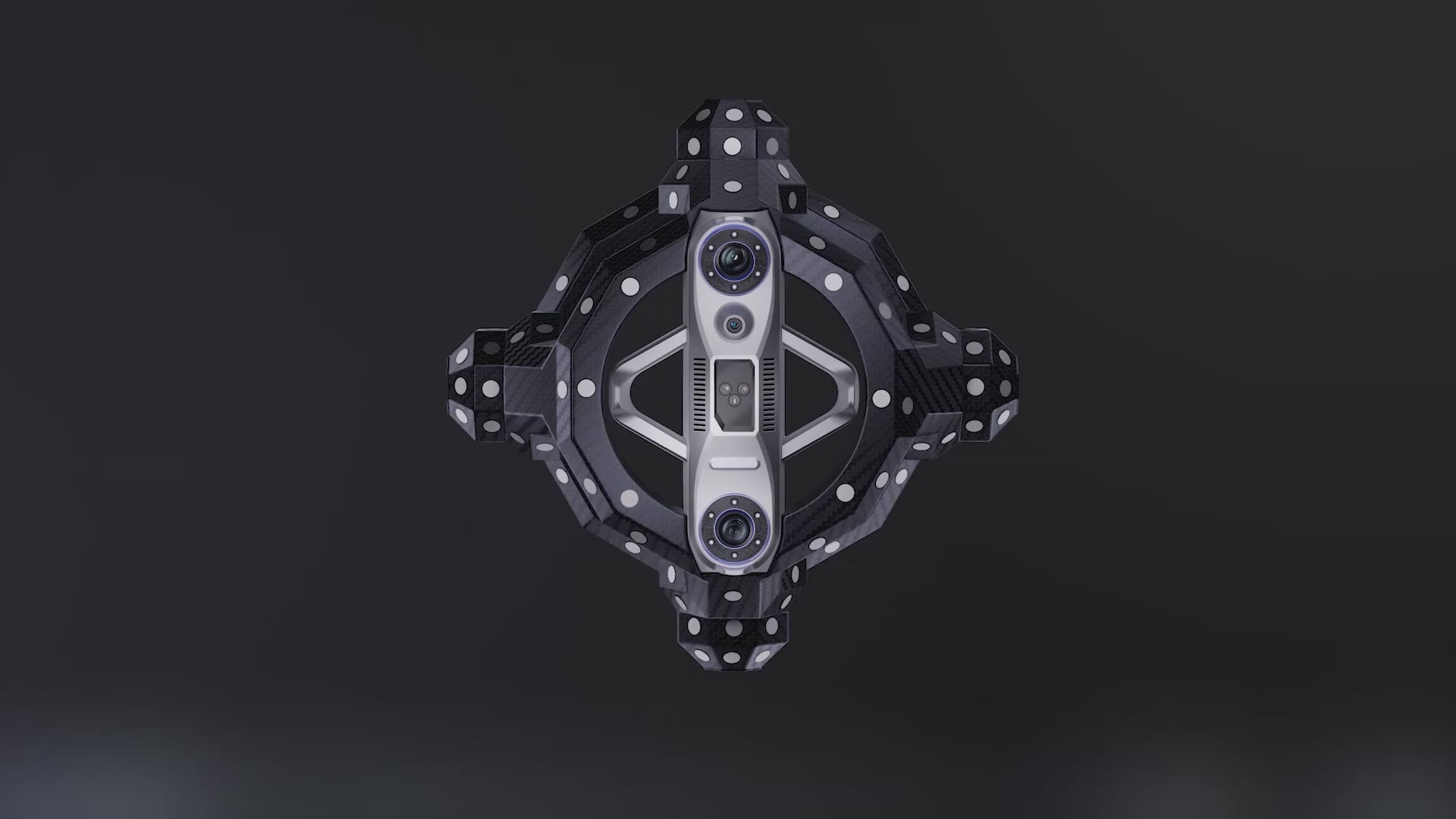

Robust Carbon Fiber Frame

Ensure consistent scan data every time with
Trackit's durable one-piece carbon fiber
frame, eliminating accuracy errors due to
frame deformation shifting markers.
Designed for demanding environments, its
sturdy yet lightweight construction is
comfortable for long scanning sessions.

Realistic Texture Mapping

Capture the object's surface texture to create vivid 3D models with Trackit's high-
resolution RGB camera, or use its texture data with Revo Measure for accurate
measurements and professional reports.

Trackit Robot 3D Scanning System

The six-axis collaborative robot equipped with the Trackit Optical Tracking 3D Scanner
enables fully automated point cloud capture of complex shapes up to 0.5 m in diameter,
with a volumetric accuracy up to 0.05 mm

Learn More >

Intelligent Temperature Monitoring

Trackit's high-sensitivity temperature sensors
monitor fluctuations, showing the Tracker and
Scanner's current temperature in real time. This
ensures optimal operation and prevents
temperature-related accuracy drift, maintaining
high 3D scanning accuracy.

Revo Track: Top-tier Software

Revo Track easy-to-use and free software for scanning, editing, processing, and calibrating.
Output Formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX

Scan Process Edit Merge Export

Scan

Granular scan settings let you control every aspect of the scanning
process, ensuring optimal point cloud capture. Ensure a perfect scan with
real-time point cloud monitoring to check if you've captured enough data.

3D Measurement Solutions

Revo Design Software

Revo Design (identical functions to QUICKSURFACE Lite) bridges the gap between 3D scanning
and engineering design, streamlining the conversion of 3D scan data into CADs. With robust
tools for mesh editing, freeform and parametric modeling, and scan-to-CAD workflows, Revo
Design is ideal for reverse engineering, product development, and industrial design.

Revo Measure Software

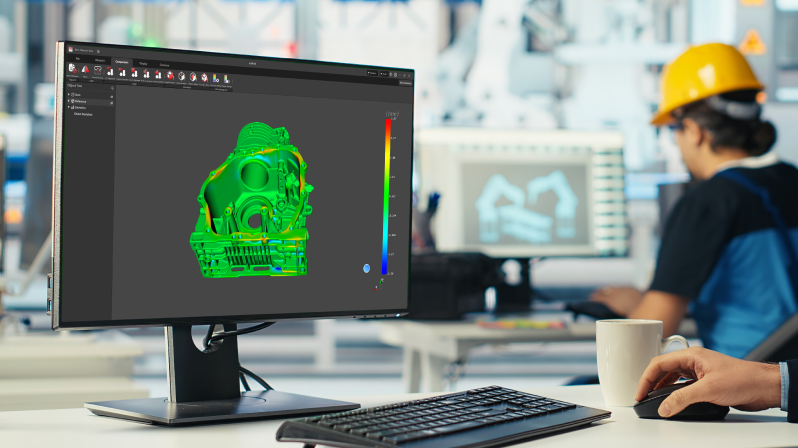

Efficiently compare your point clouds or meshes to CADs using our new software, Revo
Measure. Its powerful tools offer high-accuracy model measurement, parameter
extraction, volume measurement, and GD&T Analysis tools.

Accurate Dimension
Measurement

GD&T Analysis

Model
Deviation Analysis

Section Creation and
Measurement

Measurement
Report Export

Support for Multiple Data
Formats: PLY, OBJ, STL, and PTS

* Supports Chinese, Traditional Chinese, Japanese, Korean, English,
French, German, Italian, Spanish, Russian, Portuguese, and Turkish.

Trackit's Models Gallery

Explore More >

Professional Applications

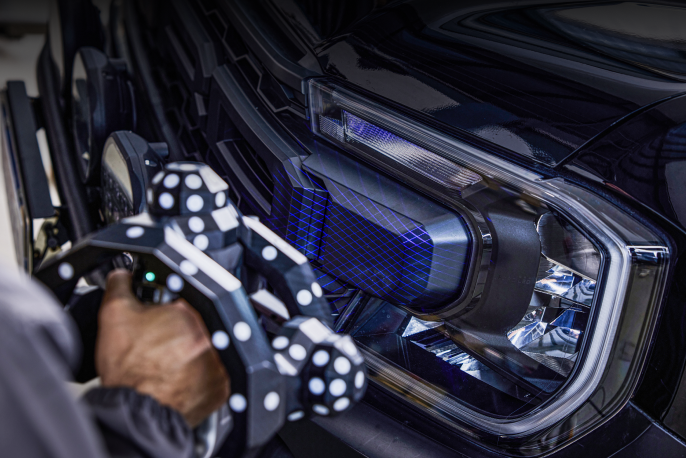

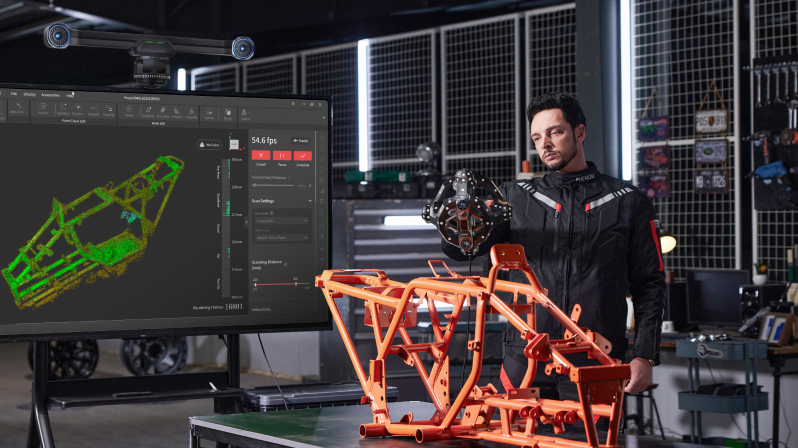

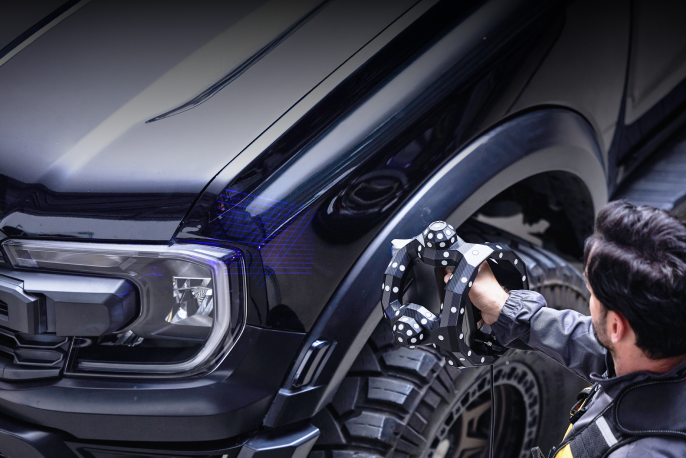

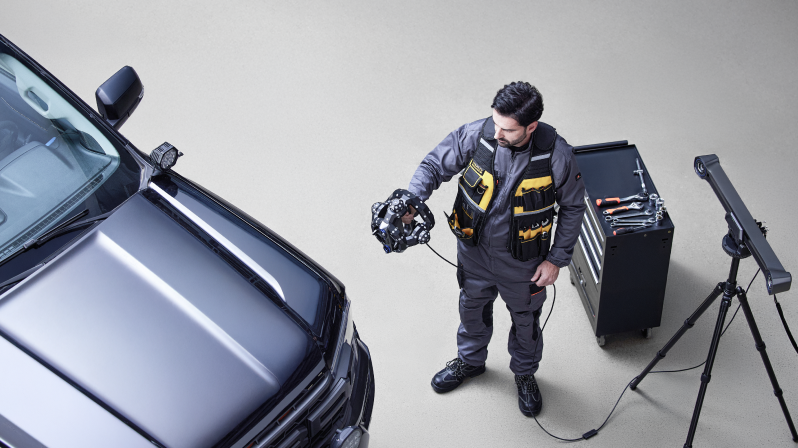

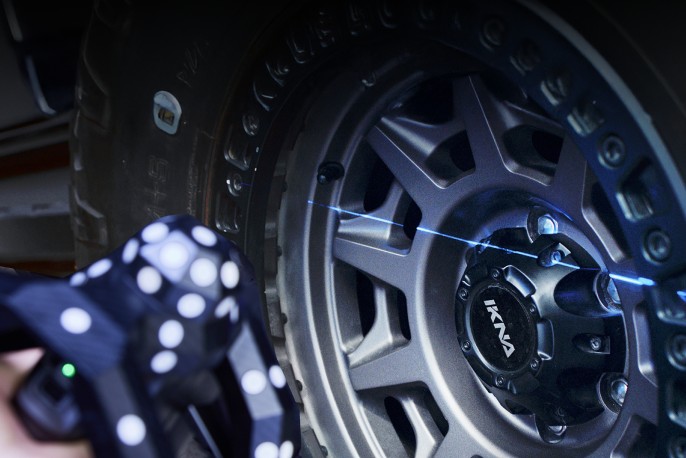

Automotive Applications

Efficiently capture complete vehicles or components without the hassle of time-consuming marker placement for repair, reproduction, prototyping, or quality control.

Quality Control

Ensure product quality and streamline quality control processes with rapidly created 3D models ready for dimensional inspection.

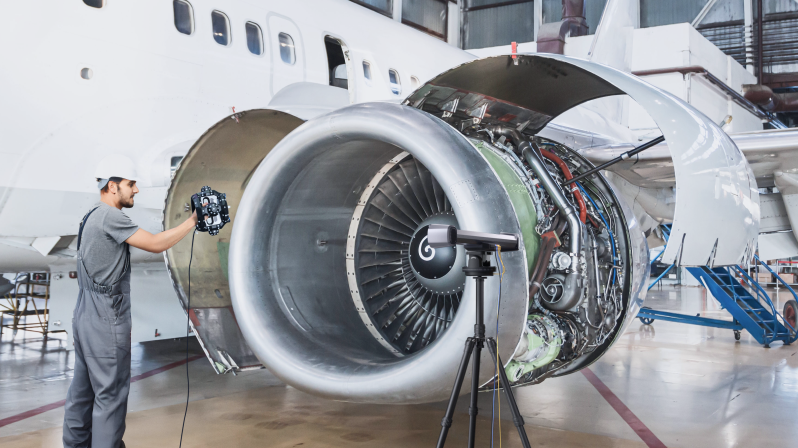

Aerospace

Evaluate and fix aircraft efficiently using Trackit's optical tracking systems to rapidly capture parts to check wear and fatigue or create replacement components.

Rapid Prototyping

Trackit provides accurate 3D scanning for quick prototyping and design validation. It efficiently scans complex geometries, streamlining prototyping and reducing time to market.

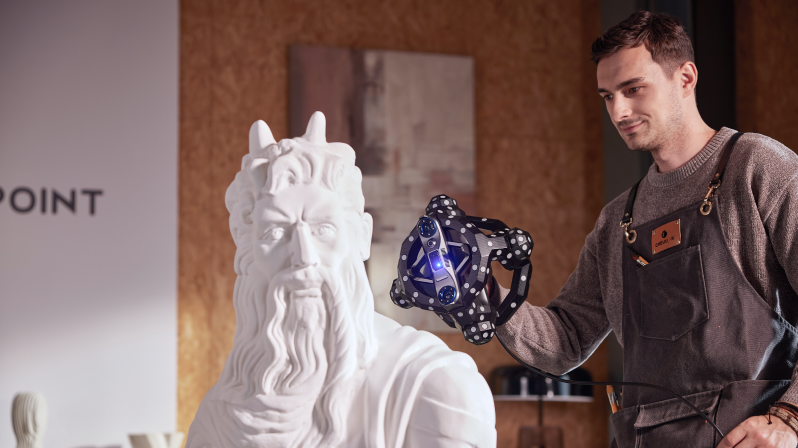

Art and Design

From small artifacts to entire displays, Trackit is ready to create 3D models unblemished by markers for reproduction, restoration, XR, and design applications.

Mold Casting

Ensure mold accuracy and quality with Trackit's powerful single-line mode. It can accurately capture deep holes and narrow areas, ensuring precise mold reproduction.

Get More Offers

Special Events

Special Discount

If you’re a teacher, veteran, doctor, or student with a valid ID, you can enjoy an extra 5% discount on all of our scanners.

Learn More

Bulk Purchasing Program

Buy scanners in bulk and get up to 5% off at checkout!

Learn More

Consult Experts

Speak to expert now!We’re here to help you with all your technical questions and concerns.

Chat With Us

Book a Meeting

Why Choose Trackit

“The Trackit, which we first laid eyes on in April at Rapid+TCT, is on the industrial side of Revopoint scanners, designed for scanning large objects that also need close-up detail scanning, such as vehicles and machinery. It offers markerless scanning capabilities by pairing a large stationary optical unit with a handheld scanner encased within a marker-dot-covered housing.”

“Though often out of reach for small and medium-sized enterprises, professional-grade scanning is now more accessible with Trackit, which combines industrial-level performance with practical affordability.”

“Revopoint is not only upping the capability of its 3D scanning solutions with the new Trackit, it is also aiming to make the state-of-the-art technology more accessible so that independent designers and small businesses can benefit from powerful-and streamlined-3D scanning.”

Reviews on YouTube

Go to Revopoint's Channel >

Specifications

3D Scanner

Tracker

Single-frame Accuracy①

0.02 mm

Fused Point Distance, up to

0.05 mm

Scanning Speed, up to

1,500,000 Point/s

Light Source②

30 Blue Cross Laser Lines 1 Blue Single Laser Line

Working Distance

200 - 400 mm

Single Capture Area at Nearest Distance

160 × 70 mm @ 200 mm

Single Capture Area at Furthest Distance

320 × 215 mm @ 400 mm

Weight

1.2 kg

Dimensions (L × W × H)

295 × 295 × 205 mm

Operating Temperature Range③

0 - 40 ℃

Output Formats

PLY, OBJ, STL, ASC, 3MF, GLTF, FBX

Material

Frame: Carbon Fiber Housing: Polycarbonate

Part Size Range (Recommended)

0.01 - 6 m

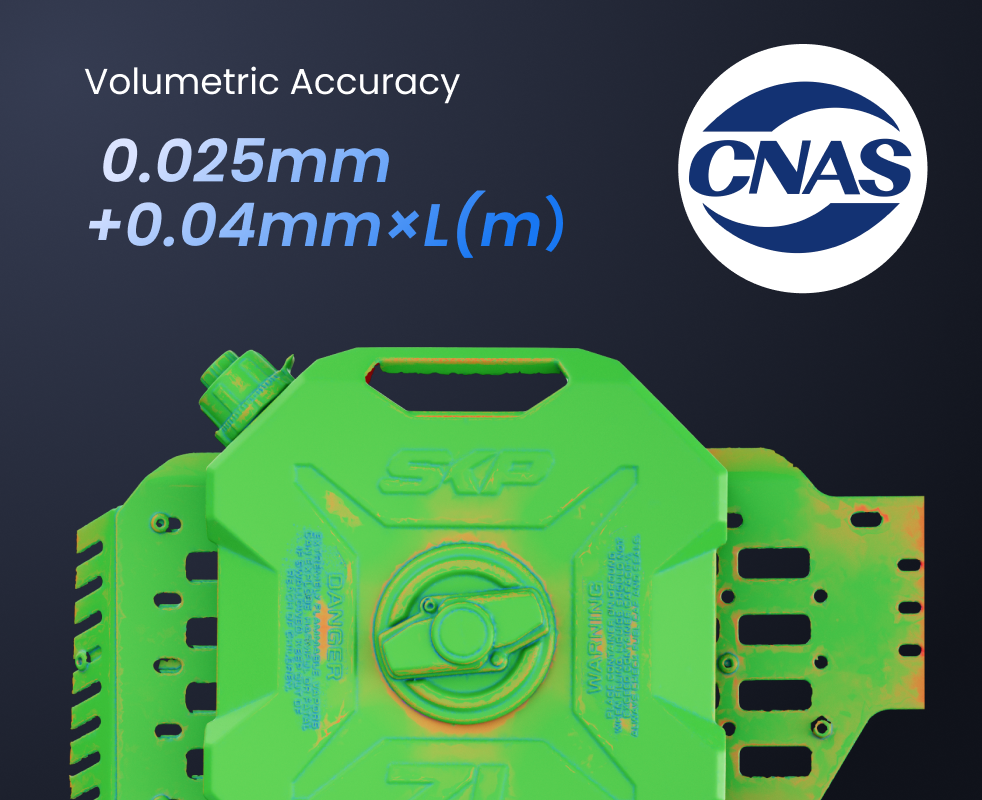

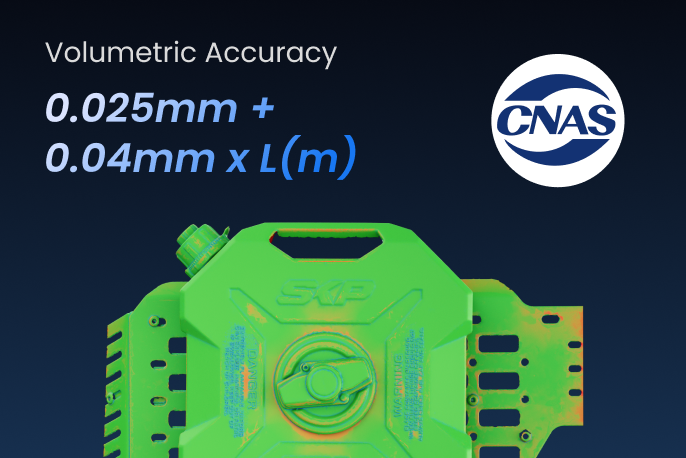

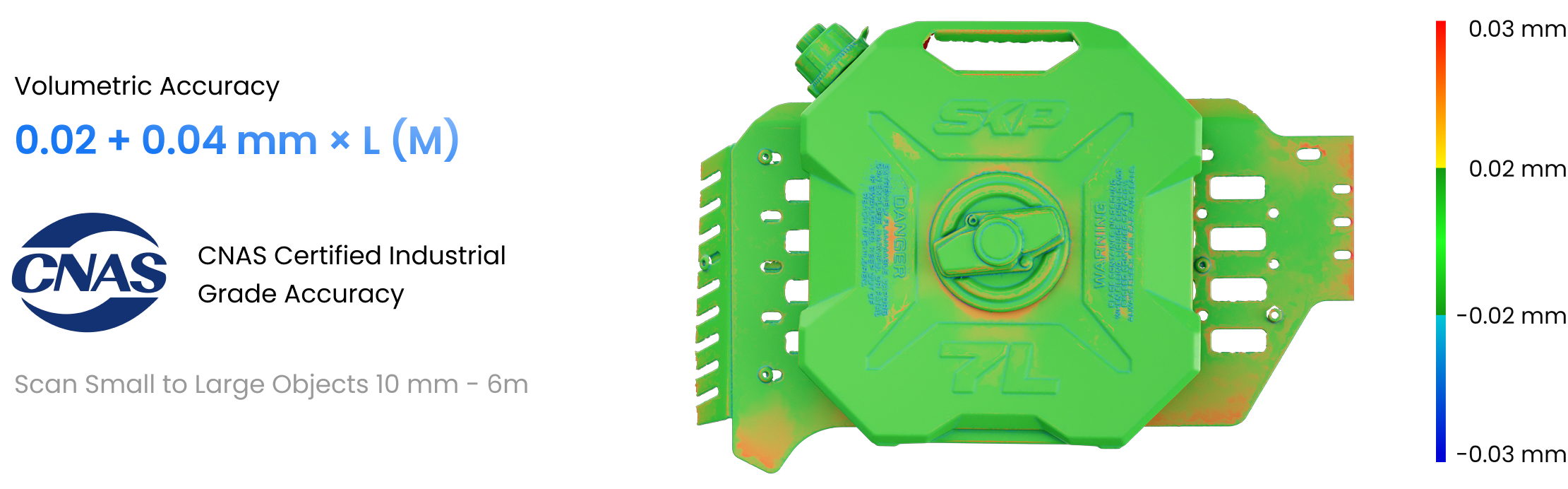

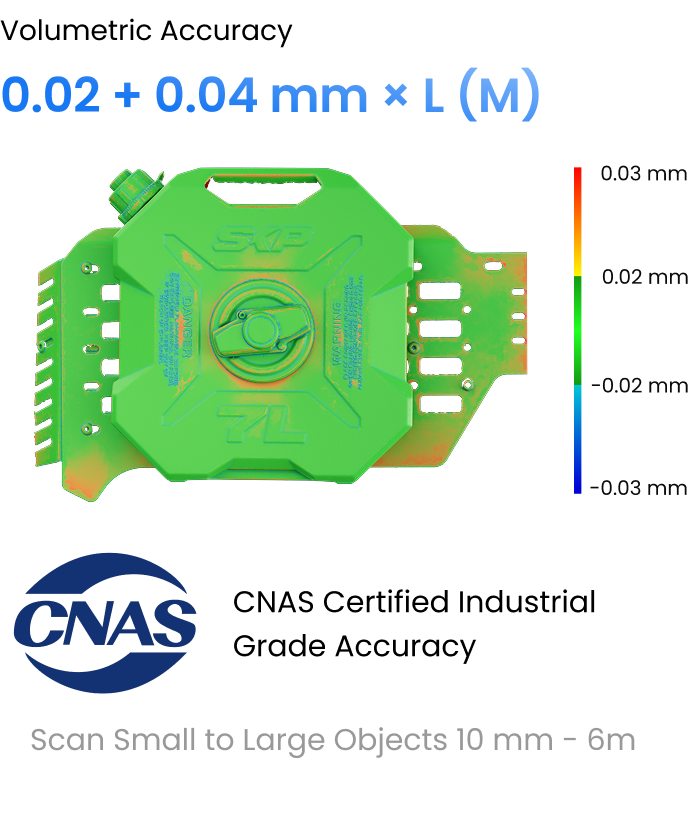

Volumetric Accuracy (Tracking system)

0.02 mm + 0.04 mm × L (m)

Working Distance

1500 - 4000 mm

Minimum Tracking Frame

1304 × 1067 mm @ 1500 mm

Maximum Tracking Frame

3260 × 2845 mm @ 4000 mm

Tracking Volume

11 m³

Weight

2.0 kg

Dimensions (L × W × H)

686 × 106 × 111 mm

Tracking Band

Infrared

User Recalibration

Auto Calibration Tracker has an auto gimbal calibration system. The scanner requires manual calibration.

Supported Accessories

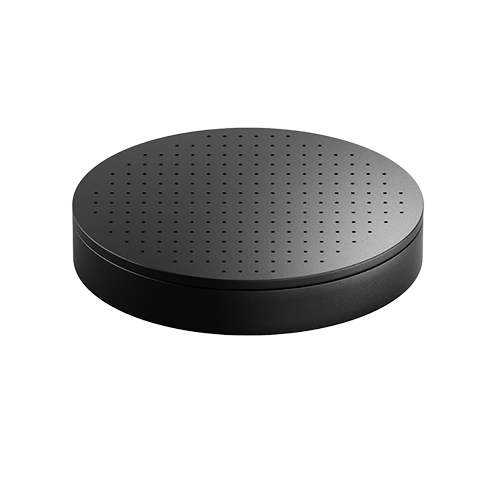

Calibration Board, Calibration Pole, Auto Calibration Dual-axis Gimbal, Anchor Block, Large Turntable

Note:
① Accuracy was acquired in a controlled lab environment. Actual results might vary, subject to the operating environment.
② Class 1 Laser Safety Tips:
1) The product uses a Class 1 laser projector. Avoid looking directly at it at close range! Please refer to the Class 1 laser standard document for details.
2) To avoid retina damage, don't look directly into the laser beam through optical instruments capable of magnifying it (e.g., telescopes and camera lenses).
3) To prevent laser reflection, avoid placing reflective surfaces like mirrors or glass in the path of the laser beam.
③ To ensure accuracy, it's recommended to use the product within an environmental temperature range of 20℃ to 25℃ (68℉ to 77℉).
④ This product has flashing lights, which may not be suitable for people with photosensitive epilepsy.
