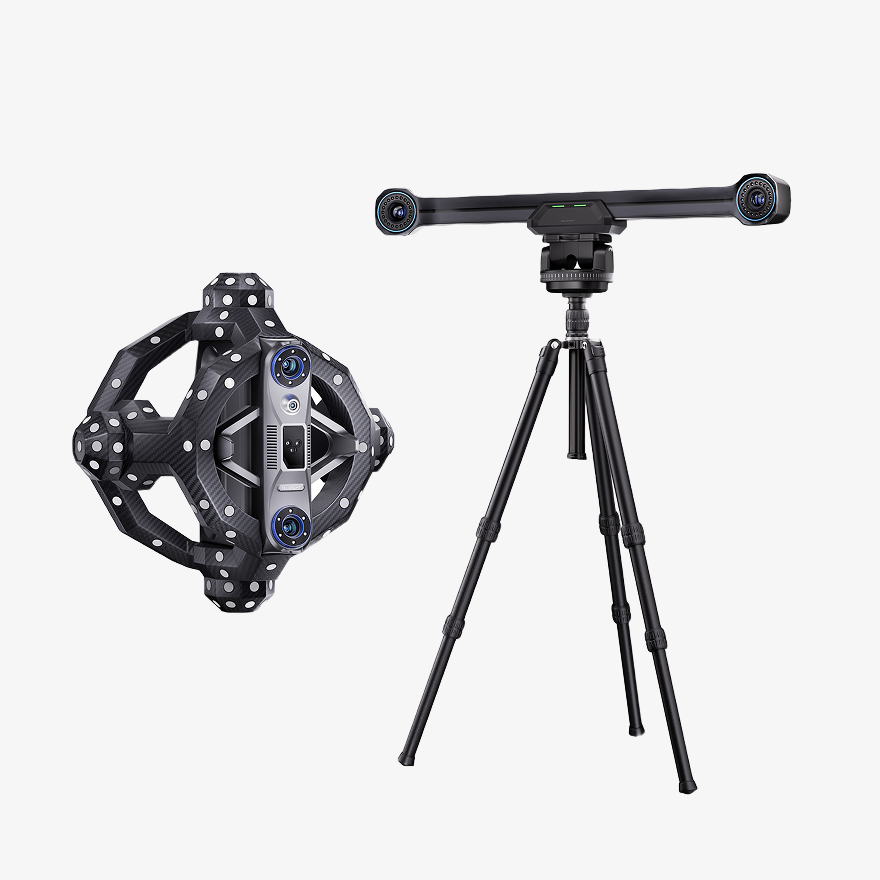

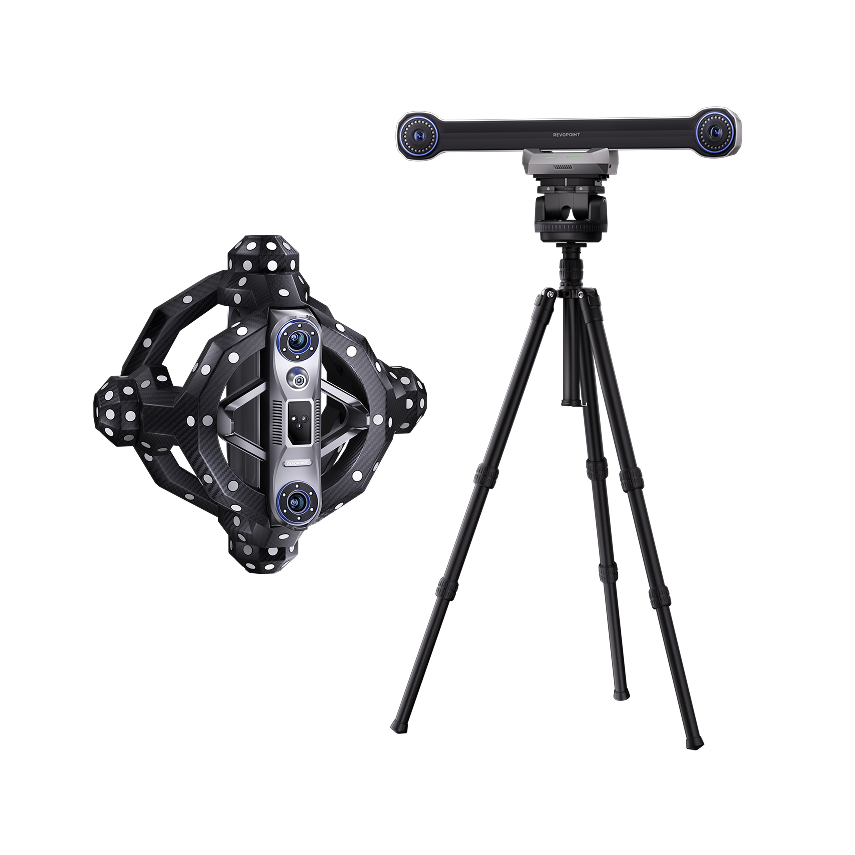

Trackit is Revopoint's latest Tracking 3D Scanner. It features a high-accuracy 3D scanner and an optical tracker unit tailored for fine-detail scanning and measurement in industrial applications. The Trackit system enables rapid acquisition of 3D point clouds for both small and large objects, all without the need for marker preparation.

(1) 30 Blue Cross Laser Lines: Provides high-precision and high-efficiency scanning of surface areas, including direct scanning of black, reflective, and metallic ones.

(2) 1 Blue Single Laser Line: Projects single high-quality blue laser line, making it suitable for fine scanning of narrow areas, such as deep holes and grooves, to ensure complete capture of complex structures.

No, Trackit's 3D Scanner and Tracker optical tracking base station do not have built-in batteries and require a power adapter for power supply.
No, the Scanner can only connect to a PC via a USB 3.0 cable.

Trackit has built-in high-sensitivity temperature sensors that monitor fluctuations in real time. The software features a temperature visualization interface, displaying the current status of the Tracker and Scanner. It provides indicators to show if the devices are operating optimally, preventing temperature-induced accuracy drift and ensuring high 3D scanning precision.

Yes, Revo Track offers various file formats compatible with most design software, such as QUICKSURFACE, Geomagic, PolyWorks, Blender, Maya, Rhino, ZBrush, Fusion 360, etc.
Point Cloud model: PLY, OBJ, ASC
Mesh model: PLY, OBJ, STL, FBX, GLTF, 3MF
Texture model: PLY, OBJ, FBX, GLTF

Minimum PC Requirements:
System Version: Windows 10/11 (64-bit)
RAM: ≥ 32 GB
CPU: Intel i7 13th Gen or better/AMD Ryzen 7 above the 7000 series
GPU: NVIDIA GeForce RTX 3060 (8 GB)

Recommended PC Requirements
System Version: Windows 10/11 (64-bit)
RAM: ≥ 64 GB
CPU: Intel i9 12th Gen or better
GPU: NVIDIA RTX 4060 (8 GB) or better

The Scanner can solely perform high-accuracy scans of small and medium-sized objects. This mode requires attaching markers. It should be noted that when using the scanner independently, it still requires power supply and data transmission through the Tracker.

Short exposure of class 1 lasers are generally safe for human eye ; however, it is still not recommended to scan human faces in any mode, as direct laser exposure to the eyes may cause discomfort and potential risks. Scanning other parts of the body (excluding the face) within the normal working distance is safe, and the software provides real-time distance guidance.

To perfectly scan a face or body, Revopoint MIRACO Pro, POP 3 Plus is the best option.

Class 1 lasers are generally safe for human eye observation. Trackit can be used to scan animals, but avoid direct exposure to the animal's face and eyes to prevent any adverse reactions.

Sensitive electronic components will not be harmed if they are kept at least 200 mm away. It is important to ensure that the components are not positioned directly next to the scanner's laser outlet, as this area has a high energy density from laser emissions.

For optimal accuracy, we recommend operating the device in a temperature range of 20°C and 25°C (68°F to 77°F).

Calibration is divided into two parts: the tracking system and the scanner. Users can perform fully automatic calibration of the tracking system using the software provided with the device and the dual-axis gimbal. The scanner requires manual calibration. Please refer to the Trackit Quick Start Guide or visit our official YouTube account, “Revopoint 3D,” to watch the calibration tutorial video.

Chinese, Traditional Chinese, Japanese, Korean, English, French, German, Italian, Spanish, Russian, Portuguese, and Turkish
