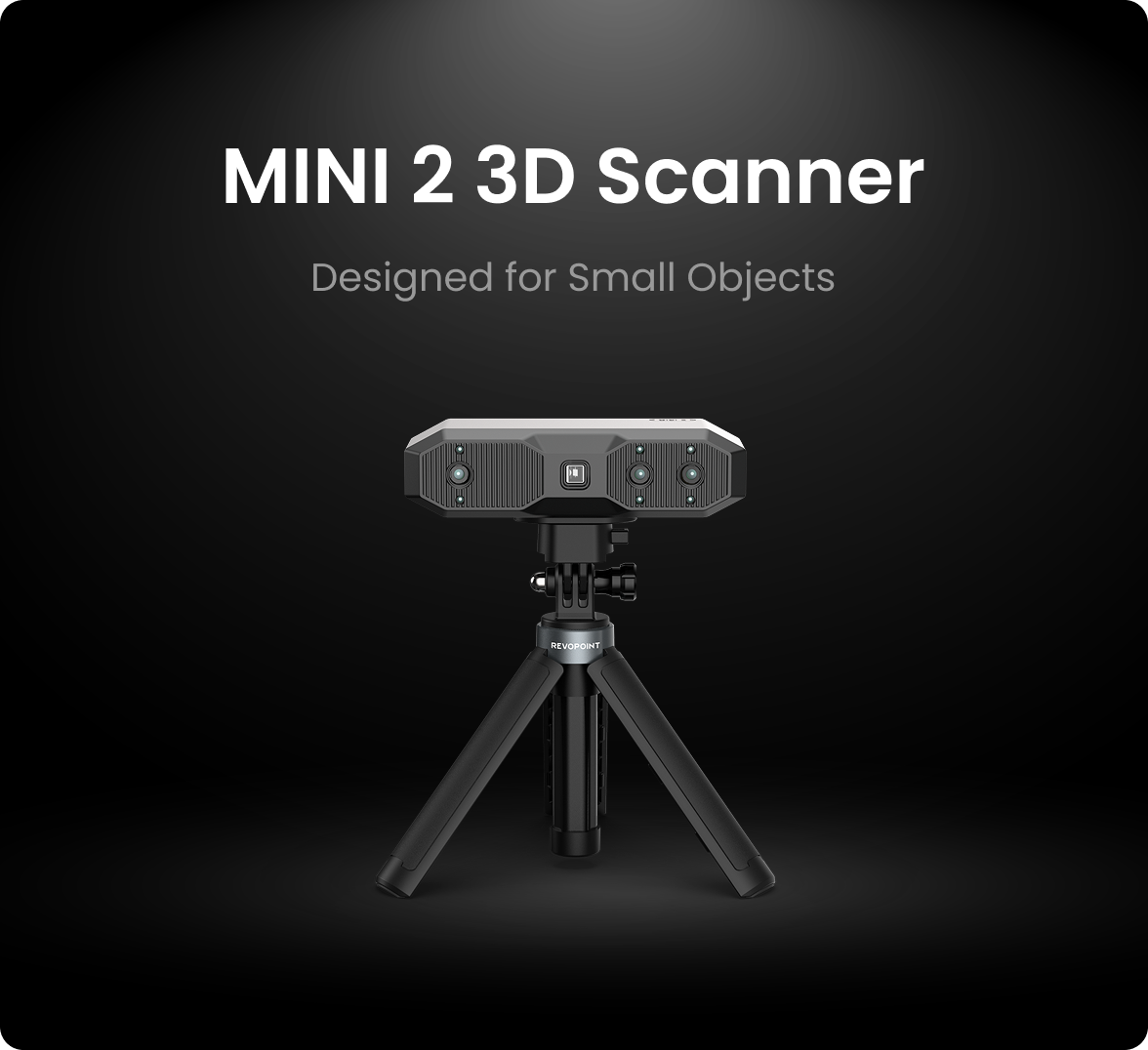

MINI 2 3D Scanner
Overview

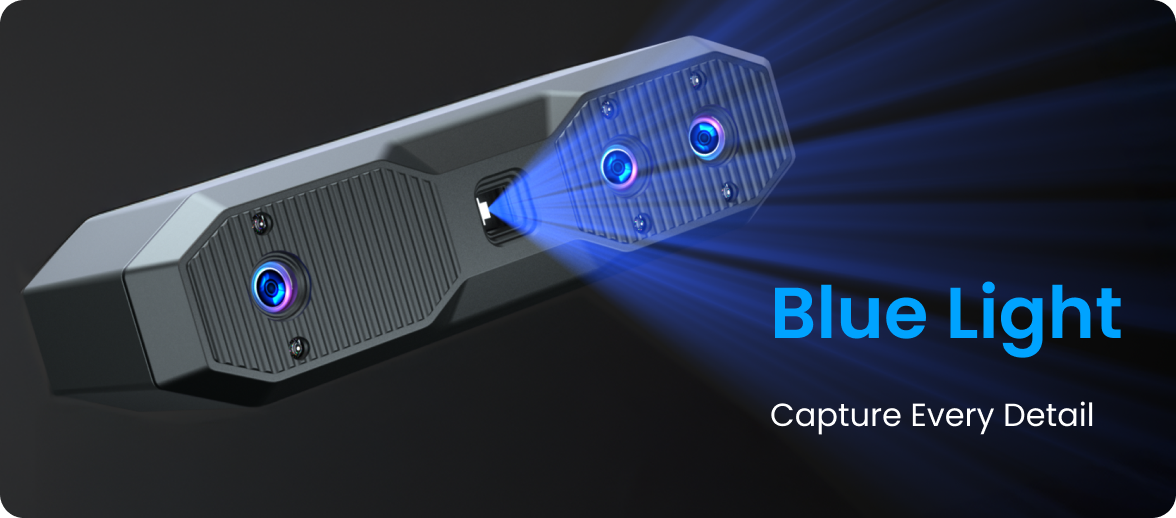

Total Precision

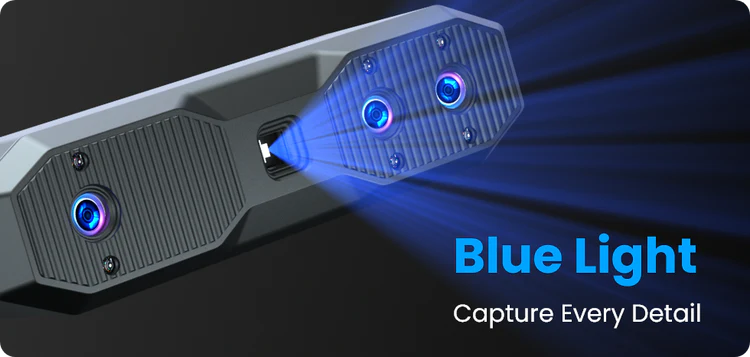

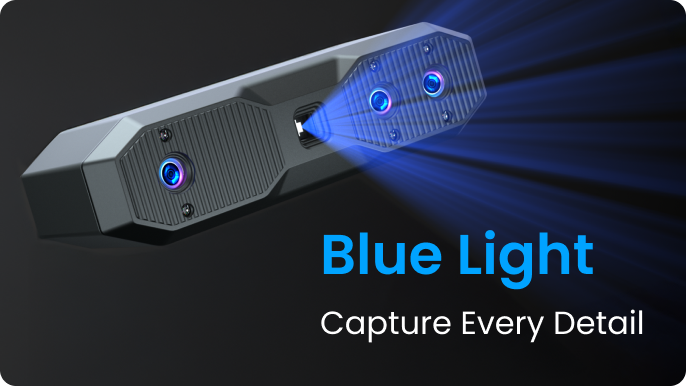

When repeatability matters, MINI 2 is ready with its ultra-high resolution blue light technology to consistently capture objects with a single-frame precision of up to 0.02 mm.

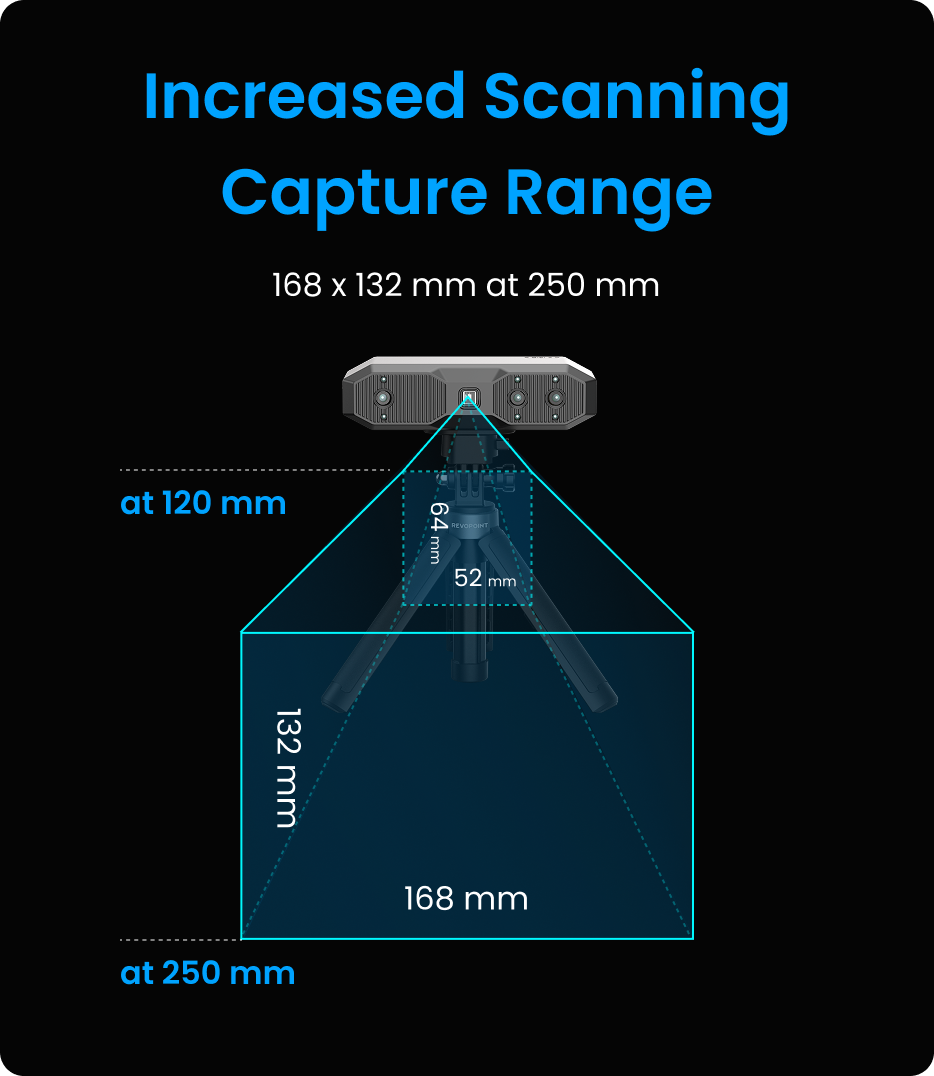

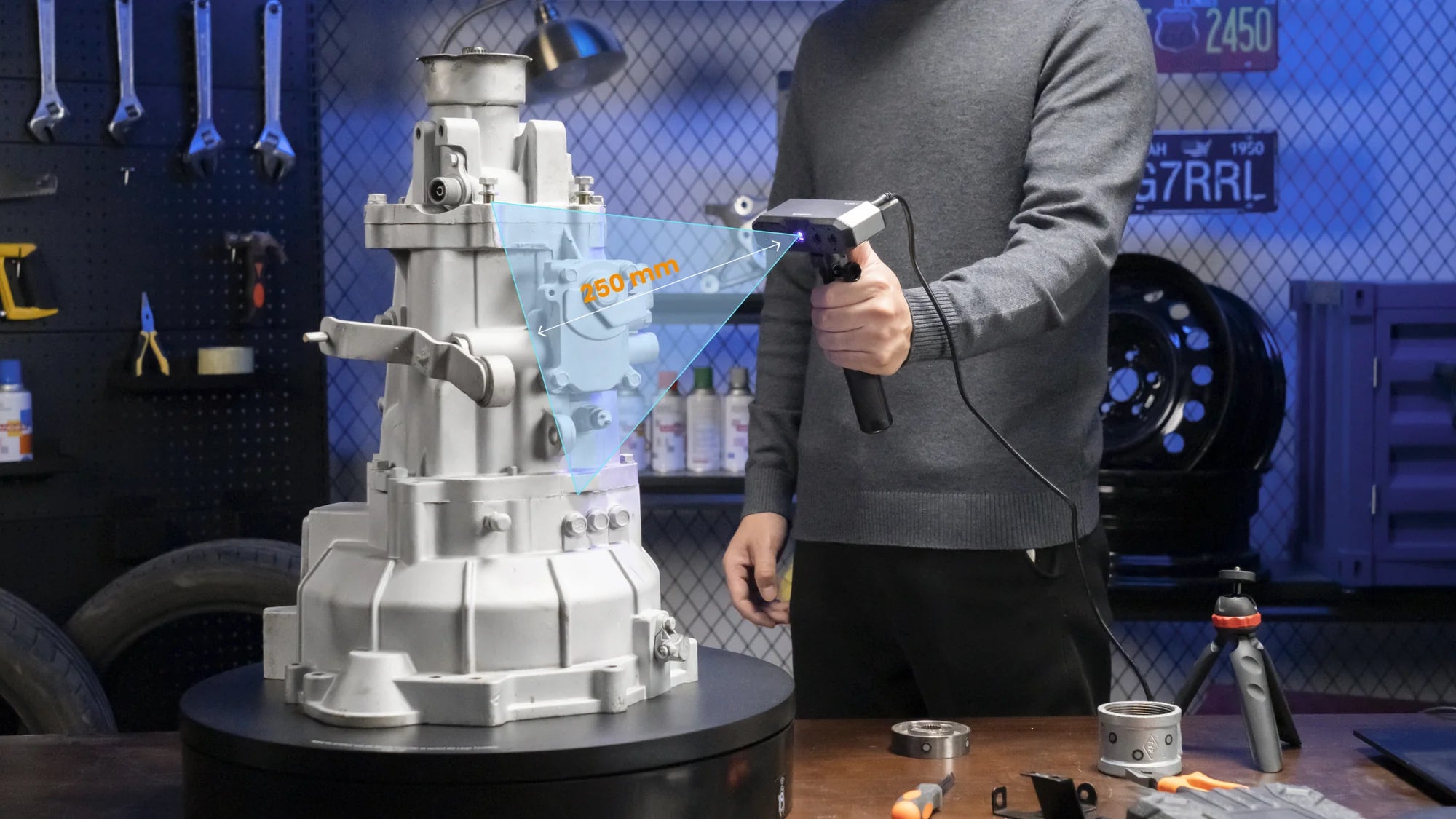

Extended Single Capture Range
Enjoy better tracking and faster scans with MINI 2's bigger working distance of 120 - 250 mm and 168 x 132 mm single capture range, streamlining the scanning process.

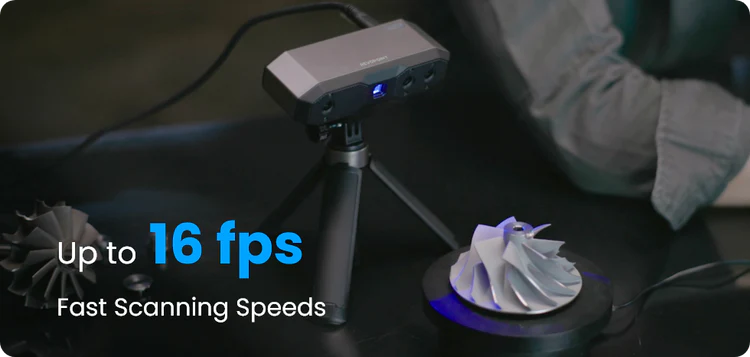

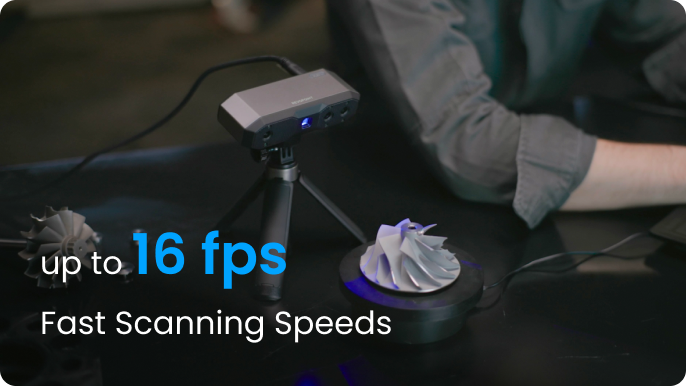

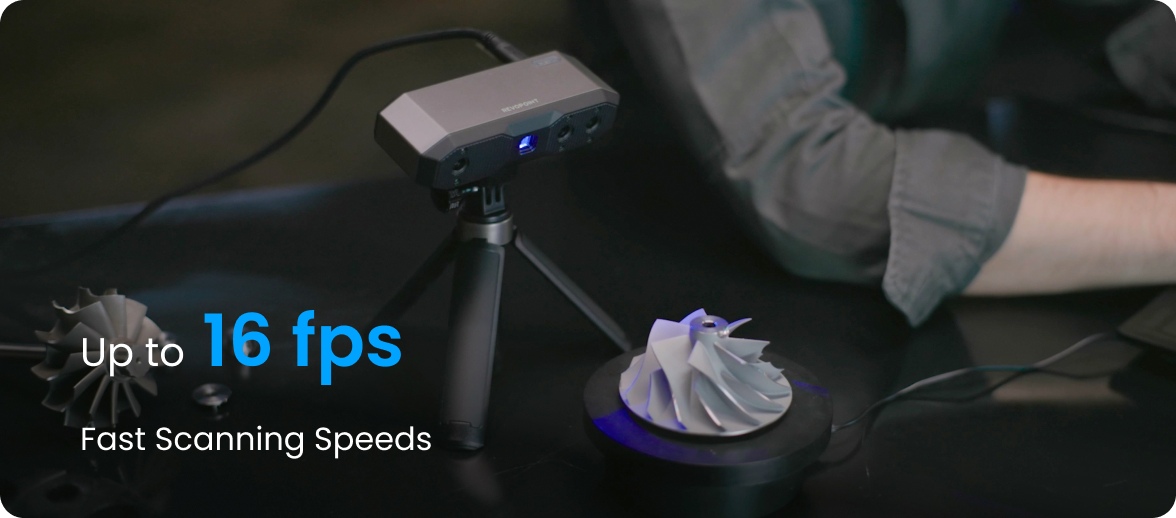

Fast 16 fps Scanning Speeds
Jumpstart your projects by creating ultra-detailed 3D models in seconds with MINI 2's fast scanning speeds of up to 16 frames per second.
Uniform Color Scans
Capture crispier, more uniform color scans with MINI 2's new higher-resolution RGB camera and Flash LEDs to evenly light objects and remove shadows.
Resolution
2 Megapixels
Depth-camera
RGB-camera
IMU Stabilization
Experience improved tracking and frame stitching with MINI 2’s advanced 9-axis IMU, eliminating faulty frames caused by sudden movement or unsteady hands.
CPU
2 core
1.8 GHz
Position Sensors
9-axis IMU
Faster Connectivity
Get lower latency and more stable mobile scanning with MINI 2's new Wi-Fi 6 connection and plug-and-play setup with its USB Type-C connection.
High-Performance Software
Revo Scan 5 is your portal to intuitive 3D scanning and powerful editing. And it runs on nearly everything, with full support for iOS, Android, Windows, and macOS devices. Export your models in STL, PLY, or OBJ formats for compatibility with most CAD, 3D modeling, and slicer software.
Revo Scan 5
Integrates model scanning, post-processing, and multi-model alignment functionalities
Models Made With MINI 2
Click to Explore
Applications

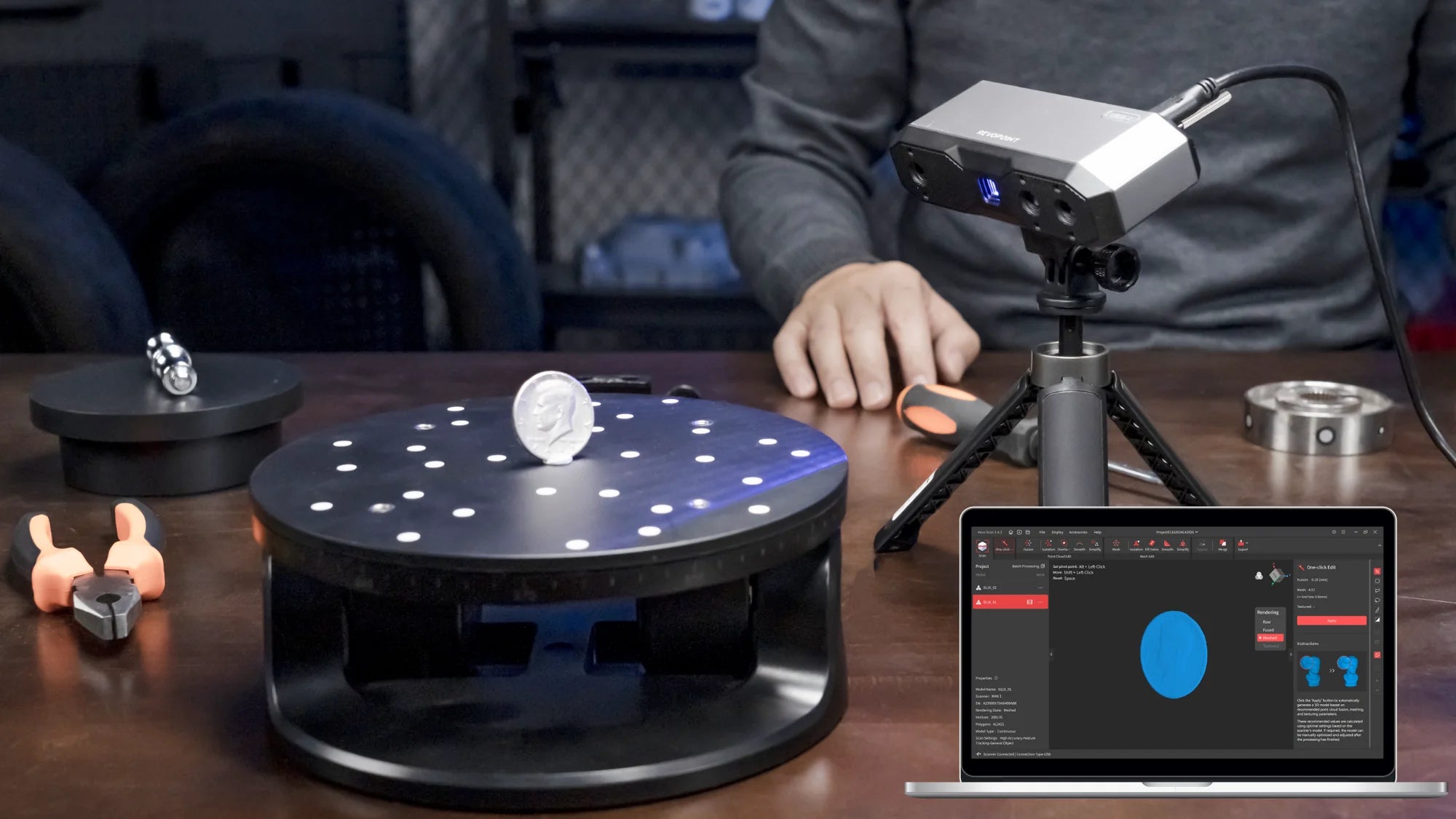

Quality Control
Speed up projects and production by reliably capturing every dimension, surface flaw, and imperfection with clarity.
Customized Healthcare
Quickly capture dental molds or ear canals to create perfectly fitting customized healthcare solutions.

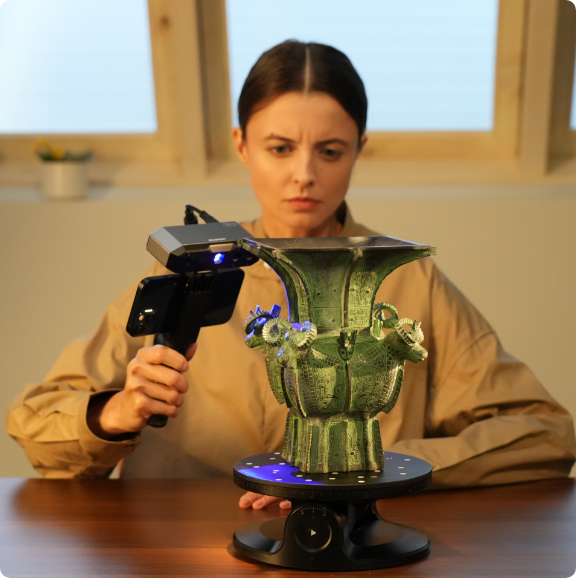

Digitizing History
Capture historical items' intricate details and color for restoration, preservation, or digital exhibitions.
Detailed Design
Create ready-to-use 3D models from organic shapes like flowers or shells for your design projects with no complex 3D modeling needed.
What's in the Box?

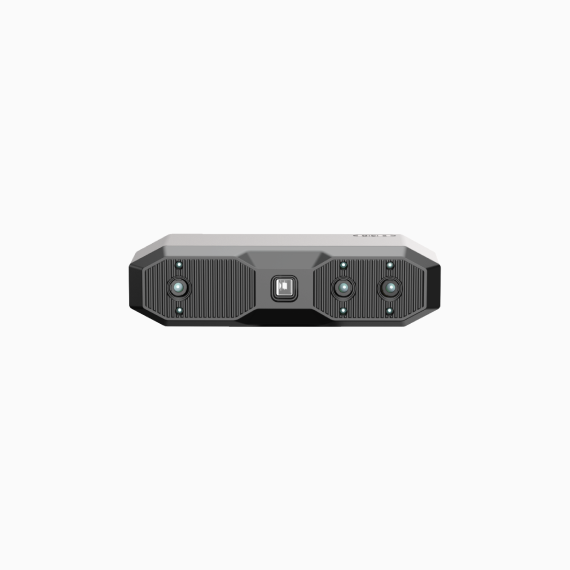

MINI 2 3D Scanner

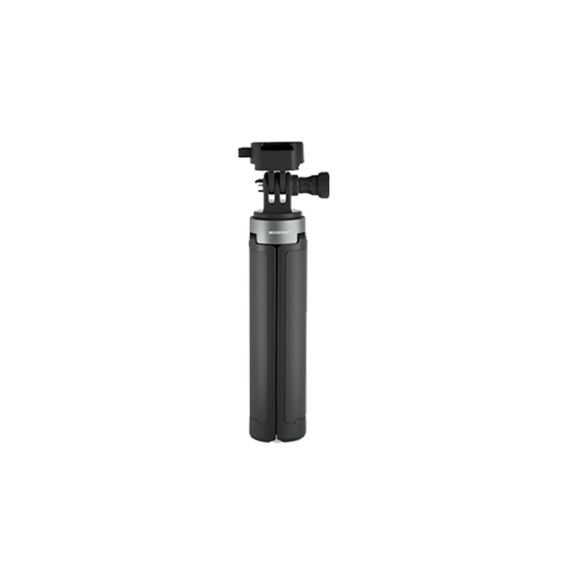

Tripod

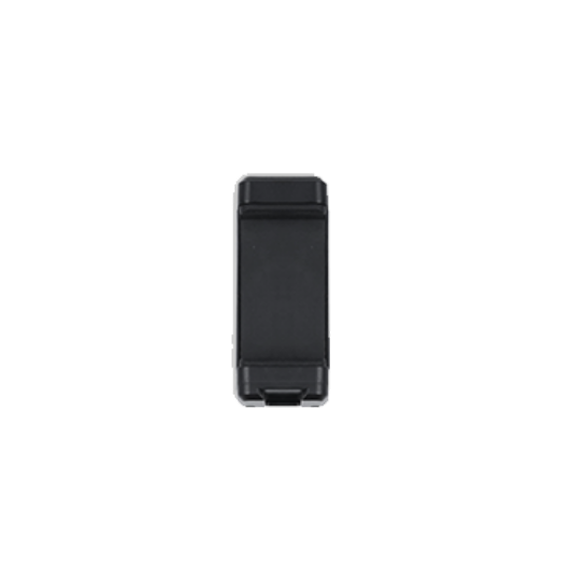

Phone Holder

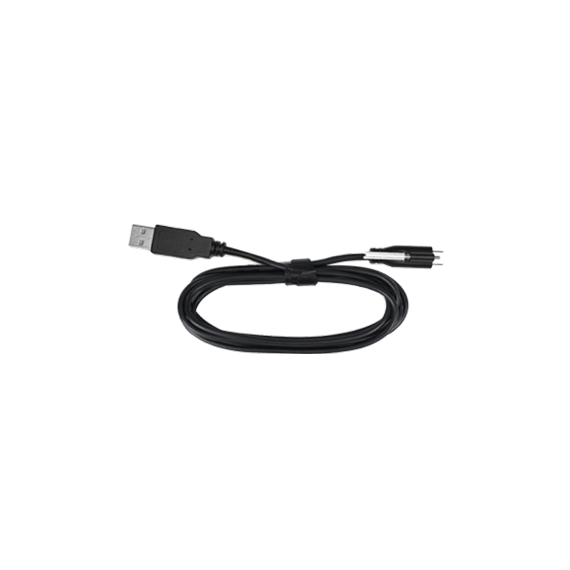

USB Type-A to C Cable

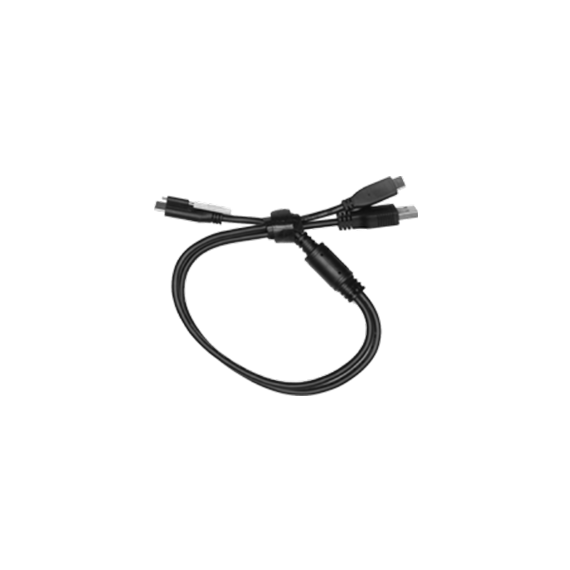

2-in-1 Mobile Cable

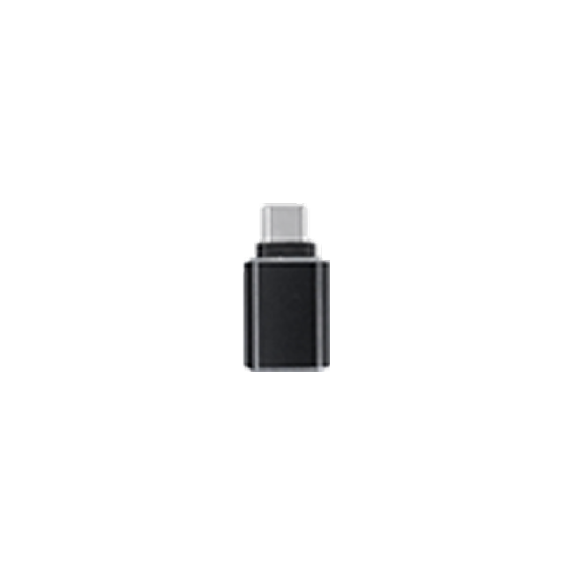

USB Type-C Adapter
Mini Turntable

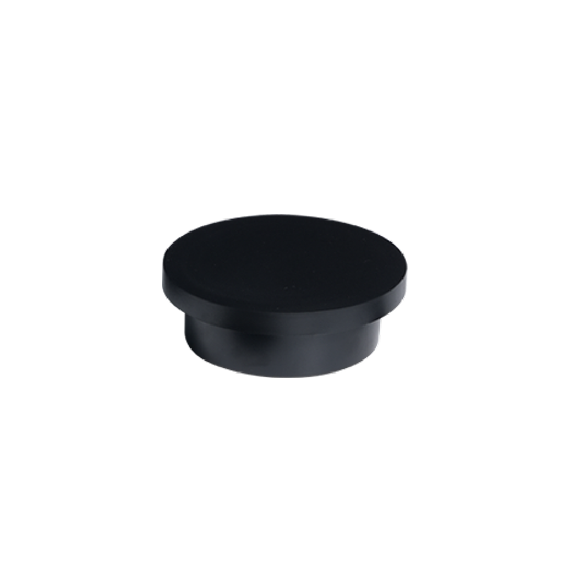

Turntable Topper

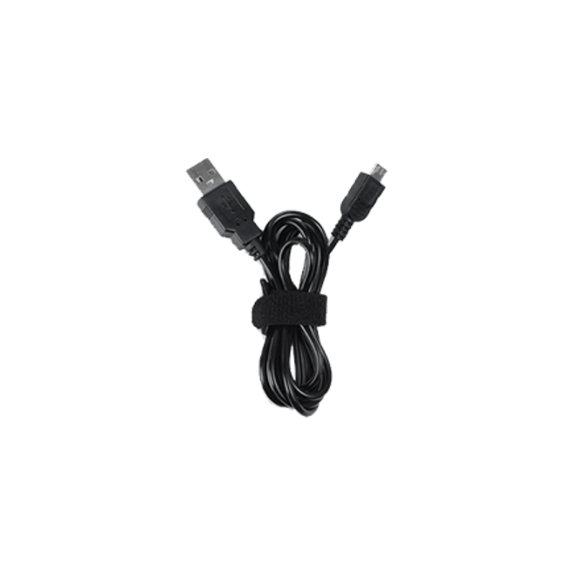

Turntable Power Cable
Carrying Case

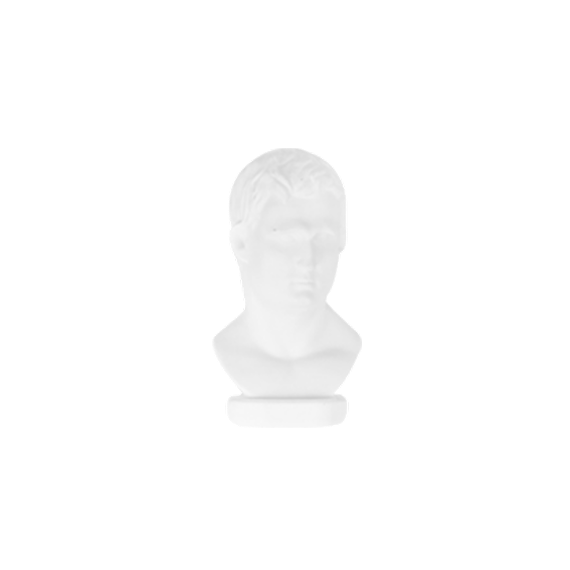

Agrippa
Magic Mat

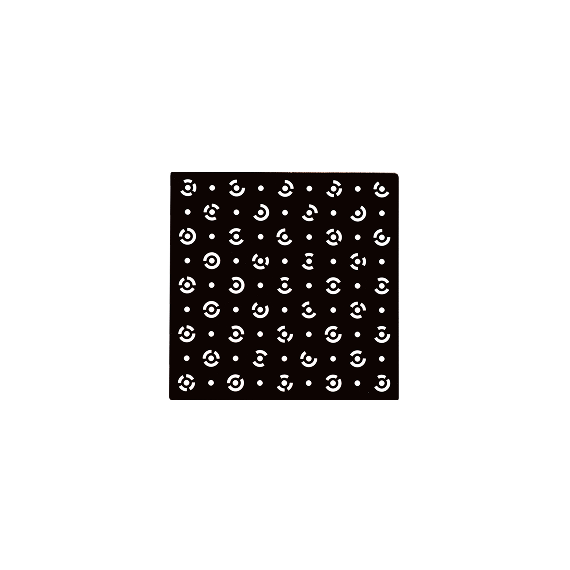

Caliberation Board

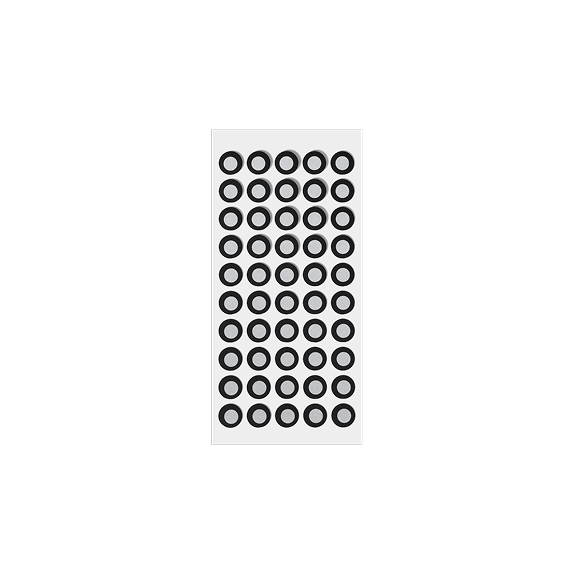

Markers

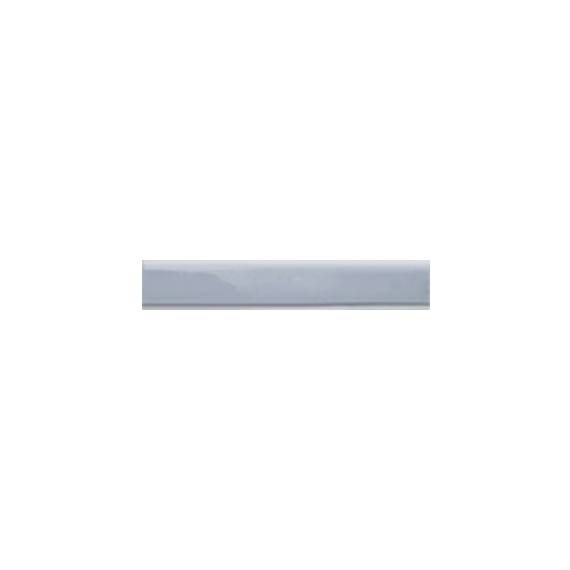

Glue Tack

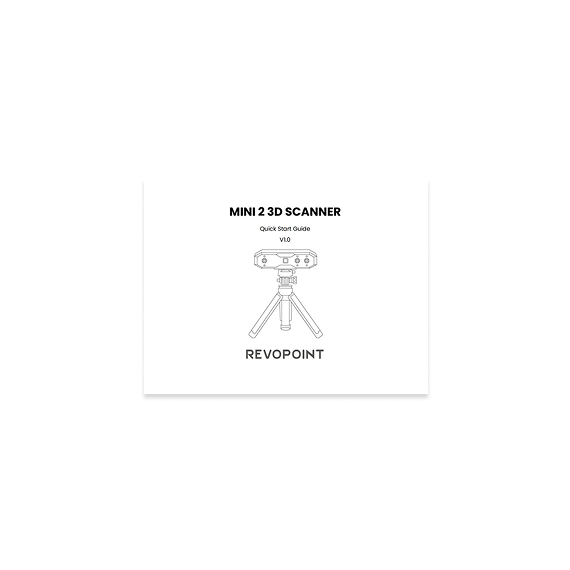

Quick Start Guide
Certificate &Warranty Card
MINI 2 3D Scanner
Tripod
Phone Holder
USB Type-A to C Cable
2-in-1 Mobile Cable
USB Type-C Adapter
Mini Turntable

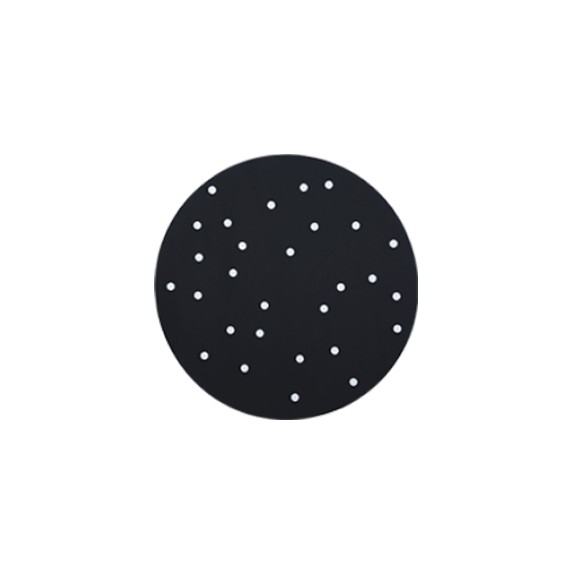

Turntable Topper
Turntable Power Cable

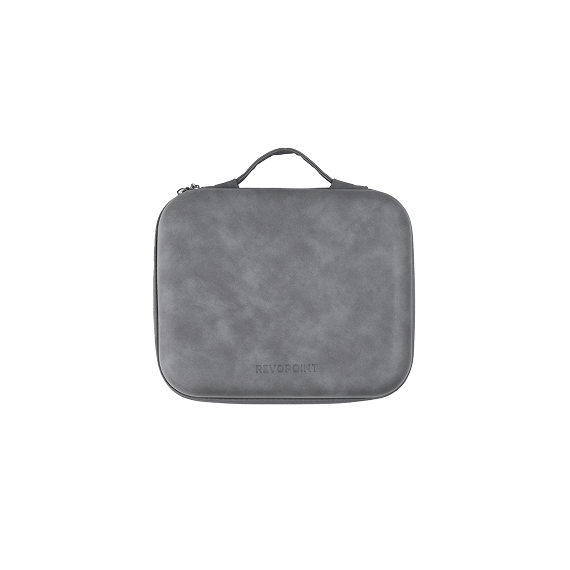

Carrying Case
Agrippa
Magic Mat
Caliberation Board
Markers
Glue Tack
Quick Start Guide
Certificate &Warranty Card

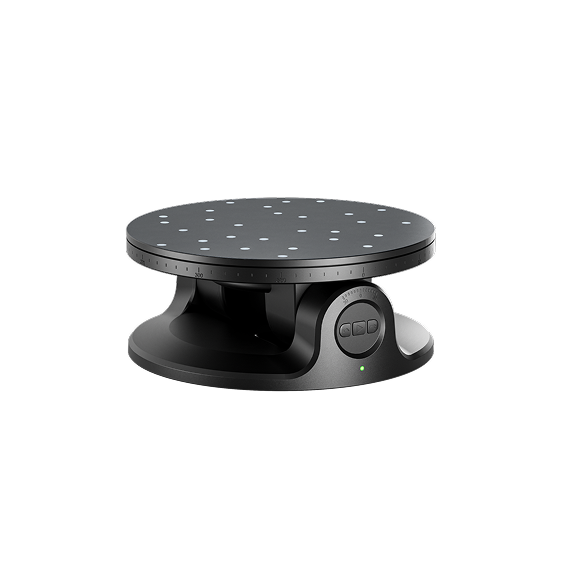

Dual-axis Turntable
Top Accessories

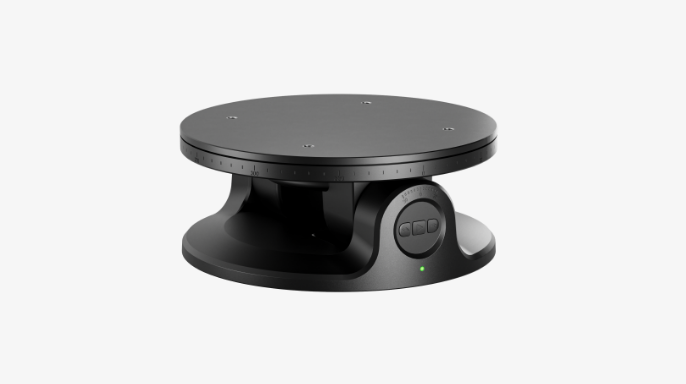

Dual-axis Turntable
Simplify the scanning process and eliminate the need for object repositioning during scanning with the Dual-axis Turntable's adjustable speed, rotation, 30° tilt, and 5 kg max load.
Power Bank Kit
Clip this helpful Handheld Power Bank onto the bottom of your MINI 2 for up to 4 hours of conveniently powered mobile scanning. The package includes a Power Bank Handle and the 2-in-1 Mobile Cable.
Specifications
Product Name
Revopoint MINI 2
Depth Camera Resolution, up to
2 Megapixels
Technology
Dual-camera Blue Structured Light
RGB Camera Resolution
2 Megapixels
Single-frame Precision
Up to 0.02 mm
Outdoor Scanning
No
Single-frame Accuracy
Up to 0.05 mm
Color Scanning
Yes
Single Capture Area at Nearest Distance
52 x 64 mm at 120 mm
Scanner Weight
175 g
Single Capture Area at Furthest Distance
168 x 132 mm at 250 mm
Dimensions (L x W x H)
132 x 53 x 36 mm
Working Distance
120 - 250 mm
3D Printing Compatible
Yes
Point Distance
Up to 0.02 mm
Compatible Systems
Window 10/11 (64-bit), Android,
iOS, macOS
Minimum Scan Volume
10 x 10 x 10 mm
White Flash LEDs
Yes
Scanning Speed
Up to 16 fps
CPU
2 core, 1.8 GHz
Position Sensors
9-axis IMU
Wi-Fi
Wi-Fi 6
Light Source
Class 1 Blue Light
Connector Type
USB Type-C
Tracking Methods
Feature/Marker
User Recalibration
Yes
Output Formats
PLY, OBJ, and STL
Special Object Scanning
Use scanning spray for transparent,
dark, or highly reflective objects.
PC Requirements (macOS)
RAM: ≥8GB
CPU (or better):
M1 Pro/M1 Max/M1 Ultra
M2/M2 Pro/M2 Max/M2 Ultra
M3/M3 Pro/M3 Max
PC Requirements (Windows)
RAM: ≥16GB
CPU (or better):
i5 12th/13th/14th
i7 12th/13th/14th
i9 all series
