Working Distance
300mm - 800mm
Single-frame Precision
Up to 0.1mm
Single Capture Range
360mm x 650mm@600mm
Scanning Speed
Up to 18fps
Working Distance
300mm - 800mm
Single-frame Precision
Up to 0.1mm
Single Capture Range
360mm x 650mm@600mm
Scanning Speed
Up to 18fps
Single Capture Range
Working Distance
With a scanning speed of up to 18 frames per second, you can move the RANGE naturally and smoothly as you scan. And the integration of a self-developed chip and new advanced algorithms allows for even smoother frame stitching for increased scanning efficiency.
Scanning Speed of
With a scanning speed of up to 18 frames per second, you can move the RANGE naturally and smoothly as you scan. And the integration of a self-developed chip and new advanced algorithms allows for even smoother frame stitching for increased scanning efficiency.
Scanning Speed of

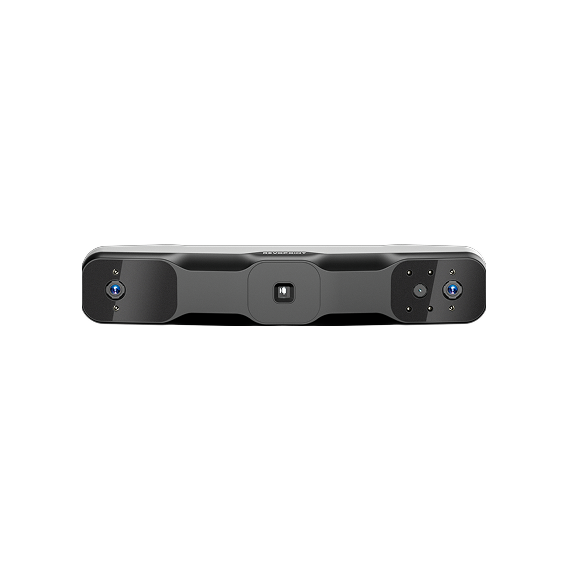

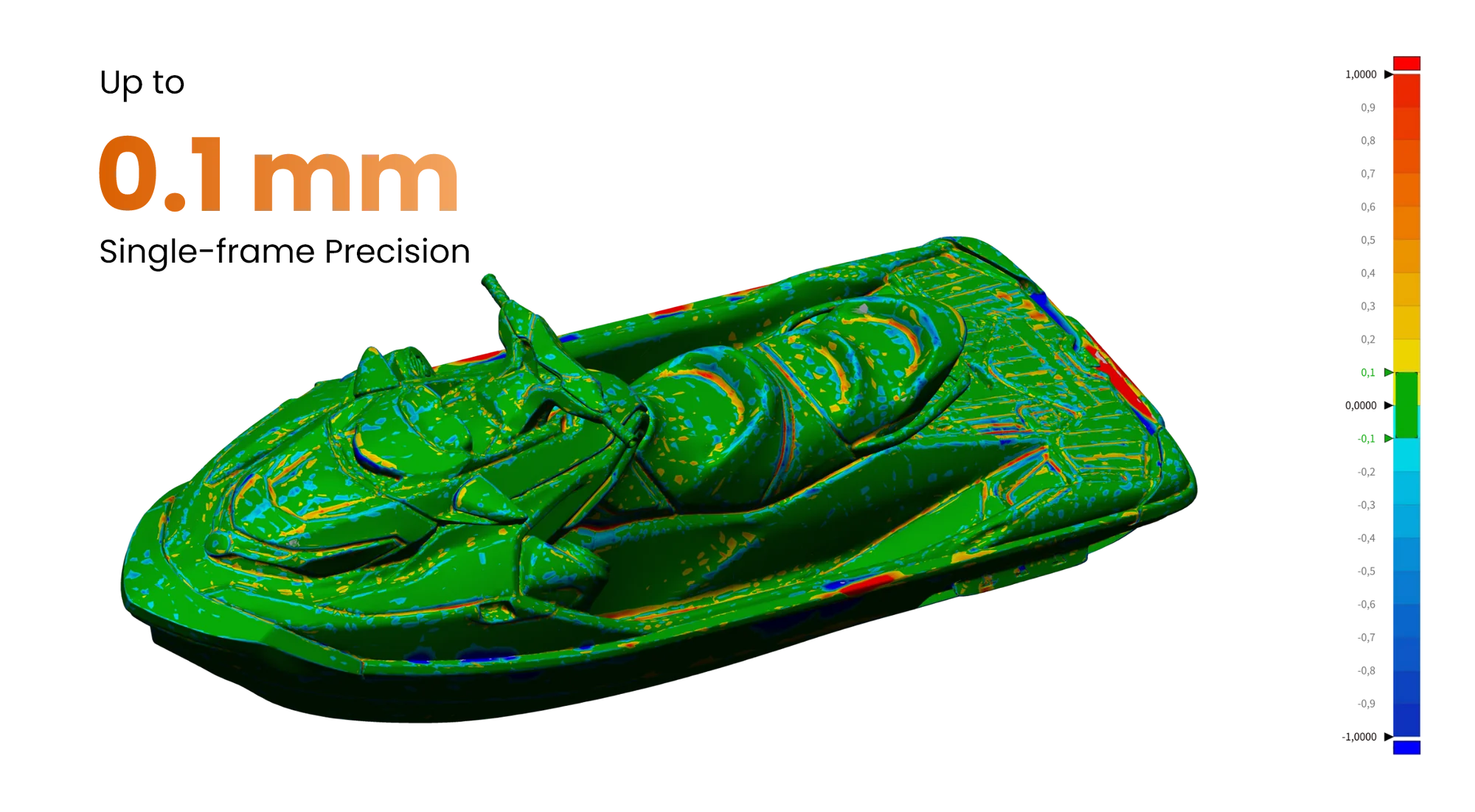

With a single-frame precision of up to 0.1mm and a point distance of up to 0.3mm, the RANGE's new dual IR cameras with aspheric lenses reduce image aberrations and ensure that the micro-structured infrared light evenly reaches the sensors.

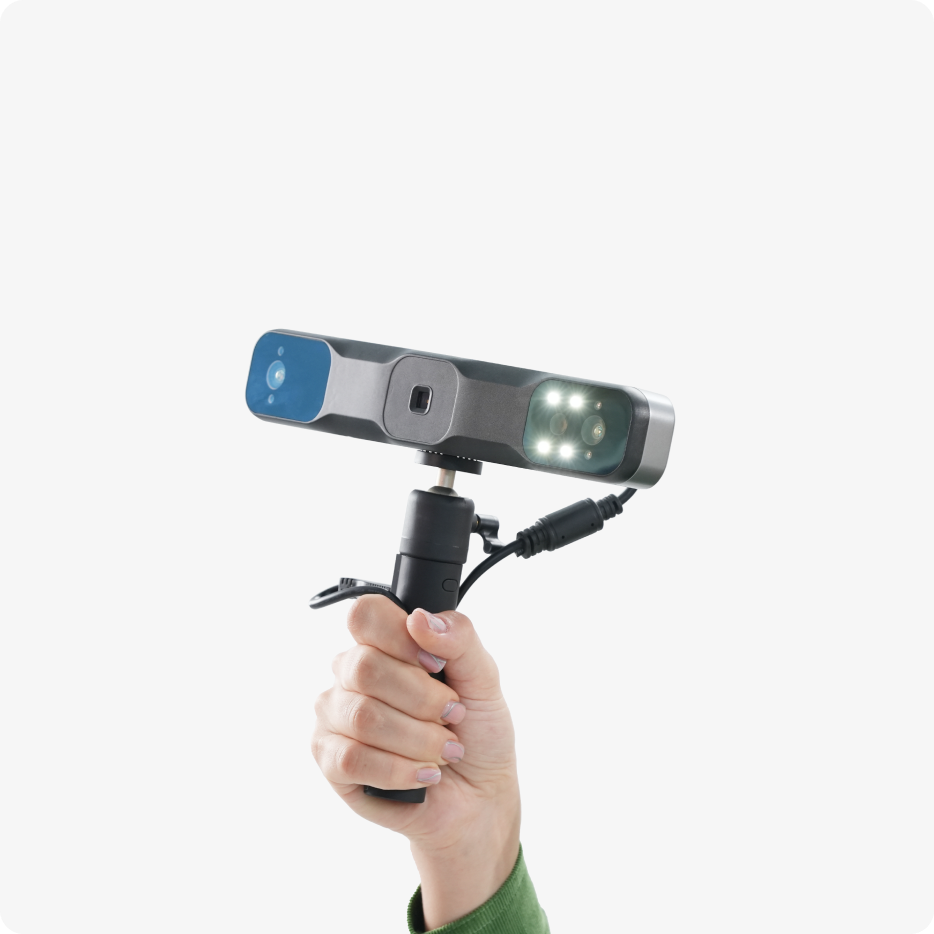

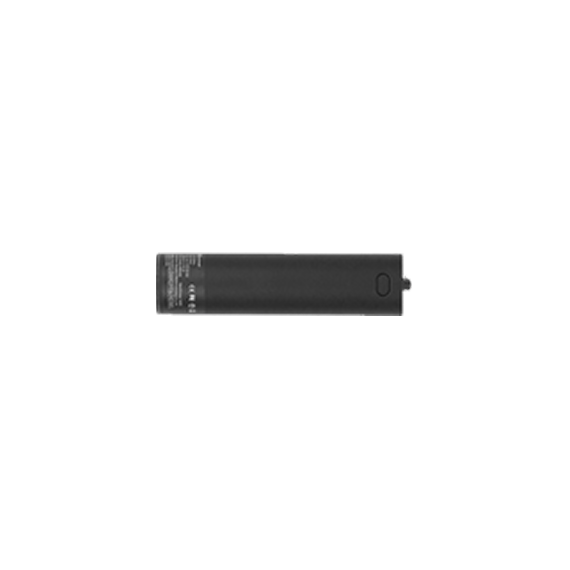

Enjoy total handheld scanning freedom with the Power Bank Handle powering RANGE for up to 2 hours. And with the detachable tripod, the RANGE can seamlessly swap between being a turntable scanner or a fully portable handheld scanner ready for outdoor scanning.
Enjoy total handheld scanning freedom with the Power Bank Handle powering RANGE for up to 2 hours. And with the detachable tripod, the RANGE can seamlessly swap between being a turntable scanner or a fully portable handheld scanner ready for outdoor scanning.
Total handheld scanning freedom for big objects with the handle's built-in power bank can power the RANGE for up to 2 hours. With the Power Bank Handle and smartphone holder, you don't need to worry about cables restricting or getting in the way of your mo
Weighs only 210g

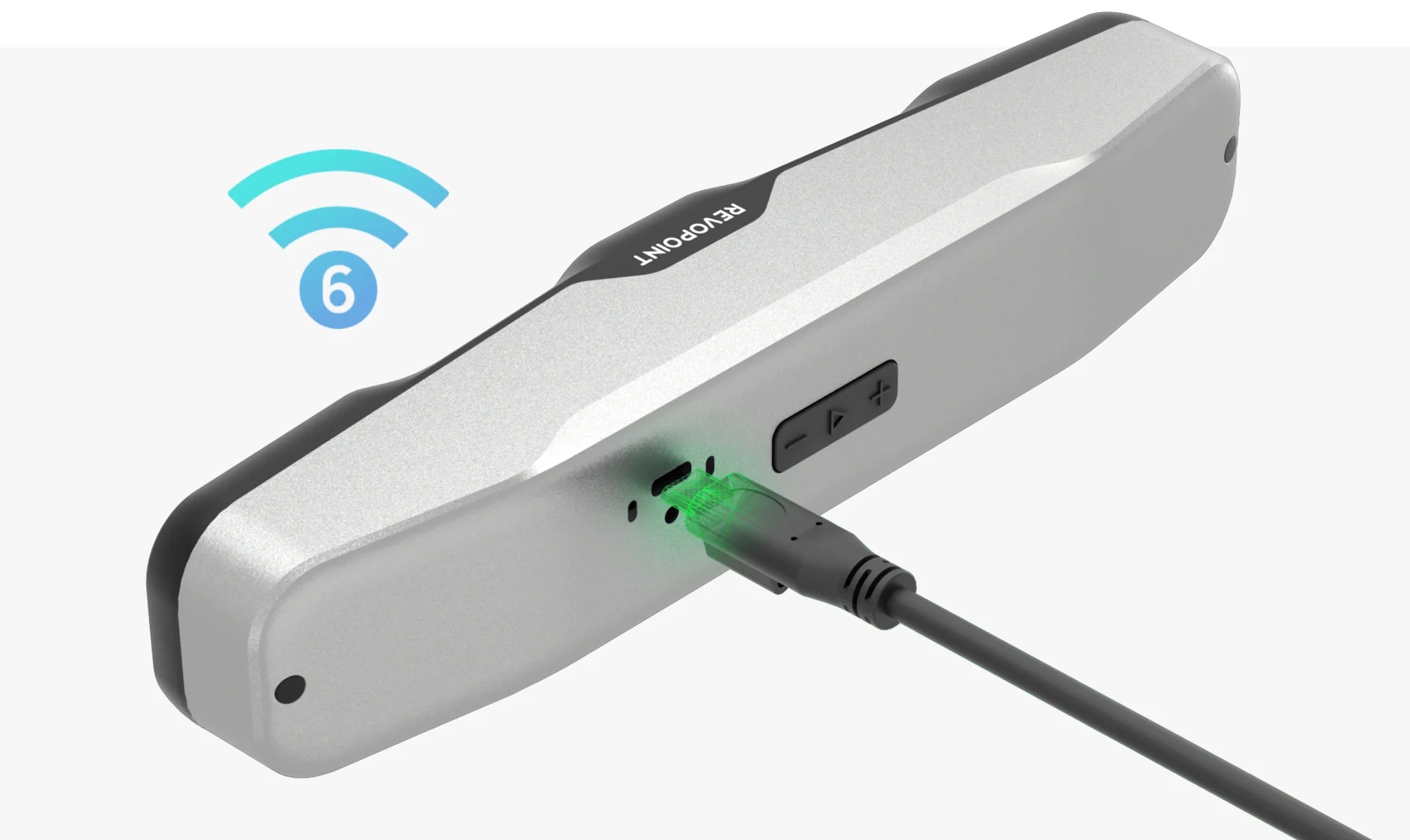

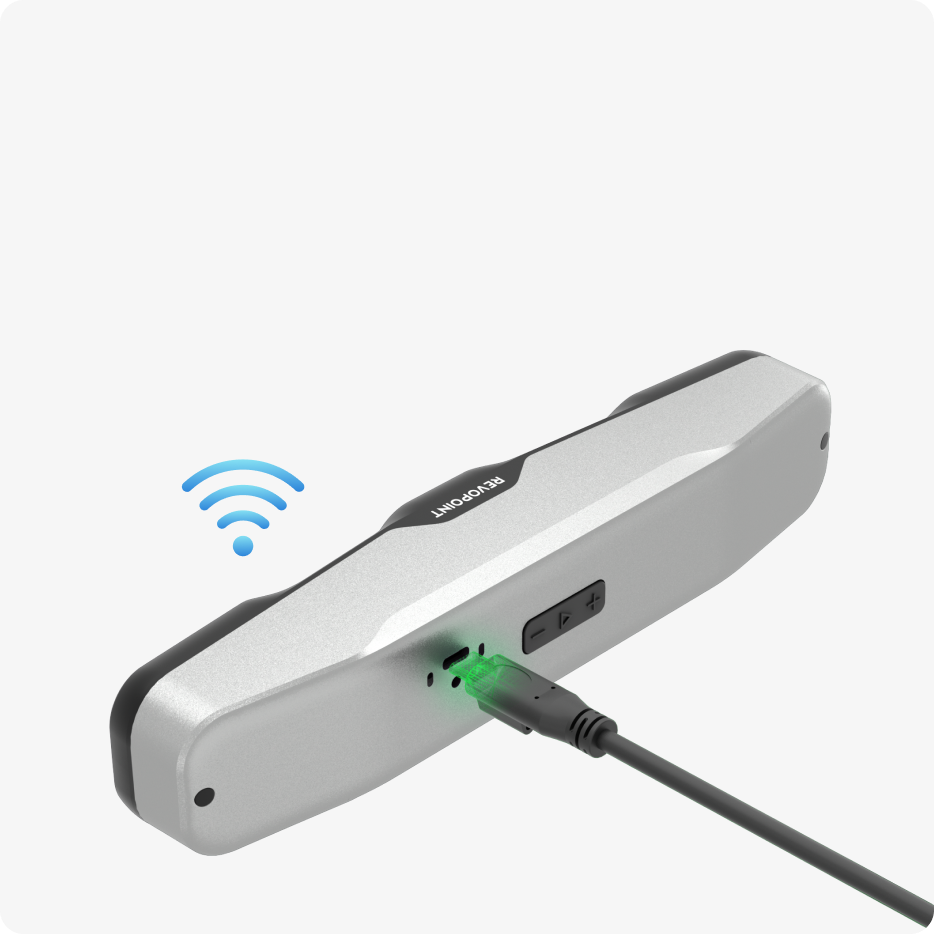

2-in-1 Cable
Compact Design
RANGE’s RGB camera captures an object's color as you scan, ready to be merged with the 3D model after meshing the data to create accurate fully-colored, nearly lifelike 3D models.

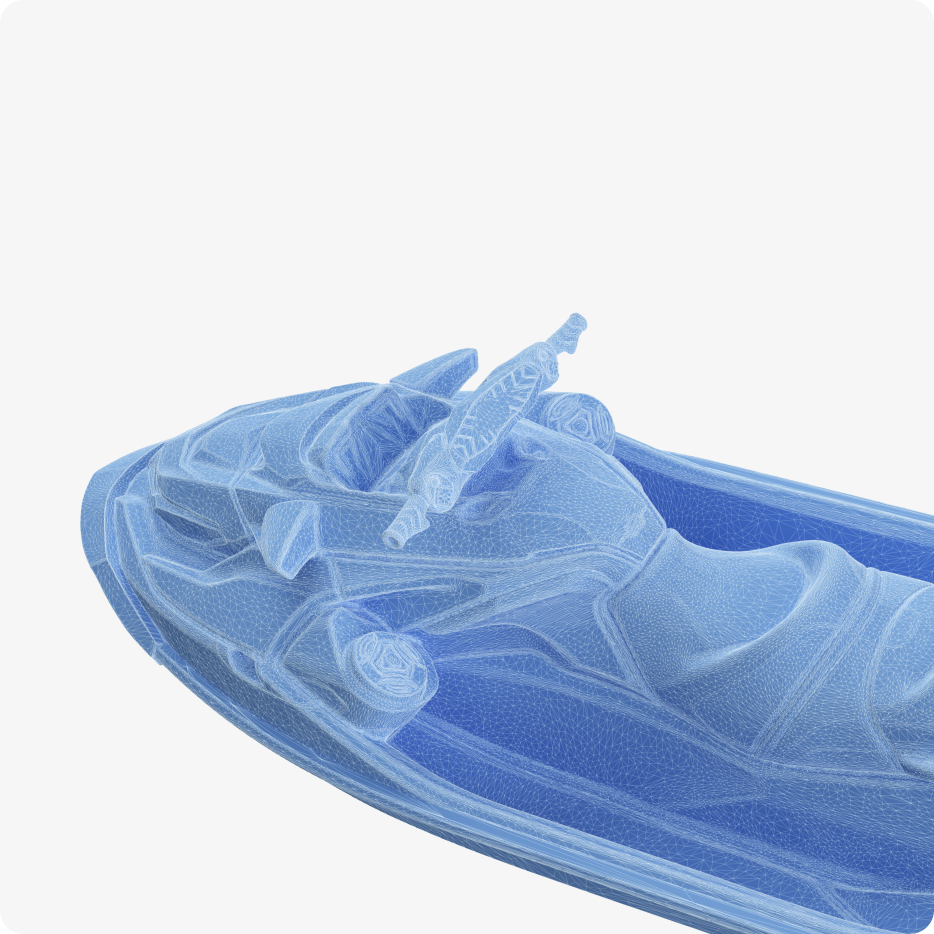

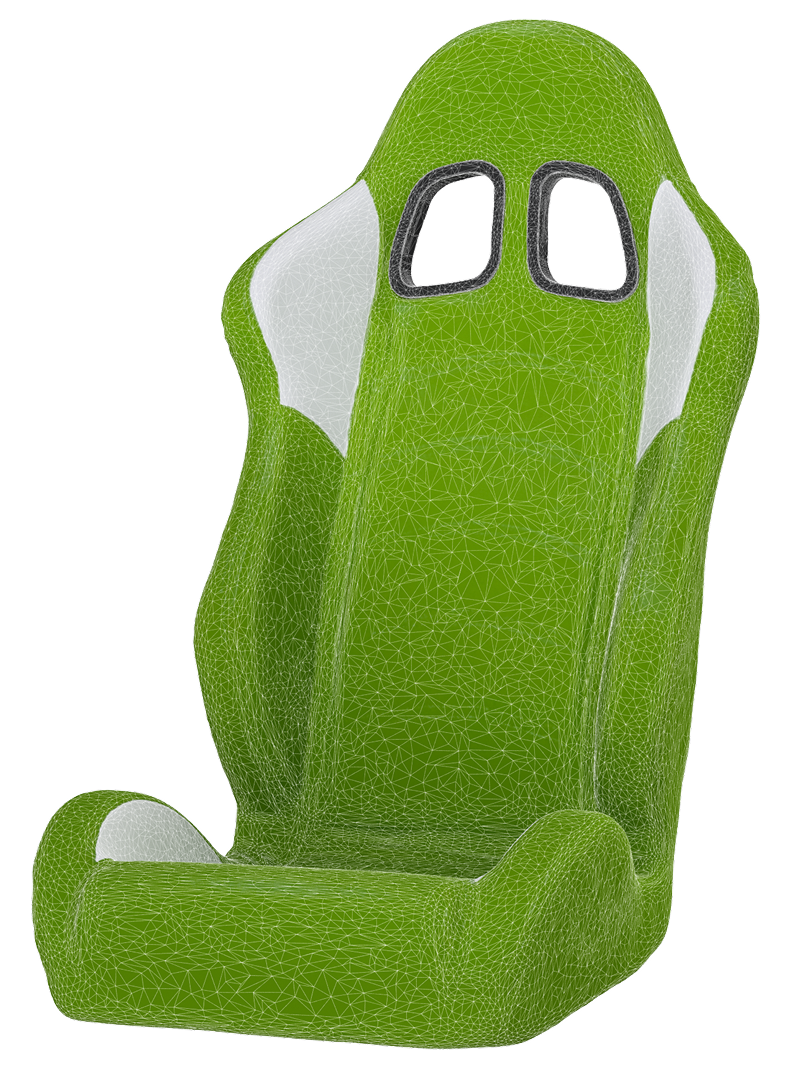

Typically, creating custom or replacement parts for automobiles requires time-consuming manual measurements and modeling to make pieces that fit. But with RANGE, you can quickly capture accurate CAD-ready 3D models even when scanning complicated geometric surfaces.
Typically, creating custom or replacement parts for automobiles requires time-consuming manual measurements and modeling to make pieces that fit. But with RANGE, you can quickly capture accurate CAD-ready 3D models even when scanning complicated geometric surfaces.
Completely capture the exterior, interior, and under the hood of automobiles for modifications like engine conversions, body panel replacements, and repairs.
Completely capture the exterior, interior, and under the hood of automobiles for modifications like engine conversions, body panel replacements, and repairs.
Simplify the creation of full-body 3D models for video games, fashion design, AR, and VR applications with the whole scan done in under two minutes. 3D print a near-lifelike miniature model for a unique gift or wedding cake topper. And with the help of the Large Turntable, you can do it even faster.
Its robust design supports a maximum load of 200kg, and a powerful motor (rated for 3,000 hours of rotation) keeps the turntable spinning smoothly even at max weight and speed (35-90 seconds per rotation). Adjust its speed and rotation on the fly through its remote control or app.
Simplify the creation of full-body 3D models for video games, fashion design, AR, and VR applications with the whole scan done in under two minutes. 3D print a near-lifelike miniature model for a unique gift or wedding cake topper. And with the help of the Large Turntable, you can do it even faster.
Its robust design supports a maximum load of 200kg, and a powerful motor (rated for 3,000 hours of rotation) keeps the turntable spinning smoothly even at max weight a nd speed (35-90 seconds per rotation). Adjust its speed and rotation on the fly through its remote control or app.
Seams, folds, wrinkles, and even pores are perfectly captured, bringing full-body scans to life, ready for use in AR/VR or fashion design.
Seams, folds, wrinkles, and even pores are perfectly captured, bringing full-body scans to life, ready for use in AR/VR or fashion design.
Augment your design capabilities by creating 3D models for art, animation, or design projects and modifying items around the home with the help of 3D printers or CNC machines. Create and share 3D models with ease to explore new opportunities in education and historic preservation.
Augment your design capabilities by creating 3D models for art, animation, or design projects and modifying items around the home with the help of 3D printers or CNC machines. Create and share 3D models with ease to explore new opportunities in education and historic preservation.
Open the door to expressing your creativity by supercharging your design, restoration, arts, or crafts 3D model creation workflows.
Open the door to expressing your creativity by supercharging your design, restoration, arts, or crafts 3D model creation workflows.

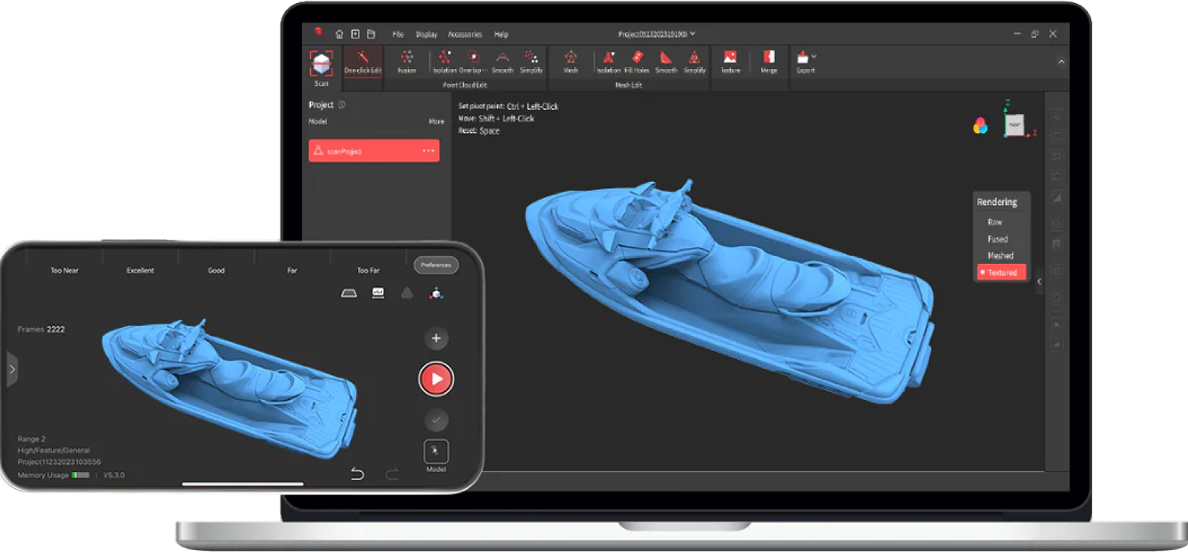

For free moving mobile scanning, you can quickly connect your phone or tablet to the RANGE using the Revo Scan app on your Android or iOS device. Once you've finished scanning, you can quickly export your models or projects to the PC version of Revo Scan for post-processing.
For free moving mobile scanning, you can quickly connect your phone or tablet to the RANGE using the Revo Scan app on your Android or iOS device. Once you've finished scanning, you can quickly export your models or projects to the PC version of Revo Scan for post-processing.
Effortlessly import your 3D model into any of these programs, plus many more.
Effortlessly import your 3D model into any of these programs, plus many more.
|
Product Name |
RANGE 3D Scanner |
|
Output Formats |
PLY, OBJ, and STL |
|
Technology |
Dual Camera Infrared Light |
|
Point Distance/Resolution |
0.3mm |
|
Single-frame Precision |
Up to 0.1mm |
|
Special Object Scanning |
Use scanning spray and the correct scanning mode for transparent, dark, or highly reflective objects. |
|
Single-frame Accuracy |
Up to 0.3mm |
|
Scanning Environment |
Indoors and Outdoors |
|
Single Capture Range |
360mm x 650mm @600mm |
|
Scanner Weight |
210g |
|
Working Distance |
300mm ~ 800mm |
|
Scanner Dimensions |
295mm x 41.5mm x 28.2mm |
|
Minimum Scan Volume |
50mm x 50mm x 50mm |
|
3D Printing Compatible |
Yes |
|
Scanning Speed |
12fps - 18fps |
|
Compatible OS |
Windows 8/10/11 (64-bit), Android, iOS, macOS |
|
Light Source |
Class 1 Infrared Light |
|
Connection Modes |
USB 3.0, and Wi-Fi 5.1 |
|

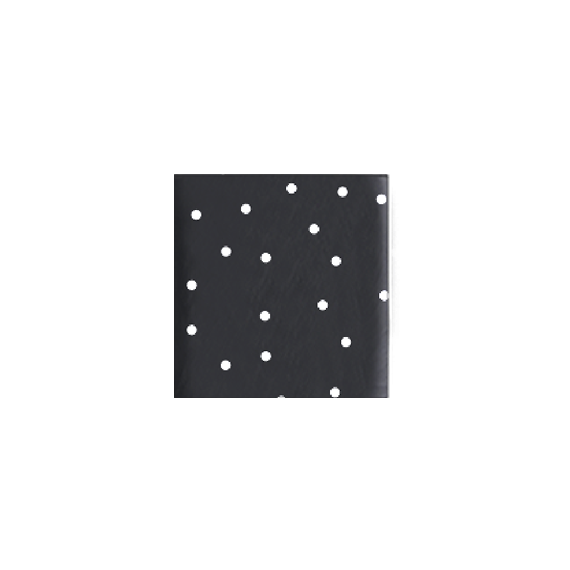

Alignment Modes |
Feature/Marker |
|
Bluetooth |
4.1 |
|
Color Scanning |
Yes |
|
Hardware Button |
Start/Pause Scan |
|
1. Accuracy was acquired in a controlled lab environment. Actual results might vary, subject to the operation environment. |
|
