RANGE 3

RANGE 3 3D Scanner

Scan Big Anywhere

Overview

Massive View, Faster Scans

Up to 687 × 672 mm at 1000 mm

Two Modes, Every Job Covered

VCSEL near-infrared structured light
*11 Parallel Infrared Laser Lines

*RANGE 3 Pro Only

One Scanner Every Size

From 20 mm to 4 m

Reliable Large-Scale Accuracy

Volumetric Accuracy: Up to 0.03 mm + 0.2 mm × L (m)

*RANGE 3 Pro Laser Line Mode

105 fps, Blink and It's Done

*RANGE 3 Pro Only

Snap, Scan and Go Anywhere

3-hour battery, fully cable-free.

Color Does the Work

Color Tracking for Pattern-Rich Surfaces

Markerless Laser Scanning

Effortless Alignment

*RANGE 3 Pro Laser Line Mode

Sunlight? No Problem

100,000 Lux Outdoor Scanning

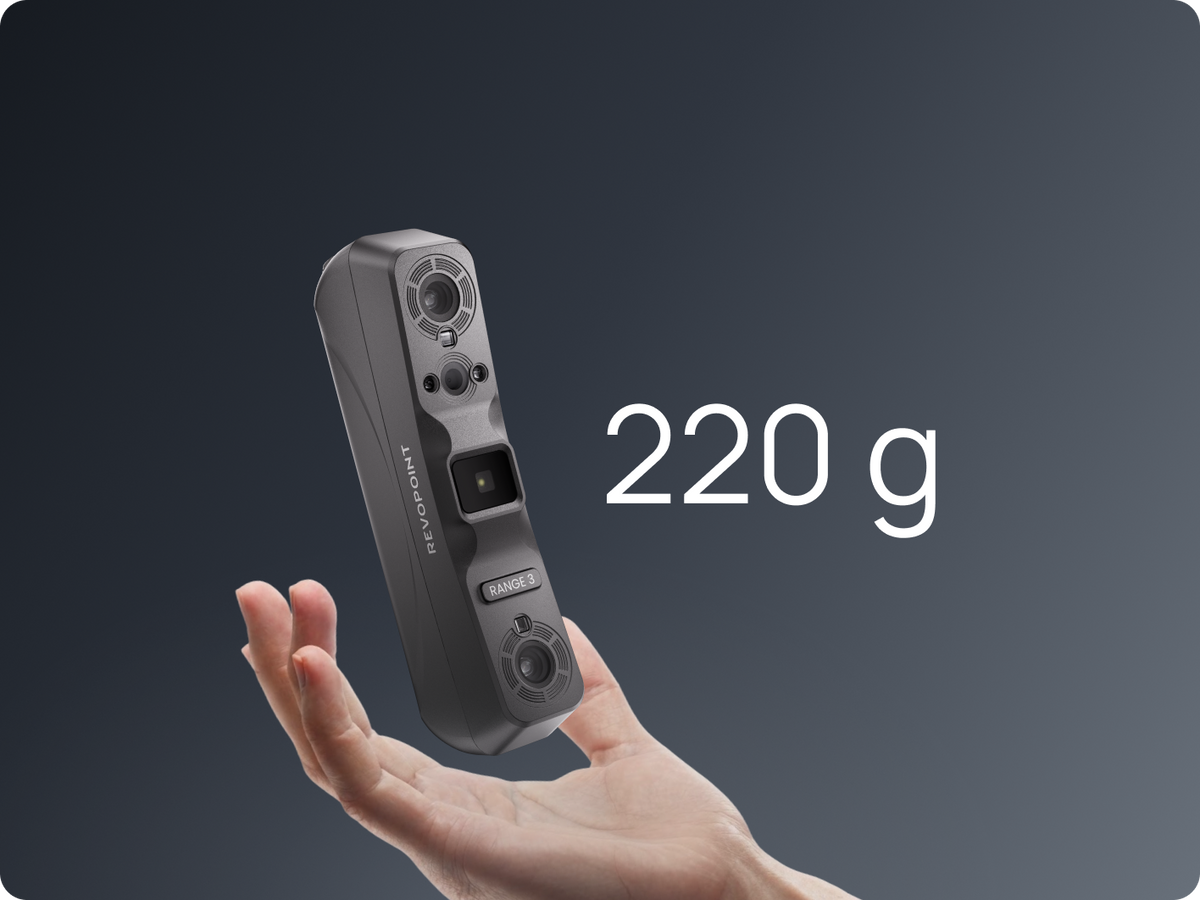

Ultra-Lightweight & Pocket-Sized

Photorealistic 3DGS

1:1 lifelike color and texture capture

AI Object Segmentation & Crop

Isolate objects with a single click

All-in-One Workflow

Scan, design, and measure in one system

Features

Massive View, Faster Scans

With a working distance of 200–1000 mm and a single-frame capture range of up to 687 × 672 mm at 1000 mm, RANGE 3 delivers detailed scanning of workpiece holes, edges, surface transitions, and critical features, seamlessly covering diverse modeling needs from small components to large-scale scenes.

Two Modes, One Scanner — Ready for Anything

Near-Infrared VCSEL Structured Light

Fast, wide-area scanning at up to 30 fps — built to sweep human bodies, sculptures, and large industrial equipment in one go.

*Available on RANGE 3 & RANGE 3 Pro

11 Parallel Infrared Laser Lines

Switch to 105 fps laser scans for close-range detail work — where every edge, hole, and surface transition has to be right.

*RANGE 3 Pro Only

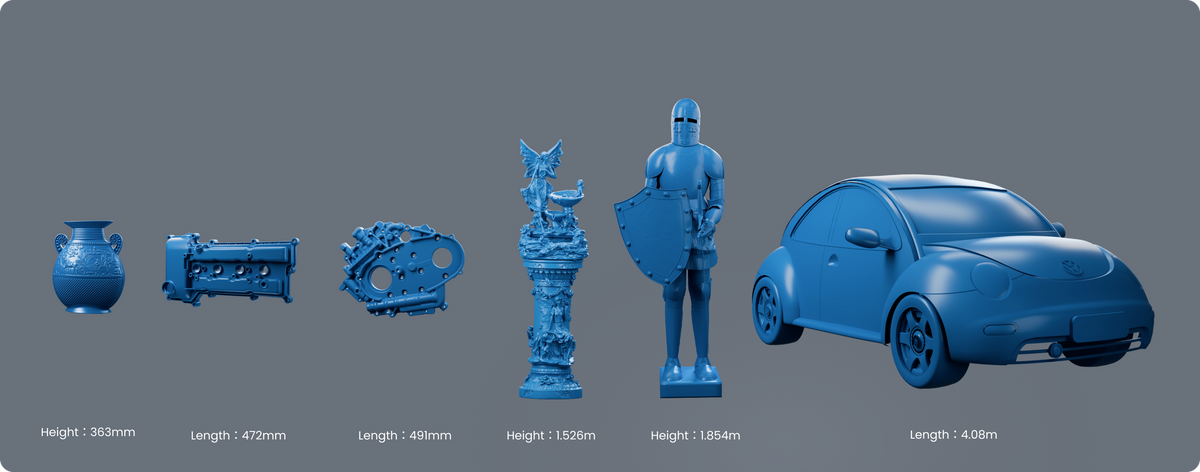

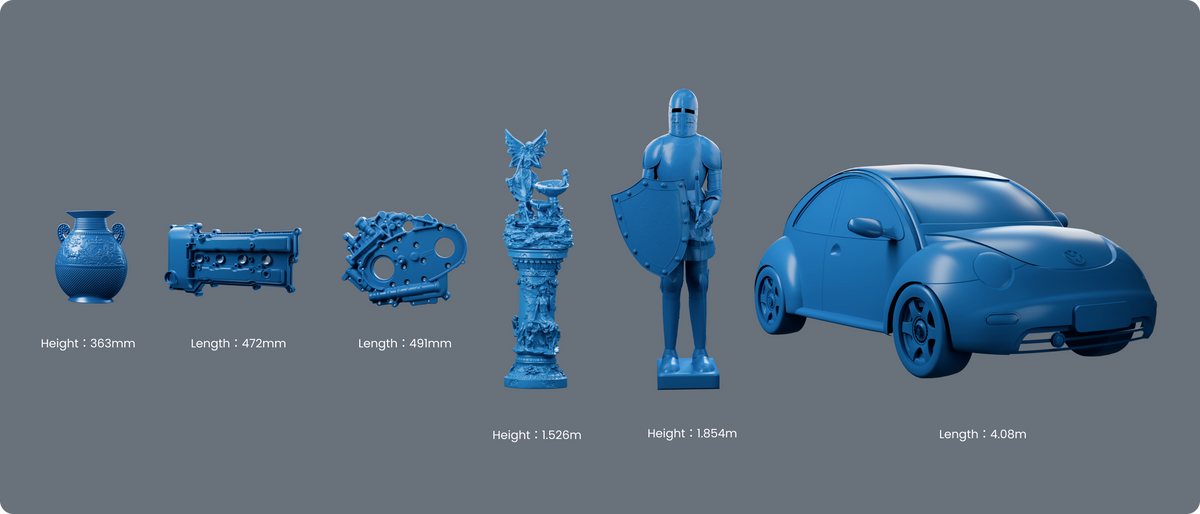

20 mm to 4 m, One Scanner, No Swap

Easily capture from 20 × 20 × 20 mm components to 4 × 4 × 4 m objects —
RANGE 3 covers every scale, every project, without switching devices.

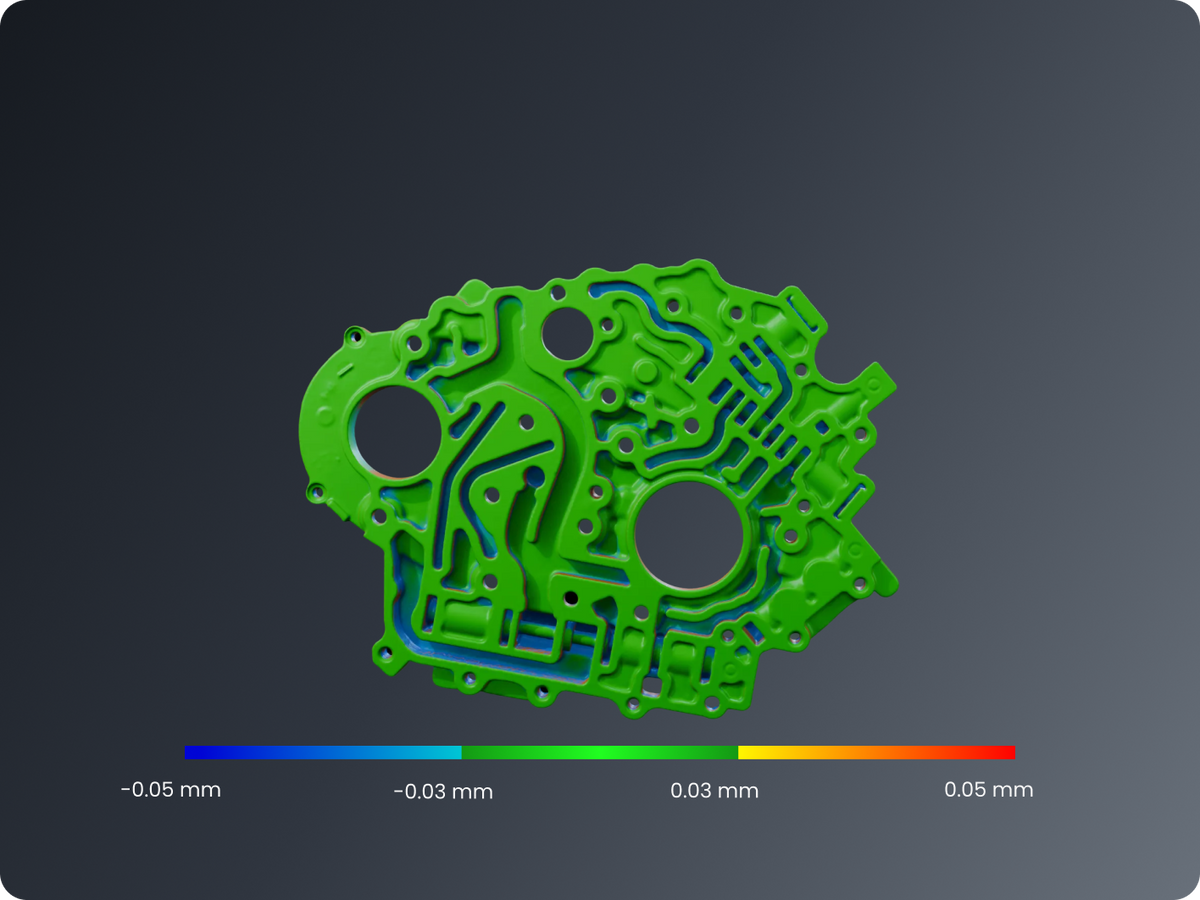

Professional Volumetric Accuracy, Right in Your Hands

Scan complex parts and large-scale objects with professional accuracy —
built for reverse engineering, 3D print and precision part modeling workflows.

RANGE 3 RANGE 3 Pro

0.05 mm + 1 mm × L (m) Up to 0.03 mm + 0.2 mm × L (m)

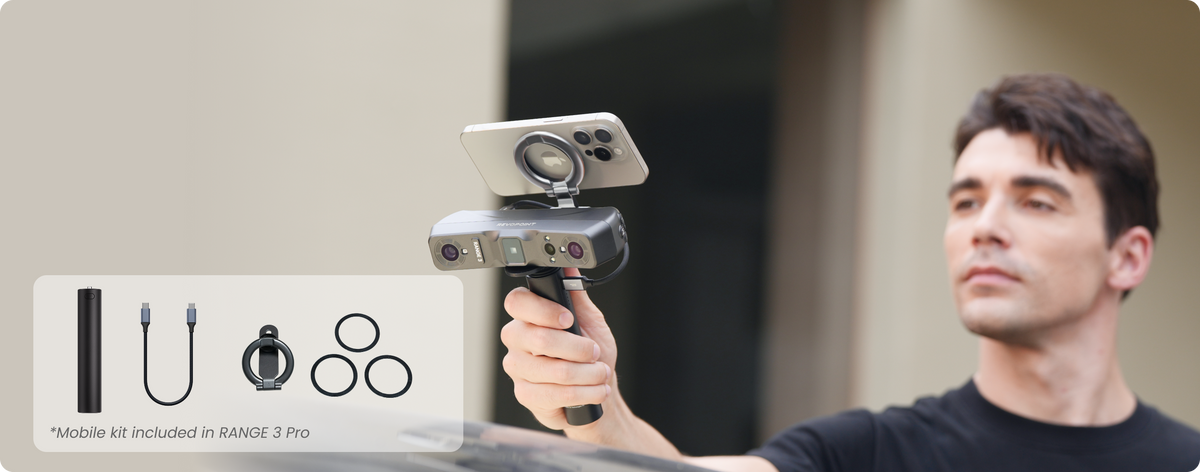

Snap, Scan and Go Anywhere

Snap on the magnetic phone holder, connect via Wi-Fi 6, and you're free. Up to *3-hour battery (5000 mAh), no cable needed — just you, your scanner, and the full freedom to move.

*Mobile kit included in RANGE 3 Pro.

Visual Color Tracking

Effortlessly captures surface color and texture alongside geometry — flexible color tracking for objects with rich patterns or limited geometric features. Available in laser line mode.

*PC Only, Dedicated GPU Required.

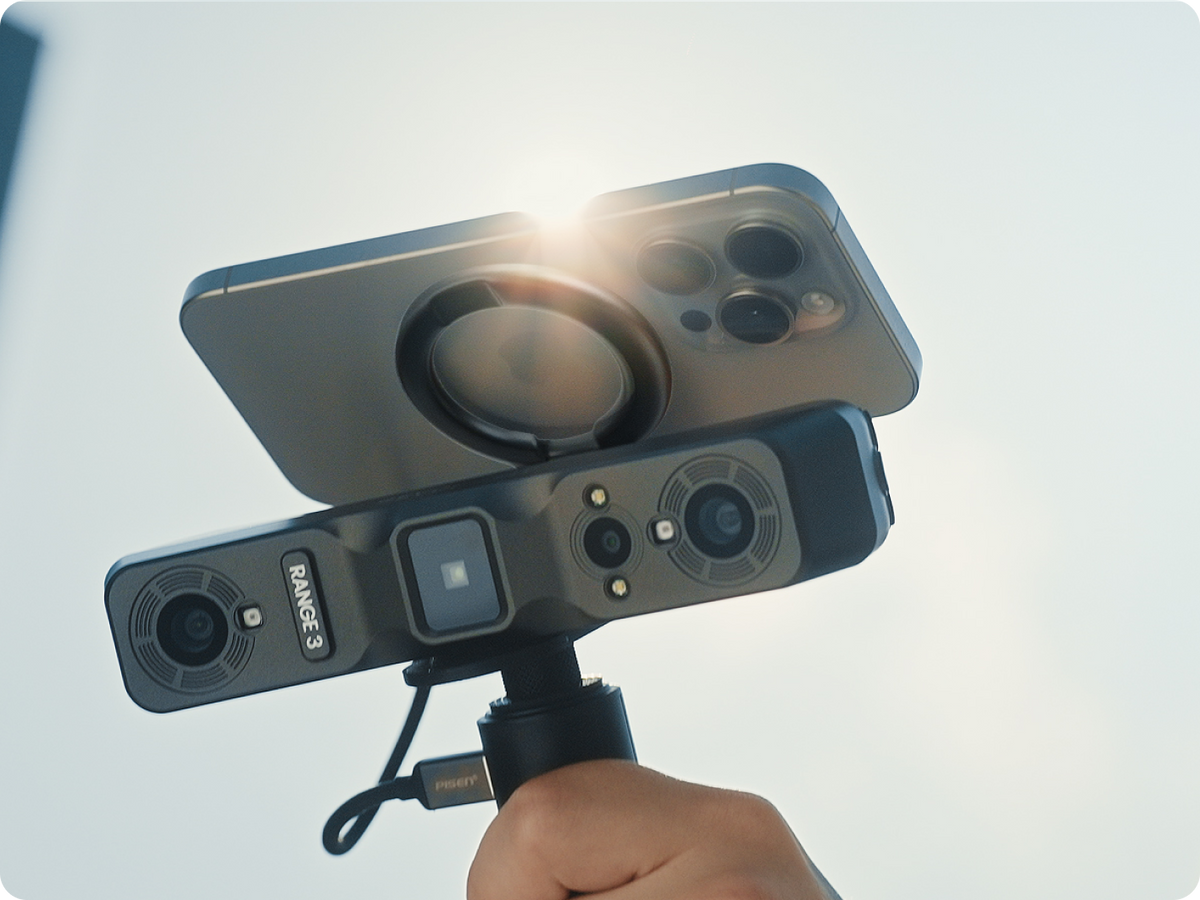

The Sunlight Won't Stop Scan

Supports ambient light up to 100,000 lux, ensuring
smooth, uninterrupted outdoor scanning even under direct sunlight.

No Markers, No Setup, Just Scan

RANGE 3 Pro enables markerless scanning in laser line mode — feature-based and color tracking deliver clean data, reducing prep time.

Photorealistic 3DGS

Remaster textures with your phone using 3DGS. Convert point cloud data into a 1:1 photorealistic Gaussian model, exportable as .splat for immersive creations.

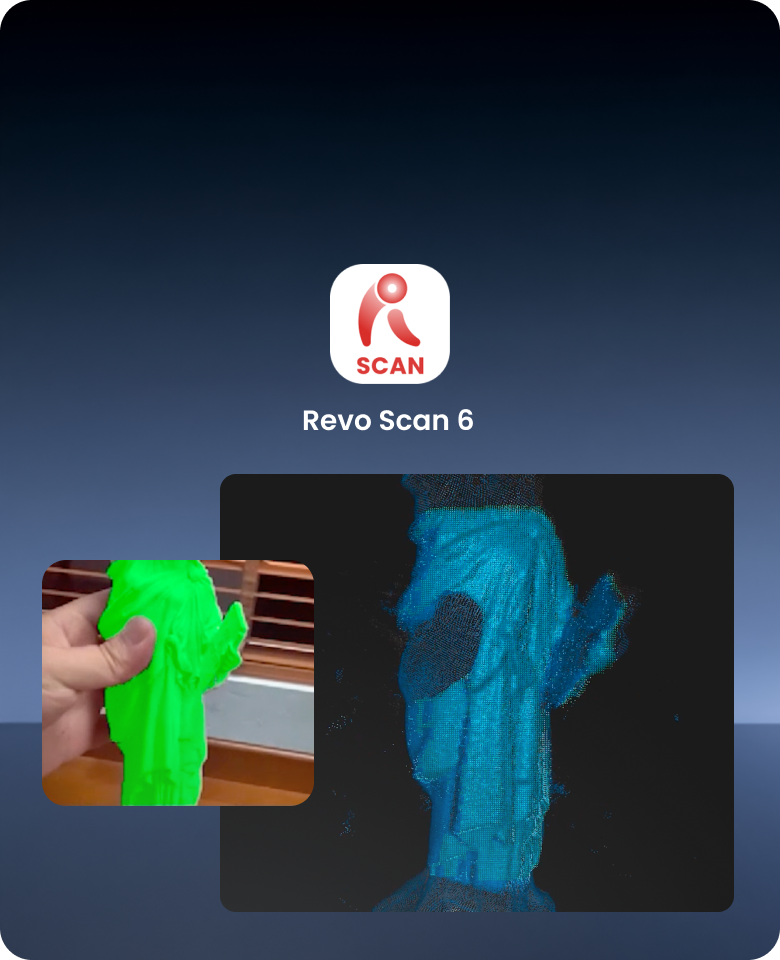

One Click, AI-Cleaned

One-click AI identifies and tracks your target object, auto-removing background point cloud. After laser scanning, crop directly in the RGB camera view.

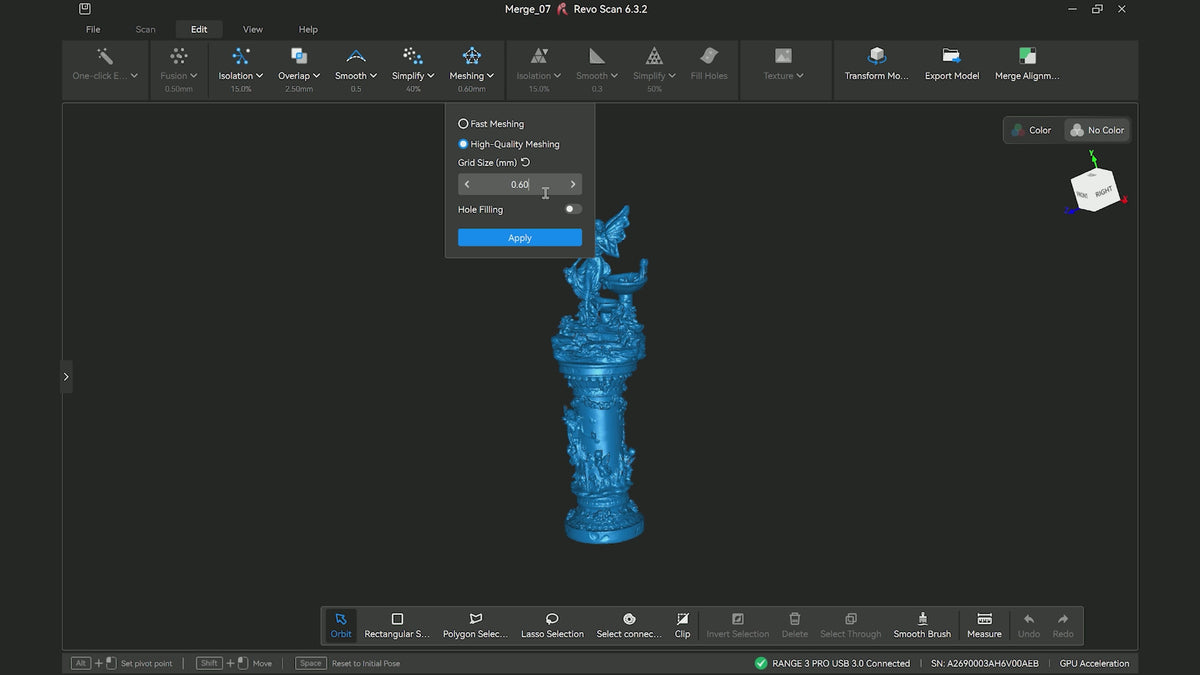

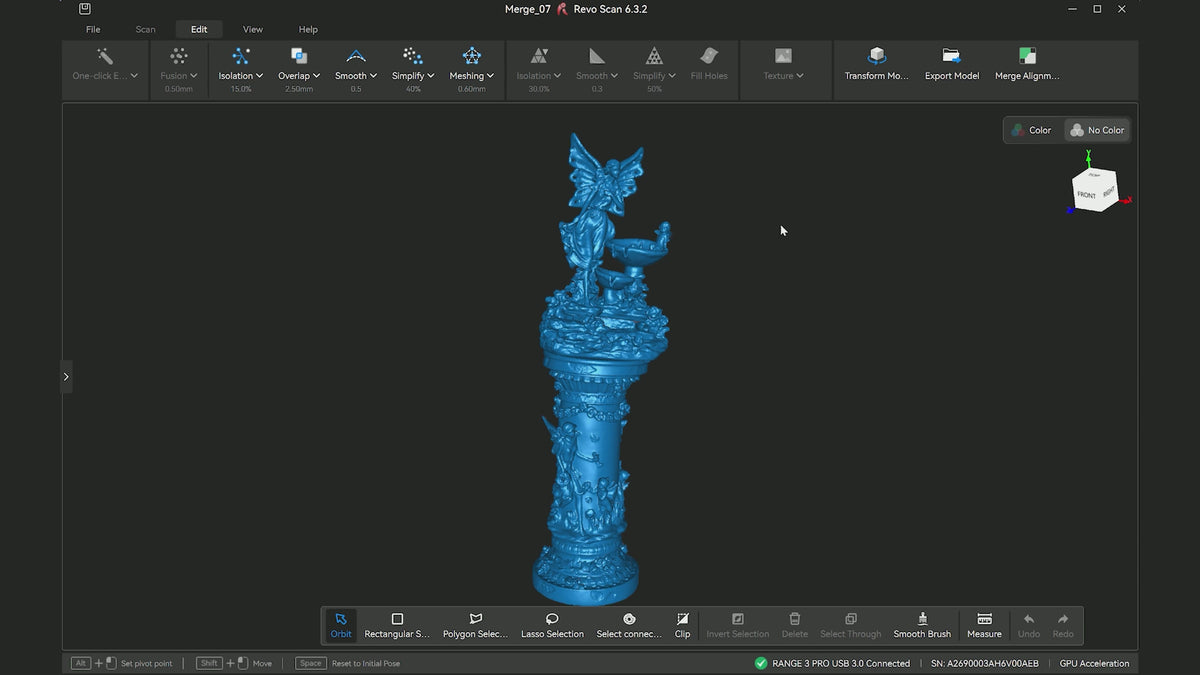

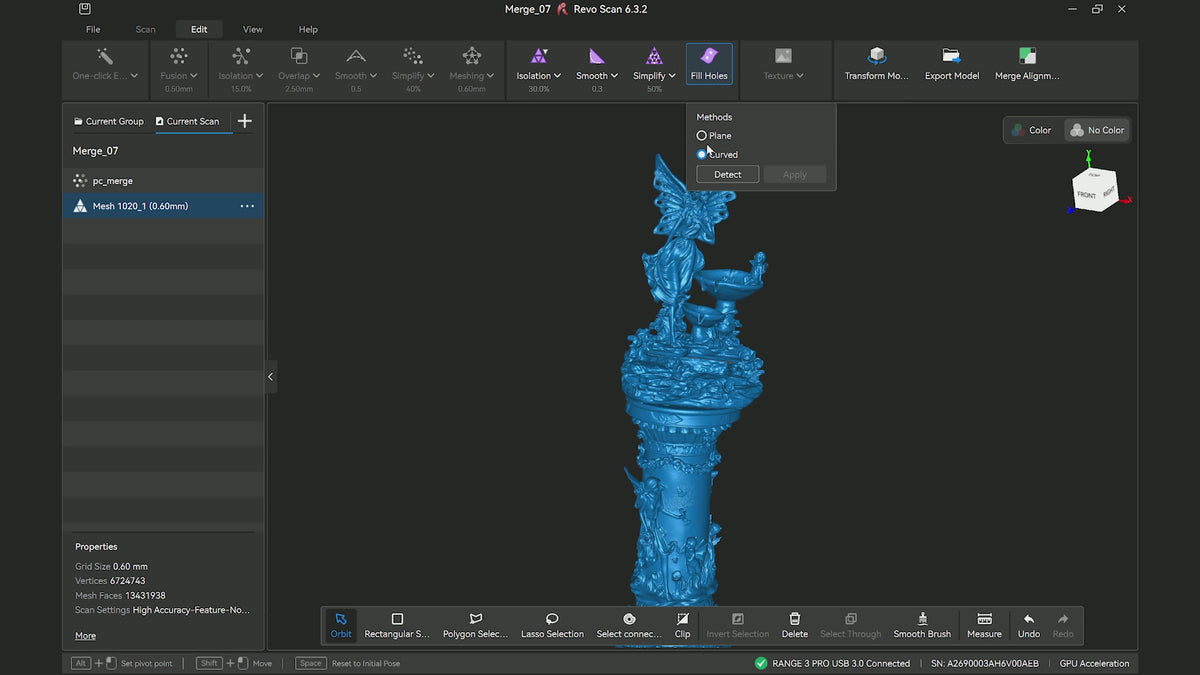

From Raw Scan to Final Model — All in Revo Scan 6

Revo Scan 6 transforms your raw scan data into production-ready 3D models with intelligent,
automated post-processing.

Works On: Windows, macOS, Android, iOS
Output Formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX, Splat

Learn More >

Scan Process Edit Export

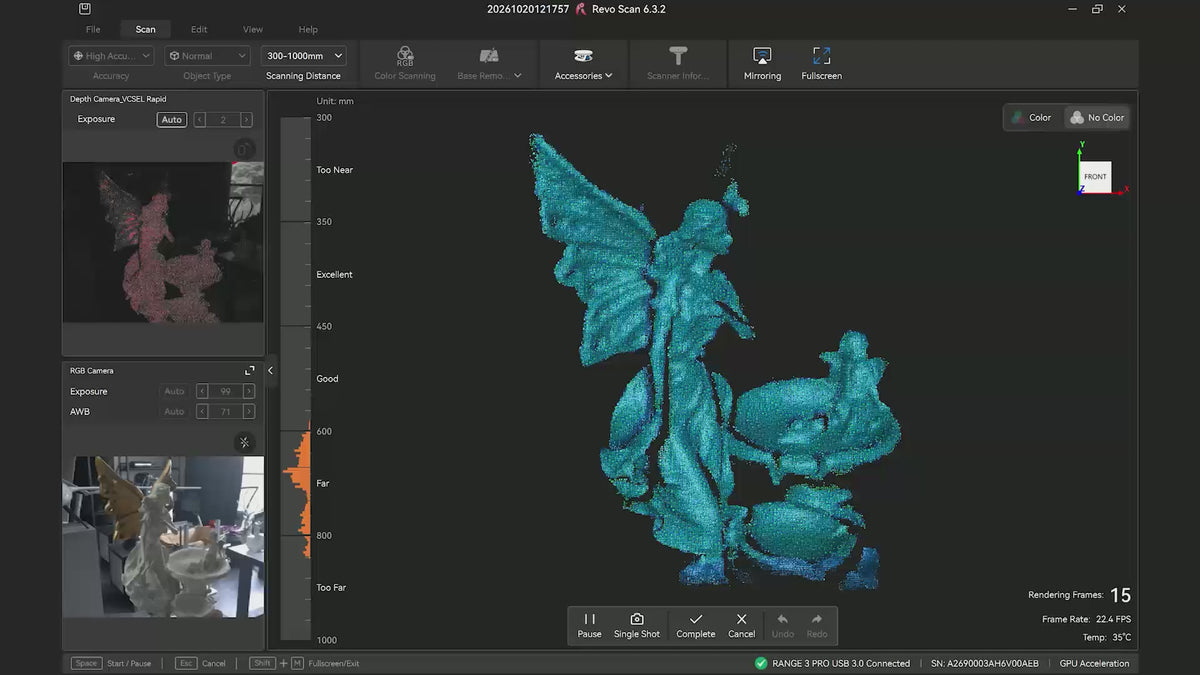

Granular scan settings let you control every aspect of the scanning process, ensuring optimal point cloud capture. Ensure a perfect scan with real-time point cloud monitoring to verify you've captured enough data.

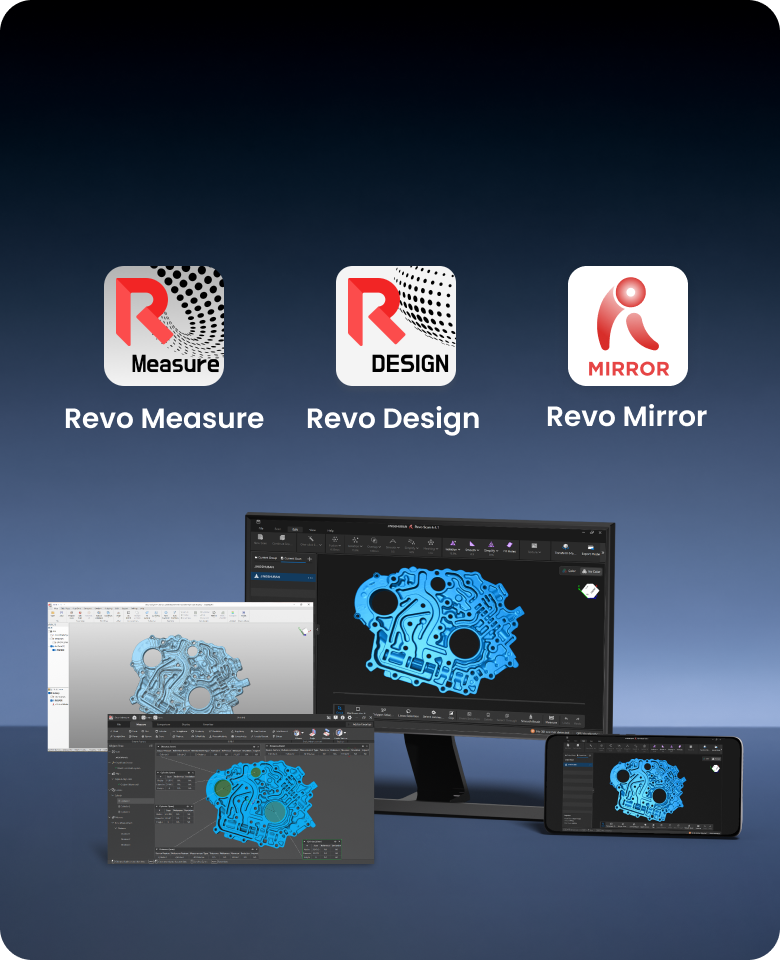

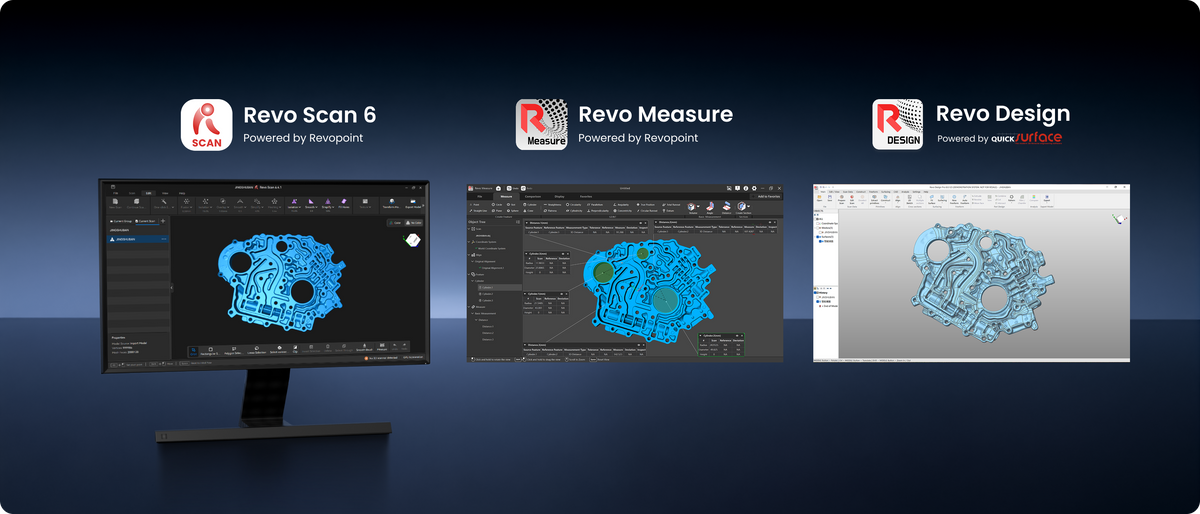

Scan, Design, Measure, One Ecosystem

No more juggling software. Enjoy a unified workflow from
scan-to-CAD to inspection with Revo Scan 6, Revo Design,
and Revo Measure working together as one professional ecosystem.

Captured with RANGE 3

Explore More >

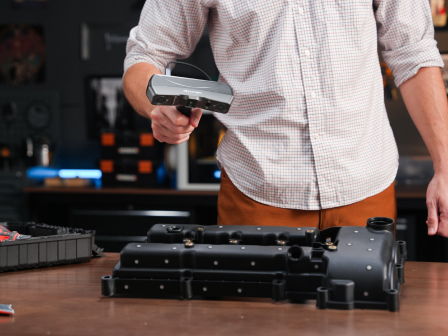

Engine Valve Cover

Knight Armor Statue

Fairy Fountain Statue

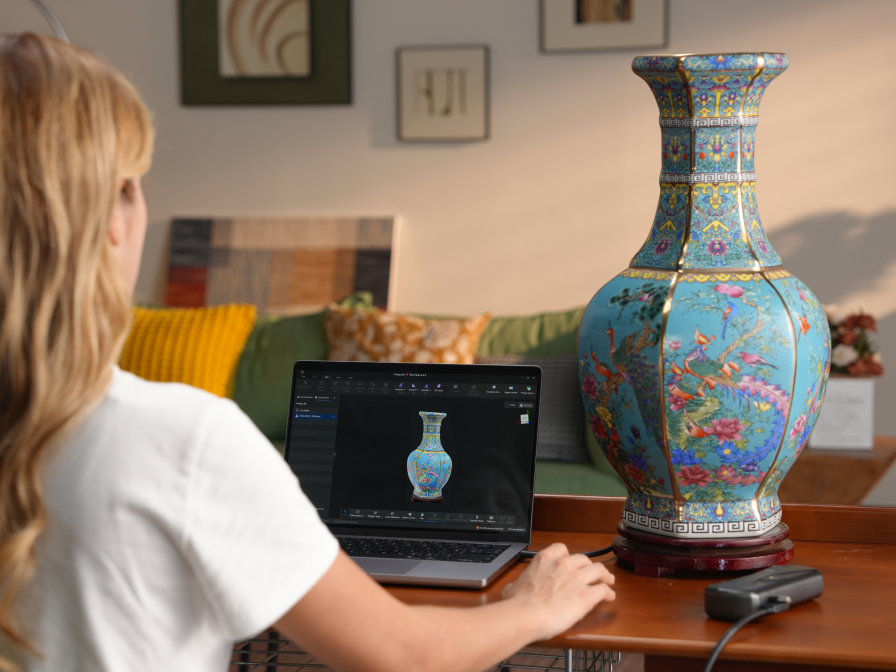

Relief Pattern Vase

Professional Solutions

Industrial Digitization

Capture full 3D geometry of machinery, frames, and large assemblies on-site — covering objects up to 4 × 4 × 4 m with a single-frame range of up to 687 × 672 mm.

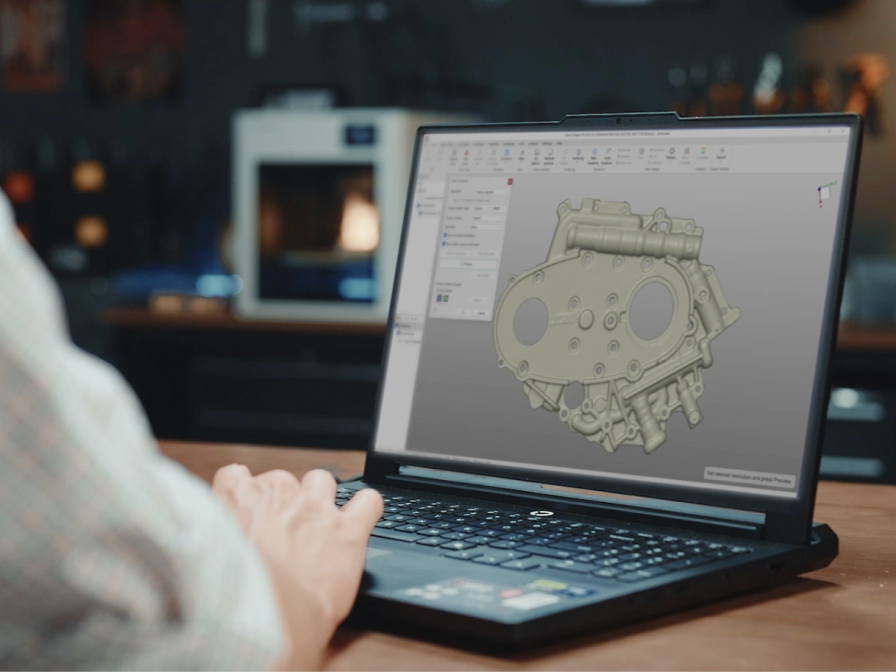

Reverse Engineering

Scan parts, molds, and components at volumetric accuracy up to 0.03 mm + 0.2 mm × L (m) — ready for CAD reconstruction and design modification.

Automotive

Scan vehicle panels and large parts from a distance with wide-area coverage — go wireless via Wi-Fi 6 for free movement indoors and outdoors, up to 100,000 lux.

Historic Preservation

Digitize sculptures, artifacts, and large installations with full-color scanning and 3DGS export — preserving surface texture, color, and spatial form in a single pass.

Art & Design

Capture full-body and torso scans at up to 30 fps — preserving clothing color and texture for garment customization, digital avatars, and personalized product development.

3D Printing

Convert real-world objects into print-ready or photorealistic 3DGS models — with multi-format output including STL, OBJ, PLY, and .splat for 3D printing, rendering, and immersive content creation.

What’s in the Box

RANGE 3

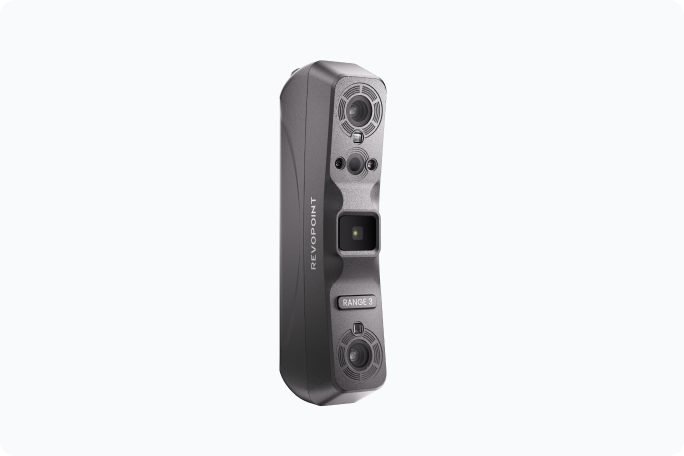

RANGE 3 3D Scanner

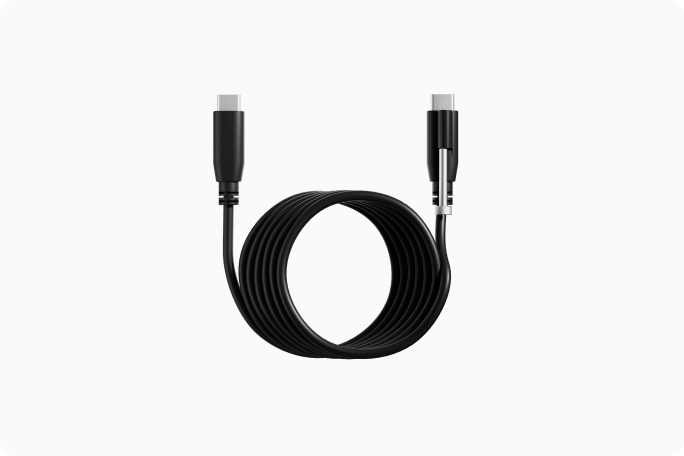

USB-C to USB-C Cable
Length: 2m

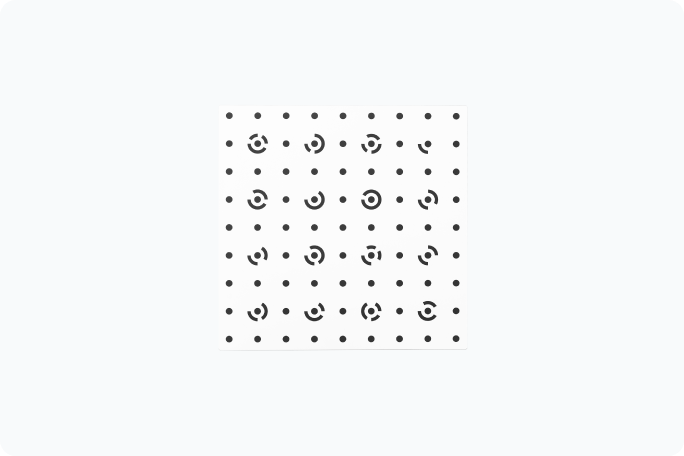

Calibration Board

RANGE 3 Pro

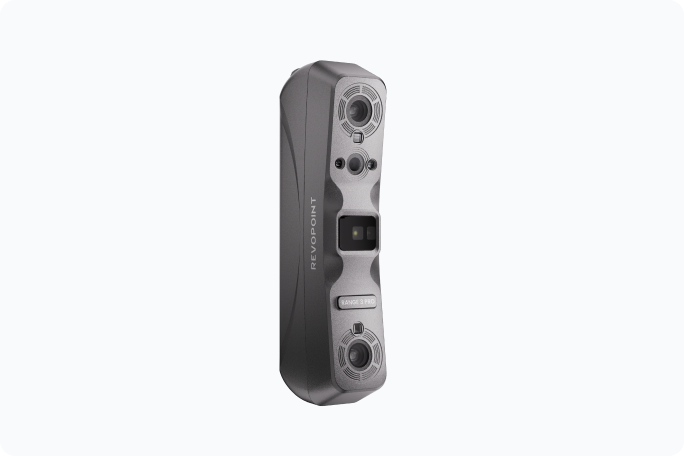

RANGE 3 Pro 3D Scanner

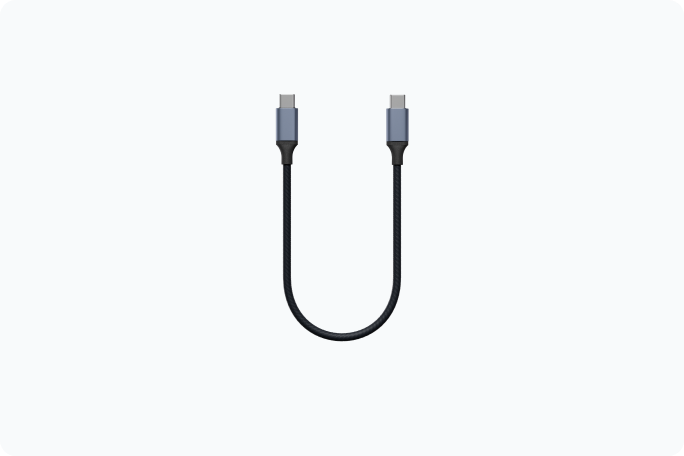

USB-C to USB-C Cable
Length: 2m

*Calibration Board

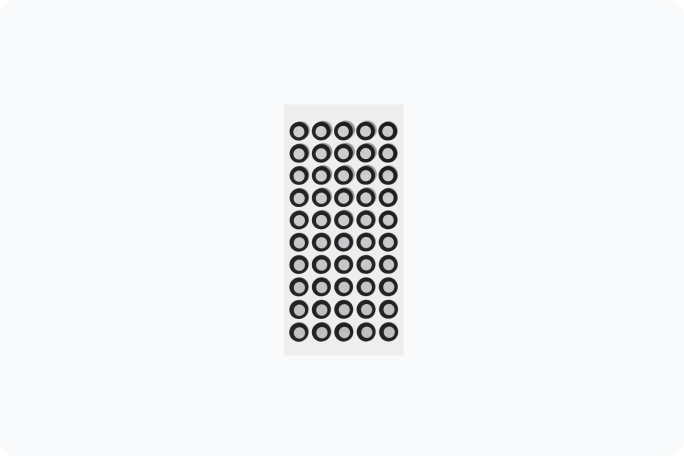

Markers × 200

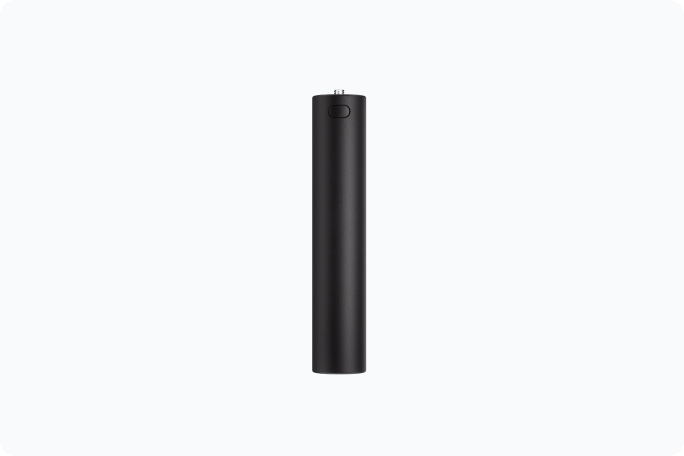

Battery Grip 5000 mAh

Battery Grip Power Cable

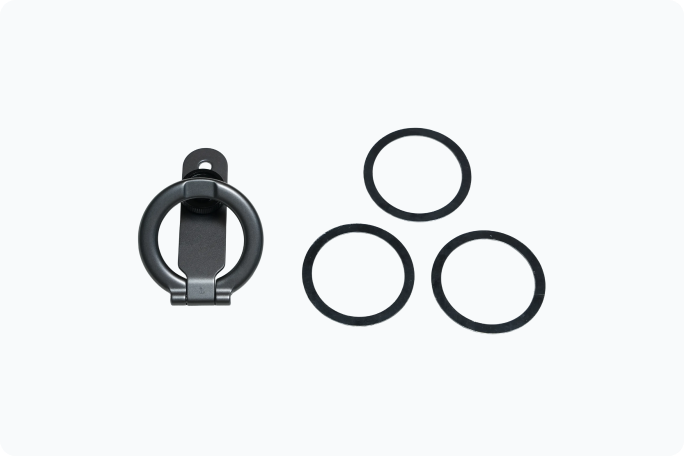

Magnetic Phone Holder

*Glass Calibration Board for RANGE 3 Pro Laser line scan calibration.

Specifications

Name	RANGE 3	RANGE 3 Pro
Scanning Type	Handheld
Technology	VCSEL Structured Light	VCSEL Structured Light and Infrared Multi-line Laser
Scannable Object Size	Small to Large
Volumetric Accuracy①	VCSEL Mode: 0.05 mm + 1 mm × L (m), L is the length of the object.	Multi-line Laser Mode: 0.03 mm + 0.2 mm × L (m), L is the length of the object. VCSEL Mode: 0.05 mm + 1 mm × L (m), L is the length of the object.
Fused Point Distance, up to	0.1 mm
Working Distance	VCSEL Mode: 200 - 1000 mm	Multi-line Laser Mode: 200 - 600 mm VCSEL Mode: 200 - 1000 mm
Single Capture Area at Nearest Distance	113 × 134 mm at 200 mm
Single Capture Area at Furthest Distance	687 × 672 mm at 1000 mm
Minimum Scan Volume	30 × 30 × 30 mm	20 × 20 × 20 mm
Maximum Scan Volume	4 × 4 × 4 m
Scanning Speed	VCSEL Structured Light Scan: 20 - 30 fps	Multi-line Laser Scan: 80 - 105 fps (NVIDIA GPU), 40 - 60 fps (CPU) VCSEL Structured Light Scan: 20 - 30 fps
RGB Camera Resolution	1.3 Megapixels
Color Scanning	Yes
Tracking Methods	Feature, Color, Marker	Feature, Color, Marker, Global Marker
Outdoor Scanning	Yes, Ambient illuminance < 100,000 lux
3D Light Source②	Near-Infrared VCSEL Structured Light	11 Parallel Infrared Laser Lines Near-Infrared VCSEL Structured Light
Fill Lights③	2
RGB Lights③	2
Built in Chip Computing	Depth Map Computing
Buttons	4
Minimum PC Requirements	macOS CPU: M1 Pro/Max/Ultra RAM ≥ 16 GB Windows CPU: Intel i7 13th Gen or AMD Ryzen 7 5800 RAM ≥ 16 GB GPU: NVIDIA GeForce RTX 3060 (8 GB) Note: ① If you're unsure about the CPU configuration, please ensure that the CPU has cores ≥ 8, threads ≥ 16, and a base frequency ≥ 2.4 GHz. ② Supports NVIDIA GPU, AMD GPU, and Apple Mac GPU.
Recommended PC Requirements	macOS CPU: M3 Pro/Max/Ultra or better RAM ≥ 24 GB Windows CPU: Intel i9 12th Gen or better RAM ≥ 32 GB GPU: NVIDIA RTX 4060 (8 GB) or better
Mobile Requirements	① Android CPU: Snapdragon 8 Gen1, Dimensity 9000, Kirin 9000S equivalent performance or better RAM: 12 GB or better System Version: Android 11 or better Storage: 128 GB or better ② iPhone Models after iPhone X; System Version: iOS 14.0 or better; RAM > 4 GB; Storage ≥ 64 GB ③ iPad 10th Gen iPad or later
Compatible Operating Systems	Windows 10/11 (64 bit), Android, iOS, macOS 11.0 or better
Output File Formats	PLY, OBJ, STL, ASC, 3MF, GLTF, FBX, Splat
Ready to Print 3D Models
Wi-Fi	6
Connector Type	Type-C to Type-C USB 3.0; 2 m Data Cable
Power Requirements	DC 5V, 2A; USB-powered via PC
Scanner Weight	218 g	220 g
Dimensions (L × W × H)	163 mm × 57 mm × 32 mm

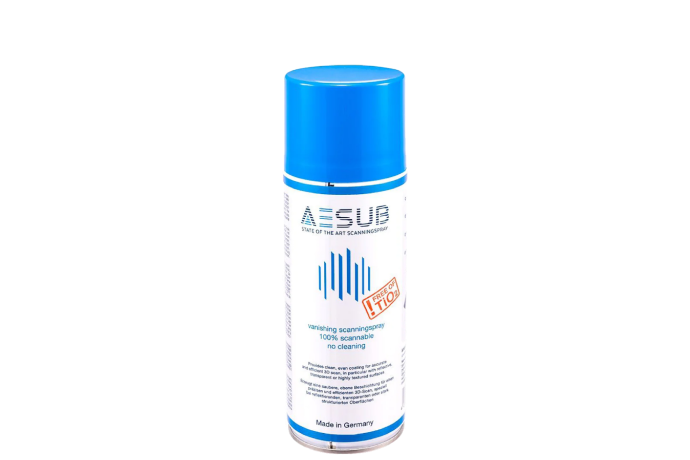

Special Object Scanning	Please use scanning spray when scanning transparent or specular surfaces.
User Recalibration	Yes
Power Bank Capacity	Optional 5,000 mAh Battery Grip	Standard 5,000 mAh Battery Grip

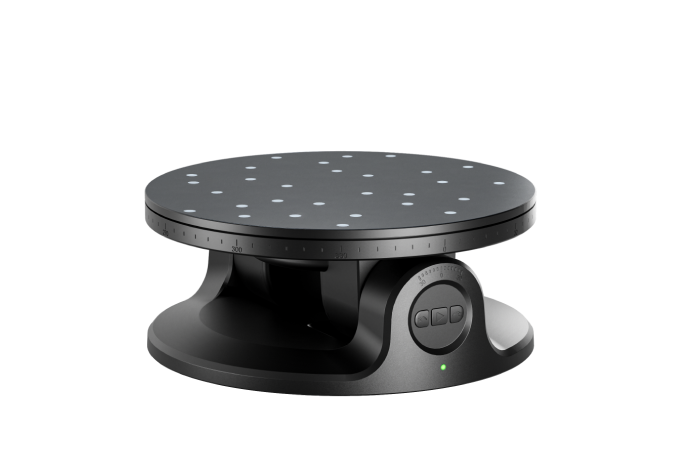

Supported Accessories	Marker Block Kit
Note	1.Volumetric accuracy was obtained using a standard test method in a controlled laboratory environment. Actual results may vary depending on the operating environment. 2.RANGE 3 and RANGE 3 Pro use a Class 1 laser projector. Avoid looking directly at it at close range! Please refer to the Class 1 laser standard document for details. Some products have flashing lights, which may not be suitable for people with photosensitive epilepsy.
