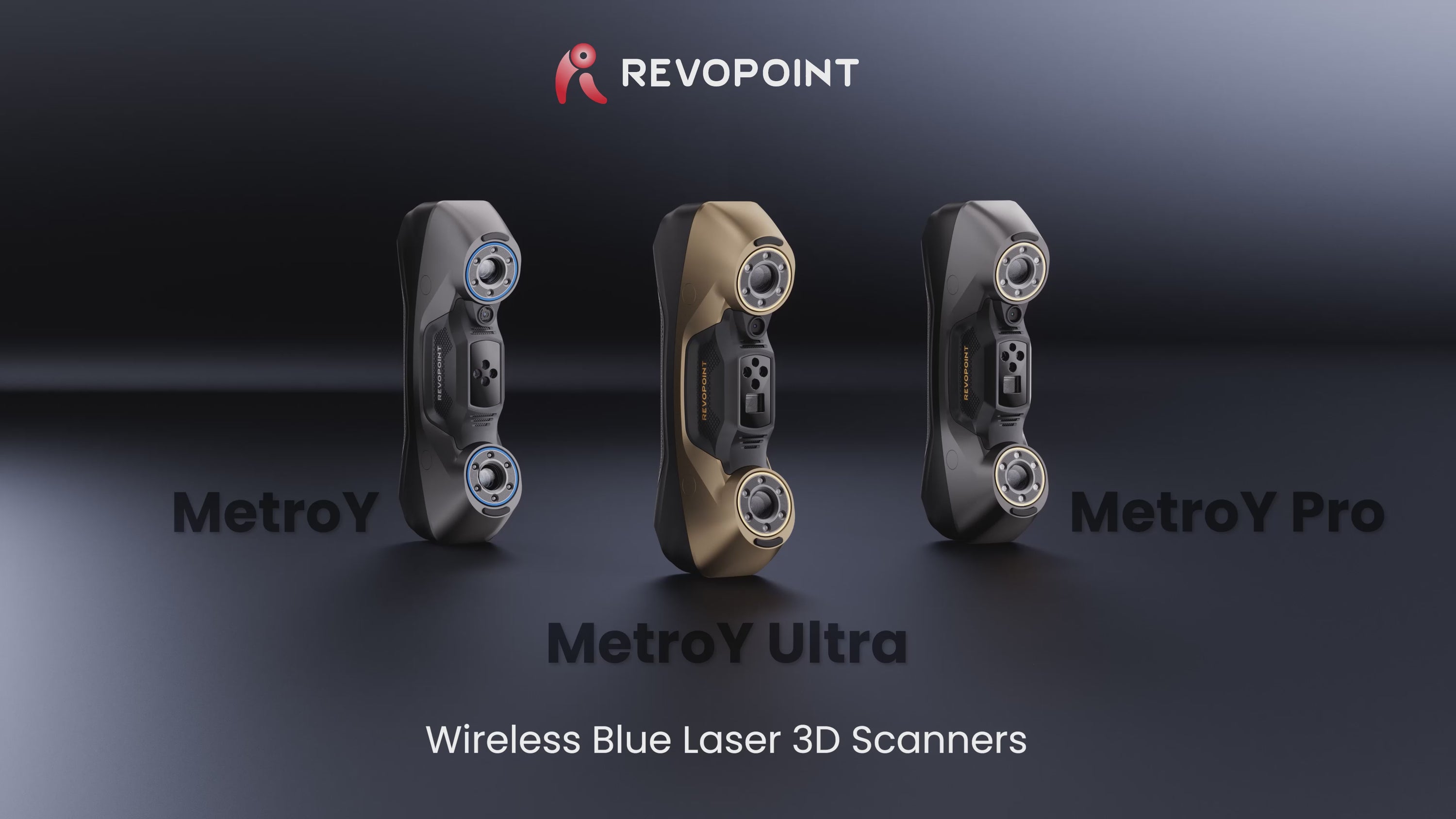

Revopoint MetroY Ultra 3D Scanner - Engineered for Measurement

Home

/

3D Scanners

/

MetroY Ultra Detail

MetroY Ultra

Blue Light

5 Scanning Modes
High Speed - 34 Cross-lines
Scan Details - 15 Parallel Lines
Deep Holes - 1 Line
Full-field Structured Light
Auto Turntable Mode

0.015 mm + 0.04 mm x L (m)

Volumetric Accuracy

On-site, Real-time Accuracy Verification

Scan, Measure, and Analyze with Verifiable Volumetric Accuracy

*Requires Ball Plate or CMM Edition

Up to 3,000,000 Points/s

100% Faster Laser Scans

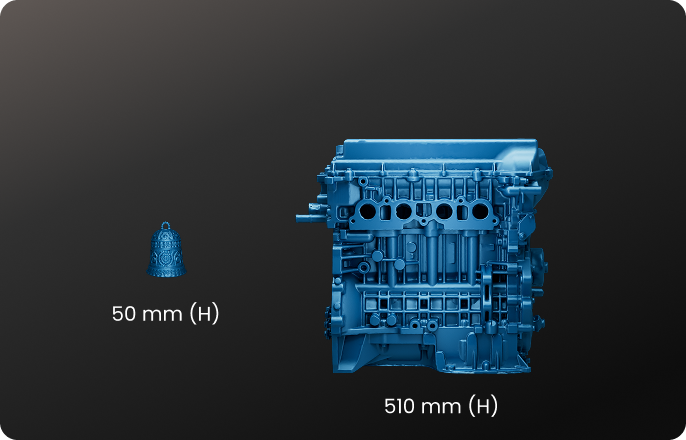

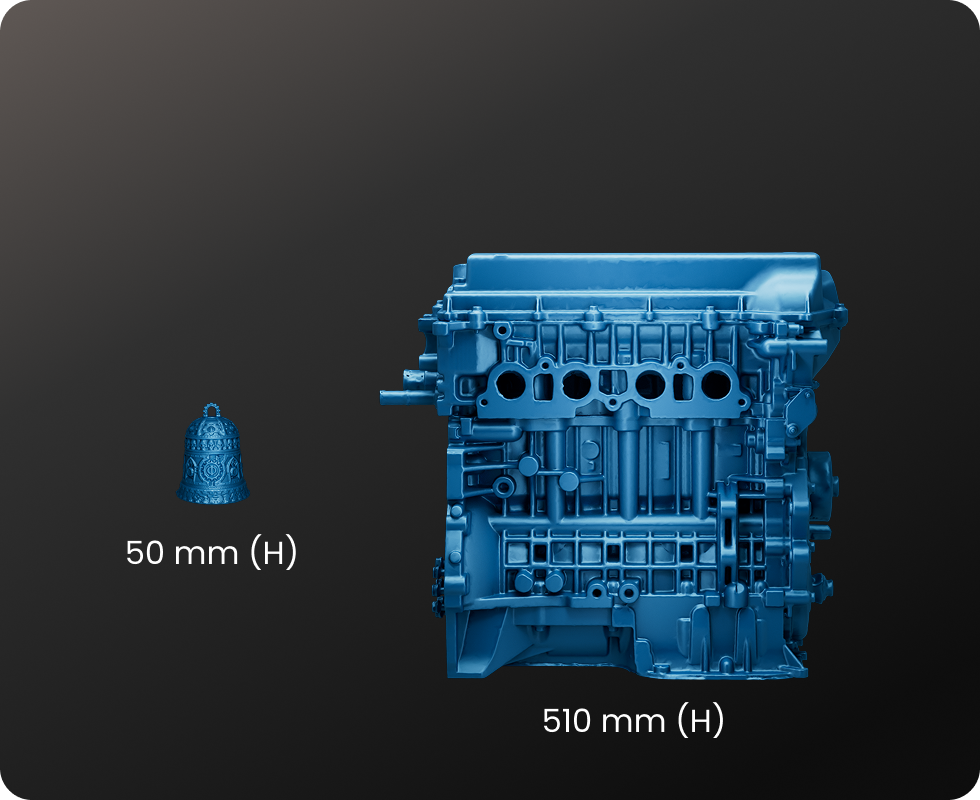

Small to Medium

Scanning Size

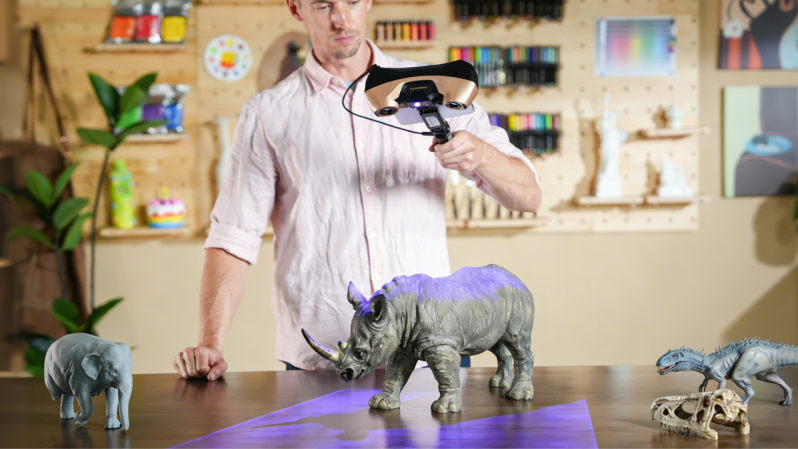

Flexible Scanning

Wireless Scanning and Real-time Screen Mirroring

50% Faster Scanning Speeds

Up to 90 fps

No Scanning Spray Needed

Scan Dark or Shiny Surfaces

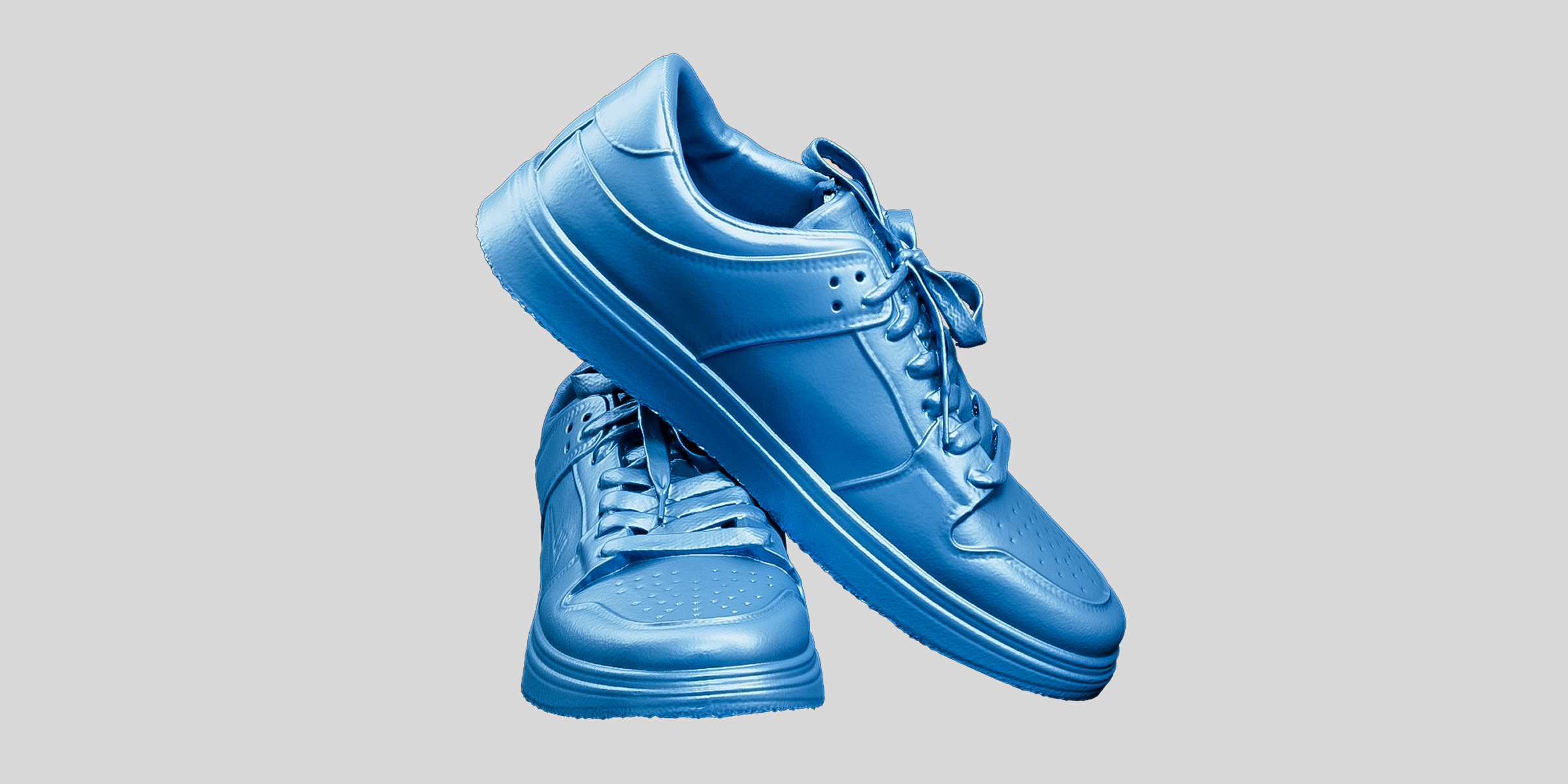

Real Color, Real Results

Create Vivid 3D Models

Outdoor Laser Scans

Up to 100,000 lux

Revo Measure Software

Certified 3D Measurement & Inspection

*Included in CMM Edition

5 Modes for Any Challenge

From complex geometry to hard-to-scan MetroY Ultra’s 5 blue light scanning
modes deliver reliable data without workarounds or scanning spray.*

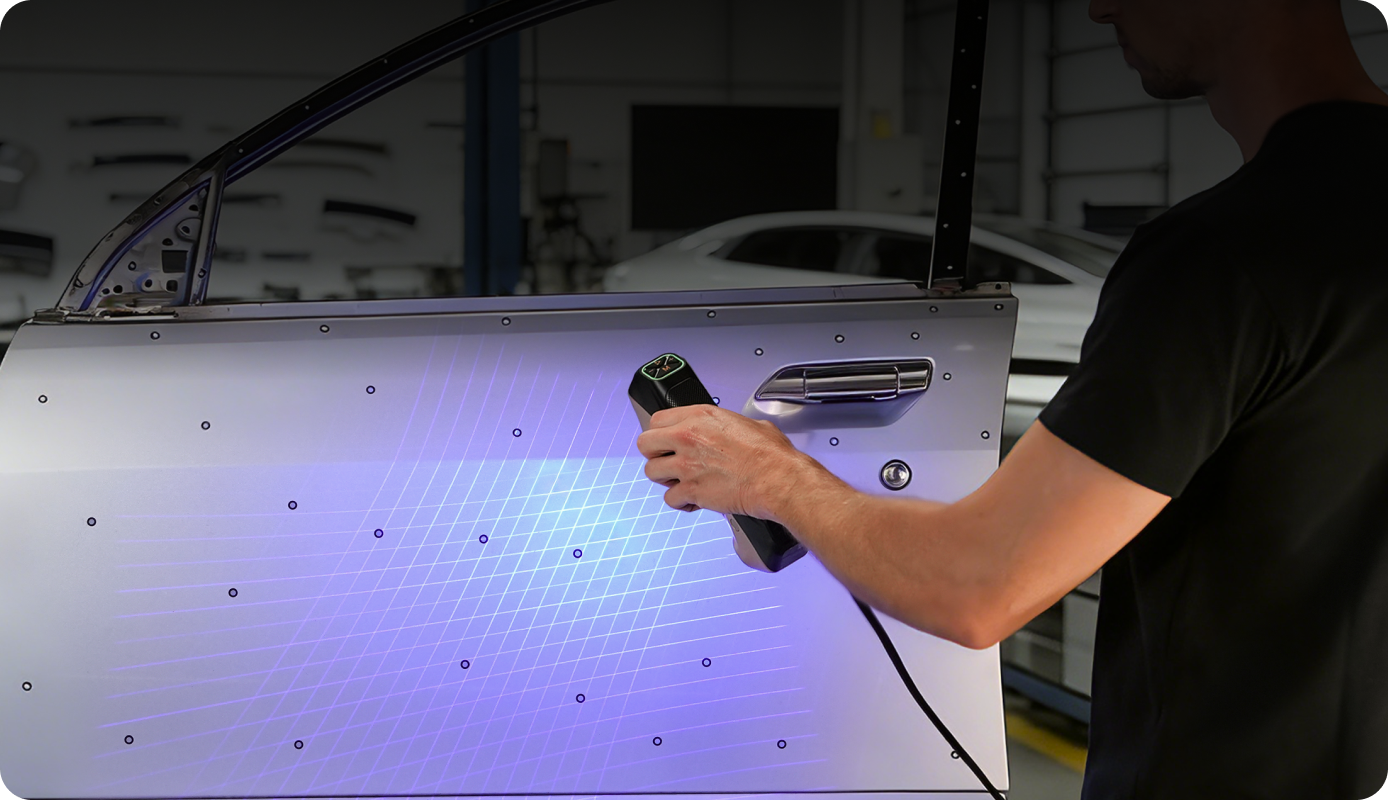

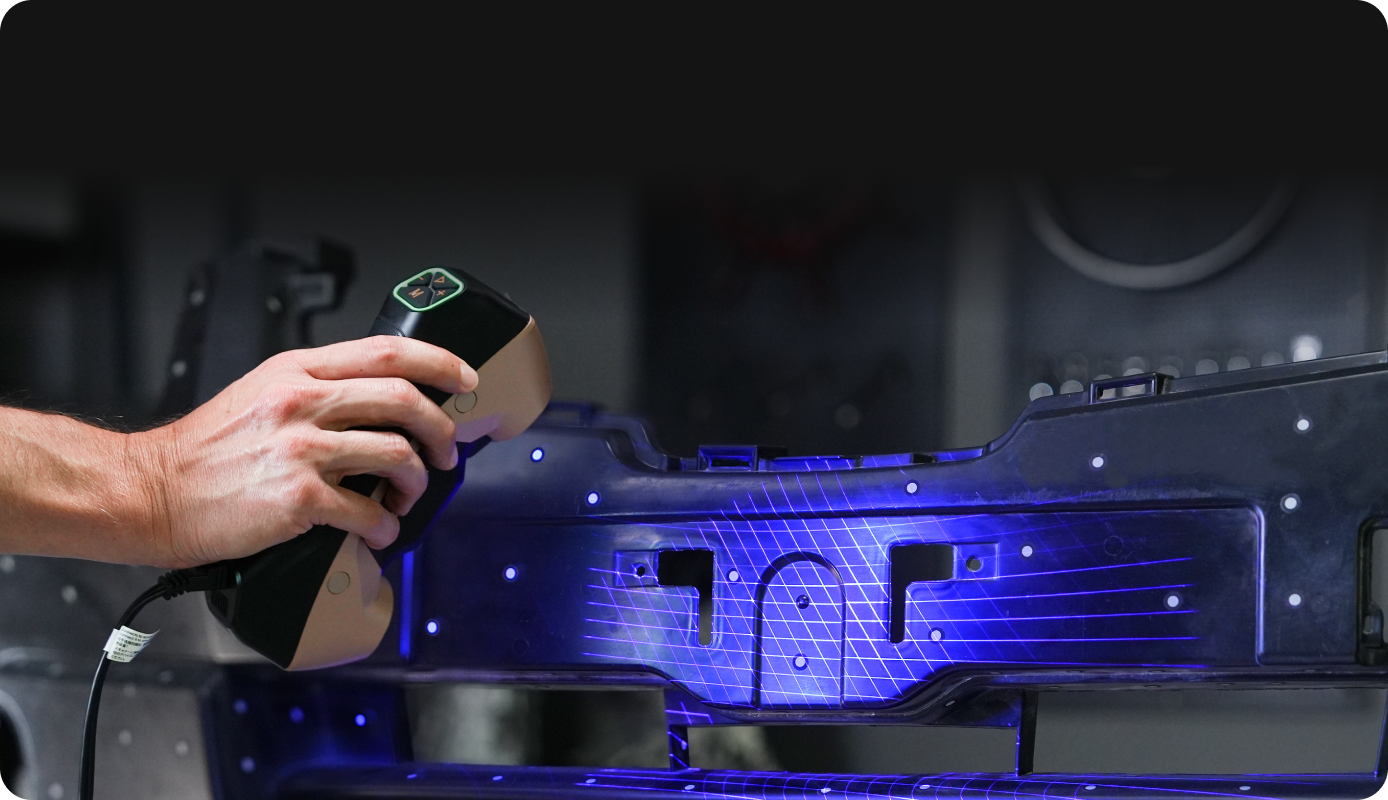

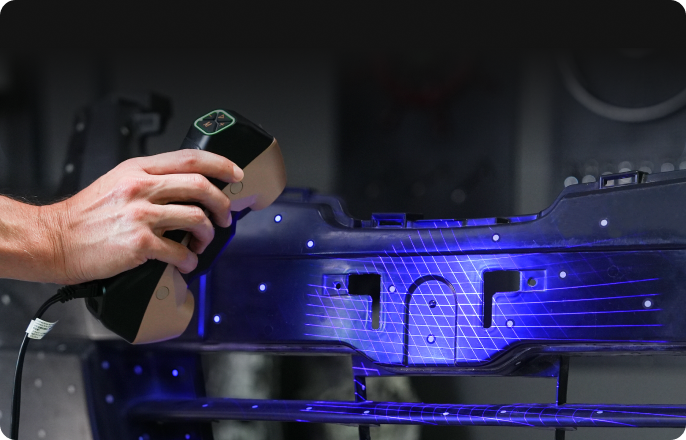

100% Faster - 34 Cross-lines

Capture flat, shiny, or black surfaces and accelerate inspection cycles without sacrificing accuracy at up to 3 million points per second, providing 100% faster scanning speeds than MetroY.

Details - 15 Parallel Lines

Ensure every fine detail, edge, and complex surface is captured with precision, enhancing the clarity and accuracy of your 3D models

Deep Holes - Single Line

Flawlessly capture deep holes, crevices, and grills, ensuring complete data capture in hard-to-reach areas.

Marker-free - Structured Light

Quickly capture feature-rich workpieces marker-free at up to 7 million points per second for fast, accurate 3D data.

Repeatable Results - Auto Turntable

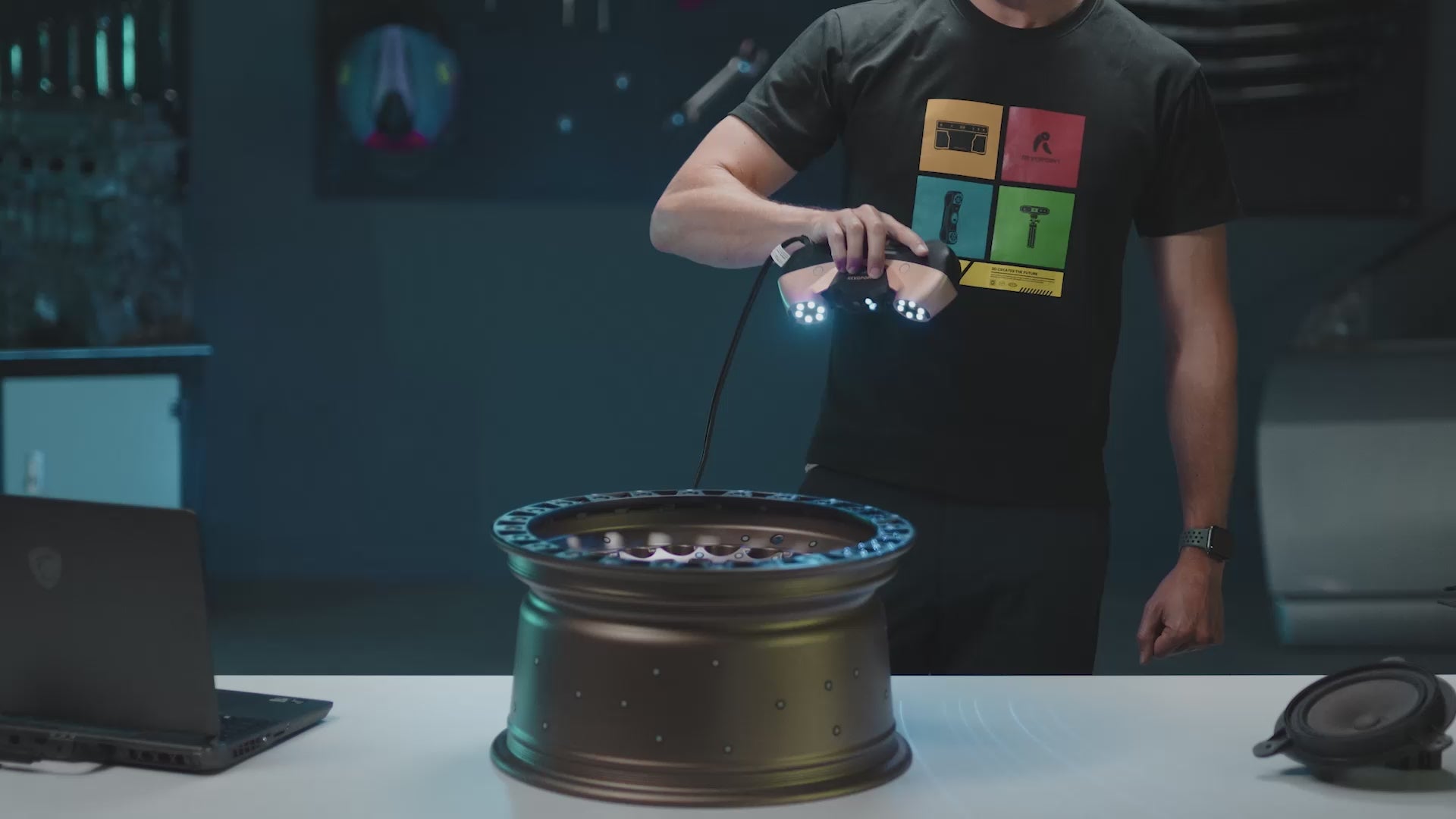

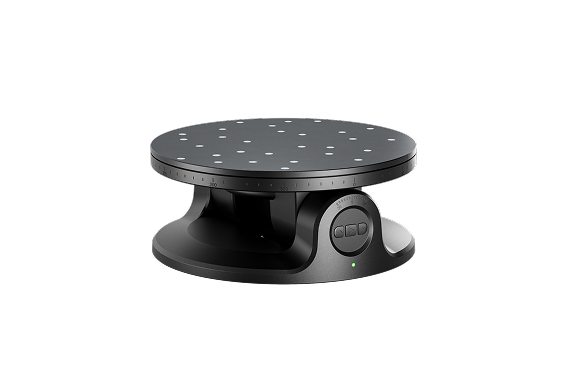

Automatically create ultra-accurate models with just one click using MetroY Ultra and the Dual-axis Turntable, delivering repeatable results every time.

*Structured light modes (including Auto Turntable) require scanning spray on dark or shiny surfaces.

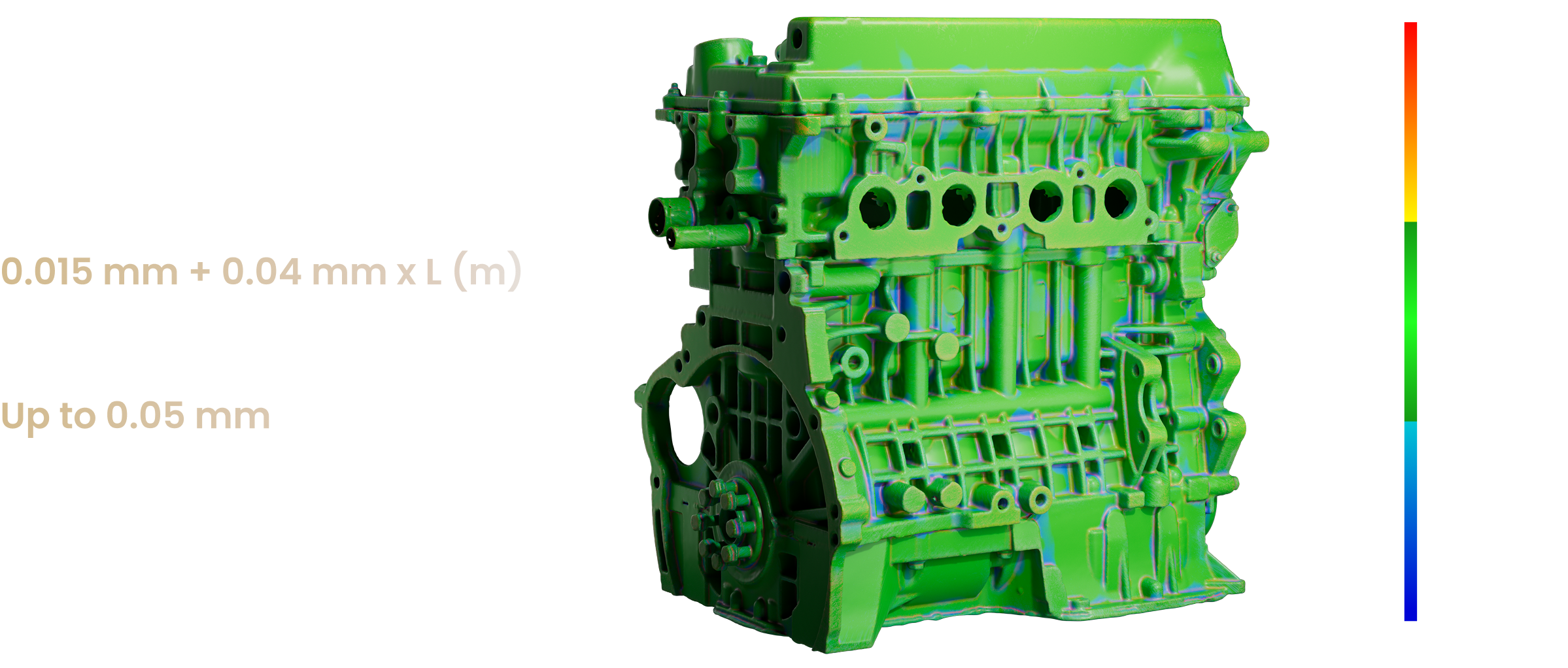

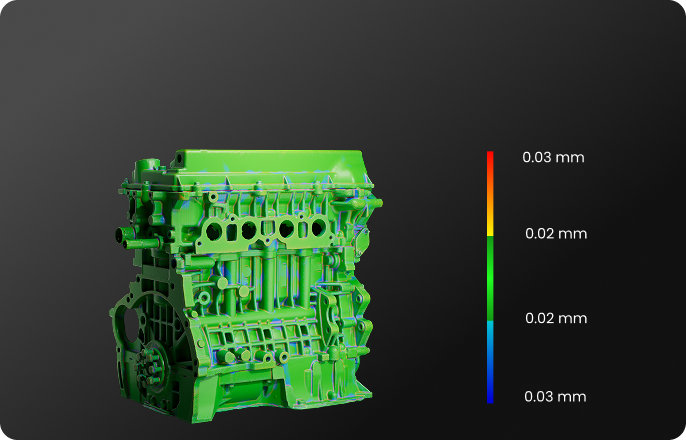

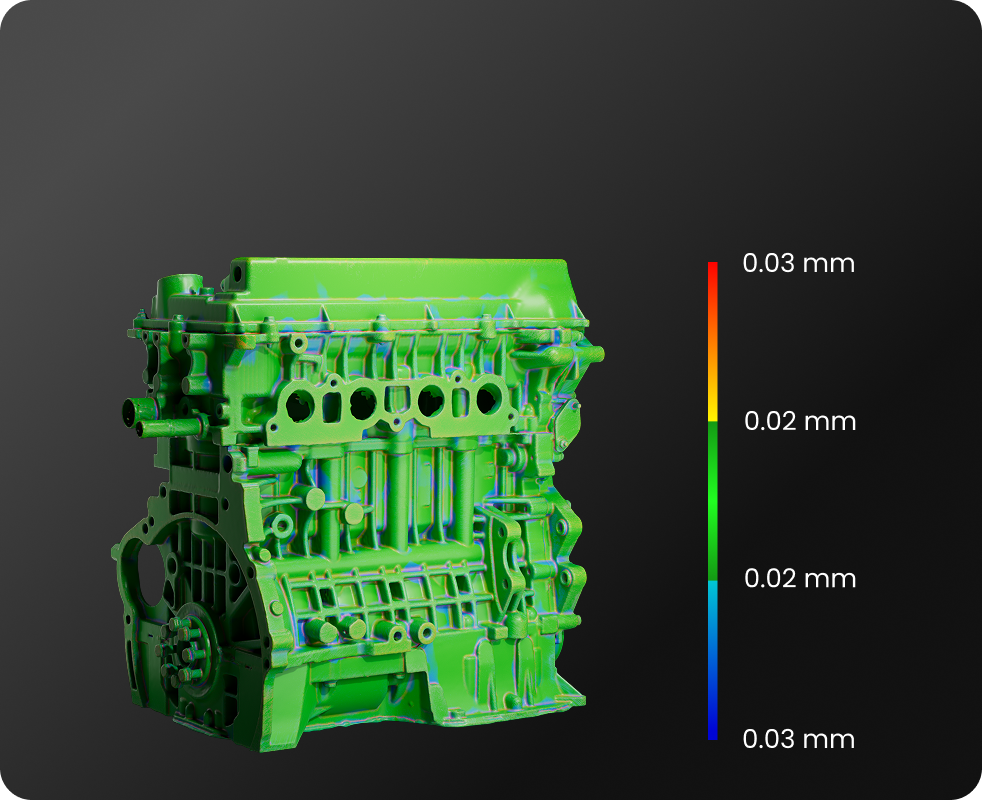

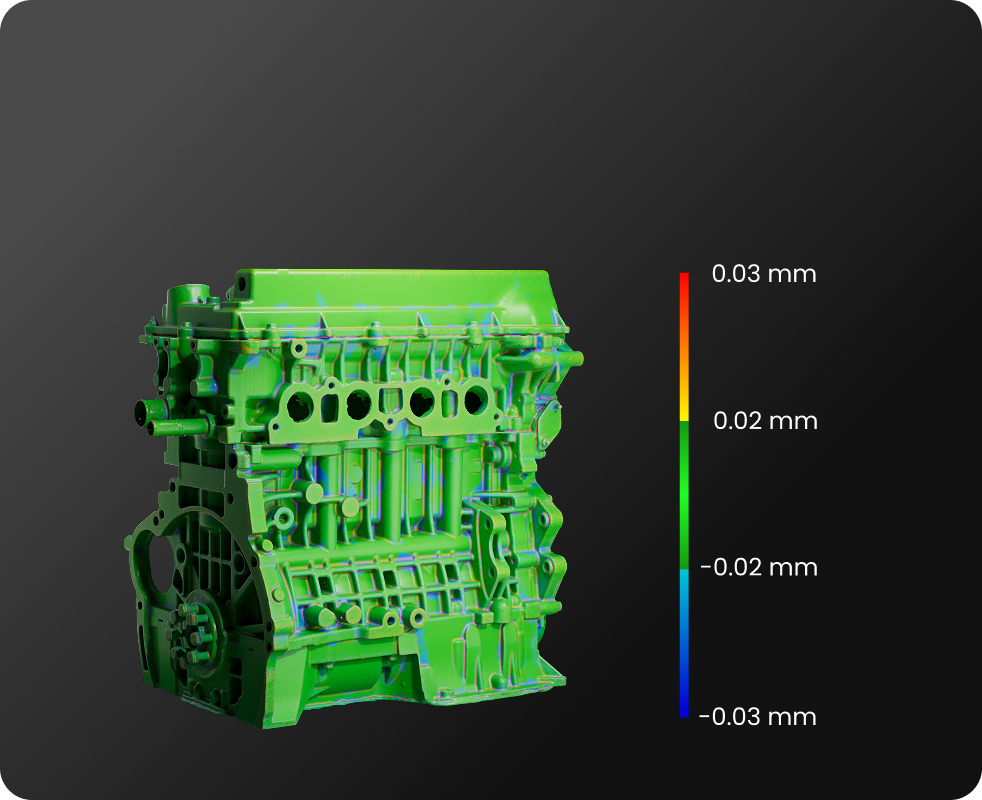

Accuracy That Engineers Trust

Capture every complex geometric detail to create accurate 3D models ready for
measurement, validation, and manufacturing decisions.

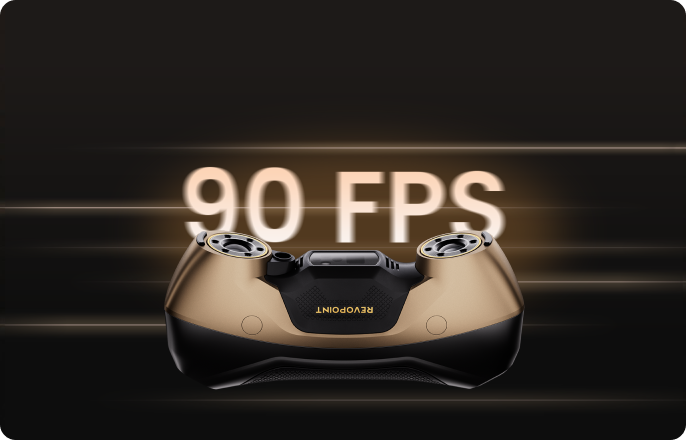

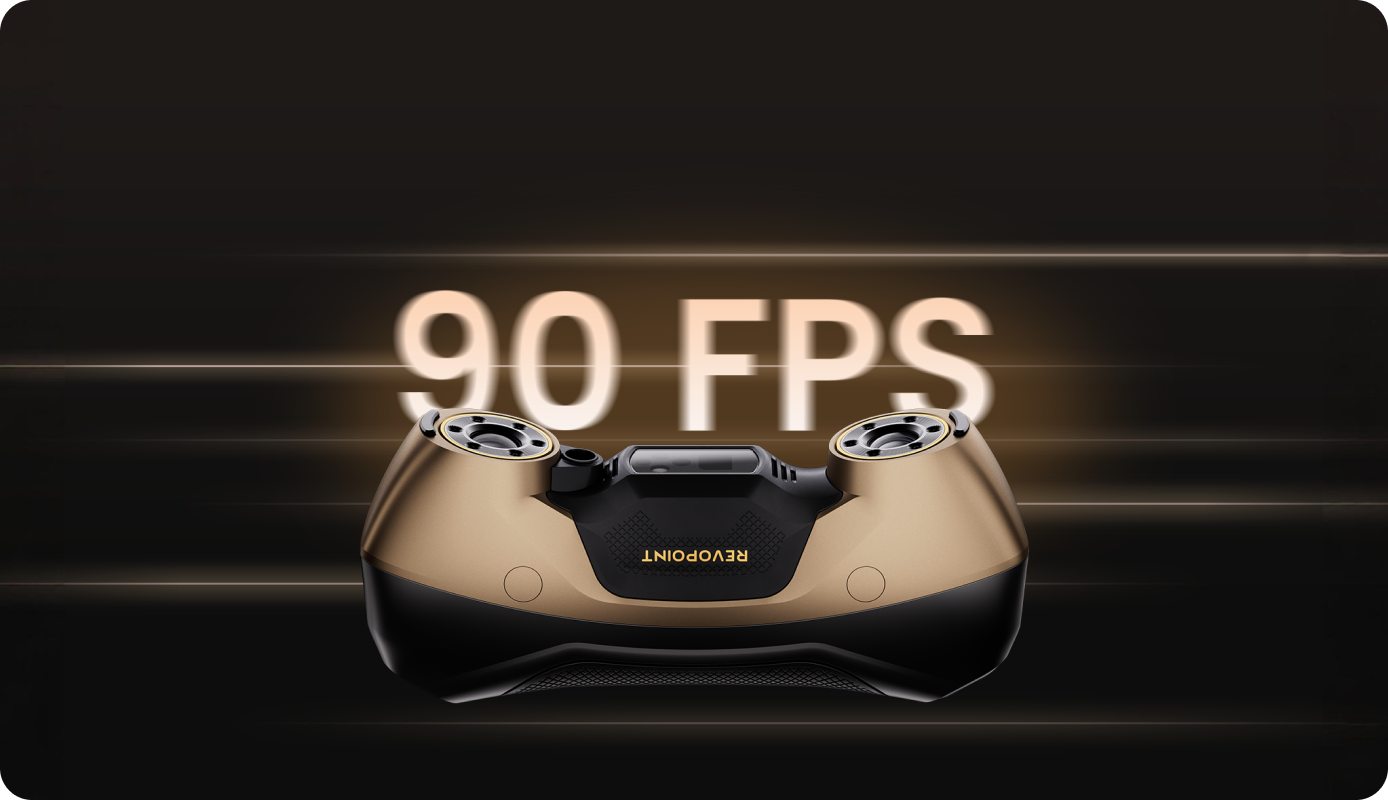

50% Faster Scanning Speeds
Up to 90 fps

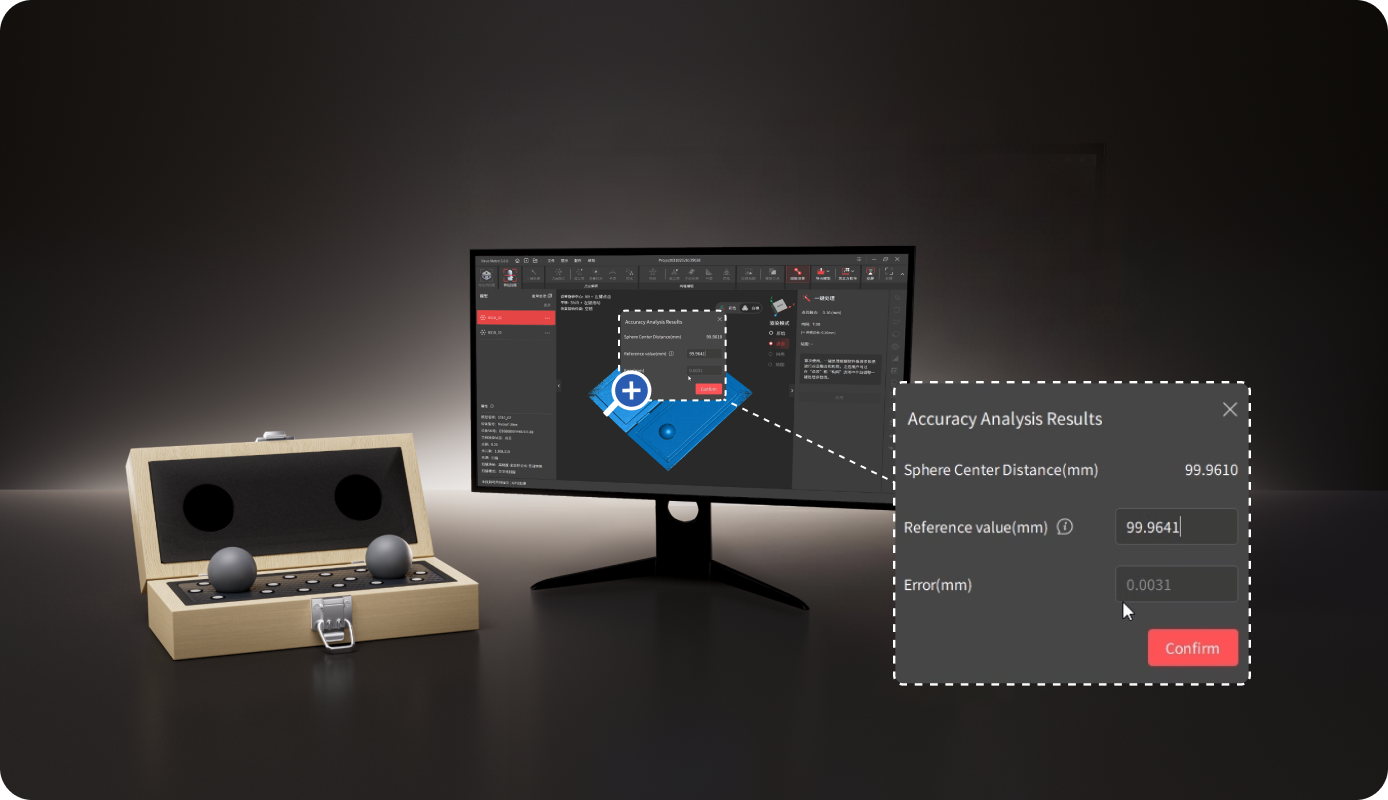

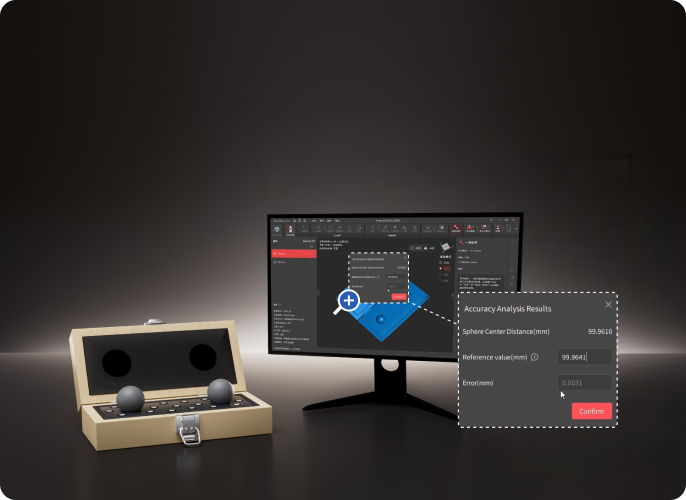

Accuracy You Can Measure

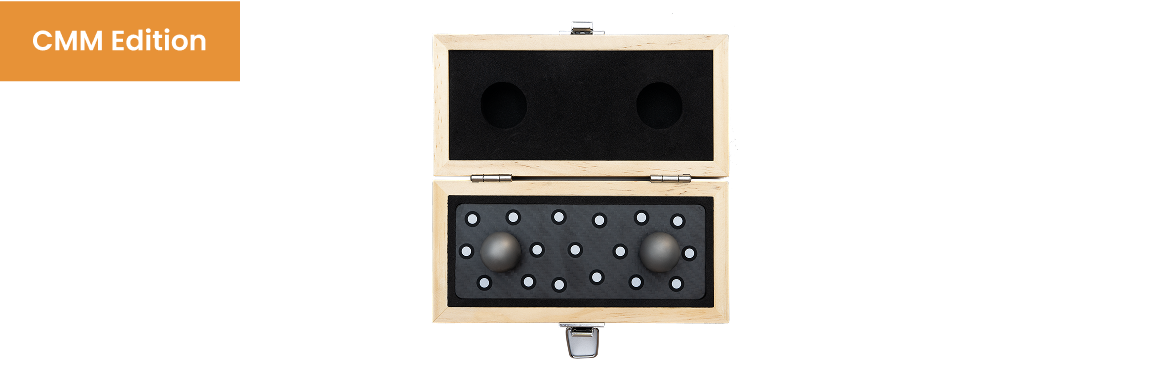

Verification with a Certified Ball Plate

On-site, Real-time Accuracy
Verification (CMM Edition)

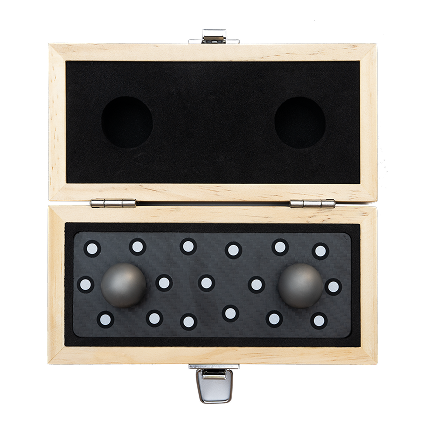

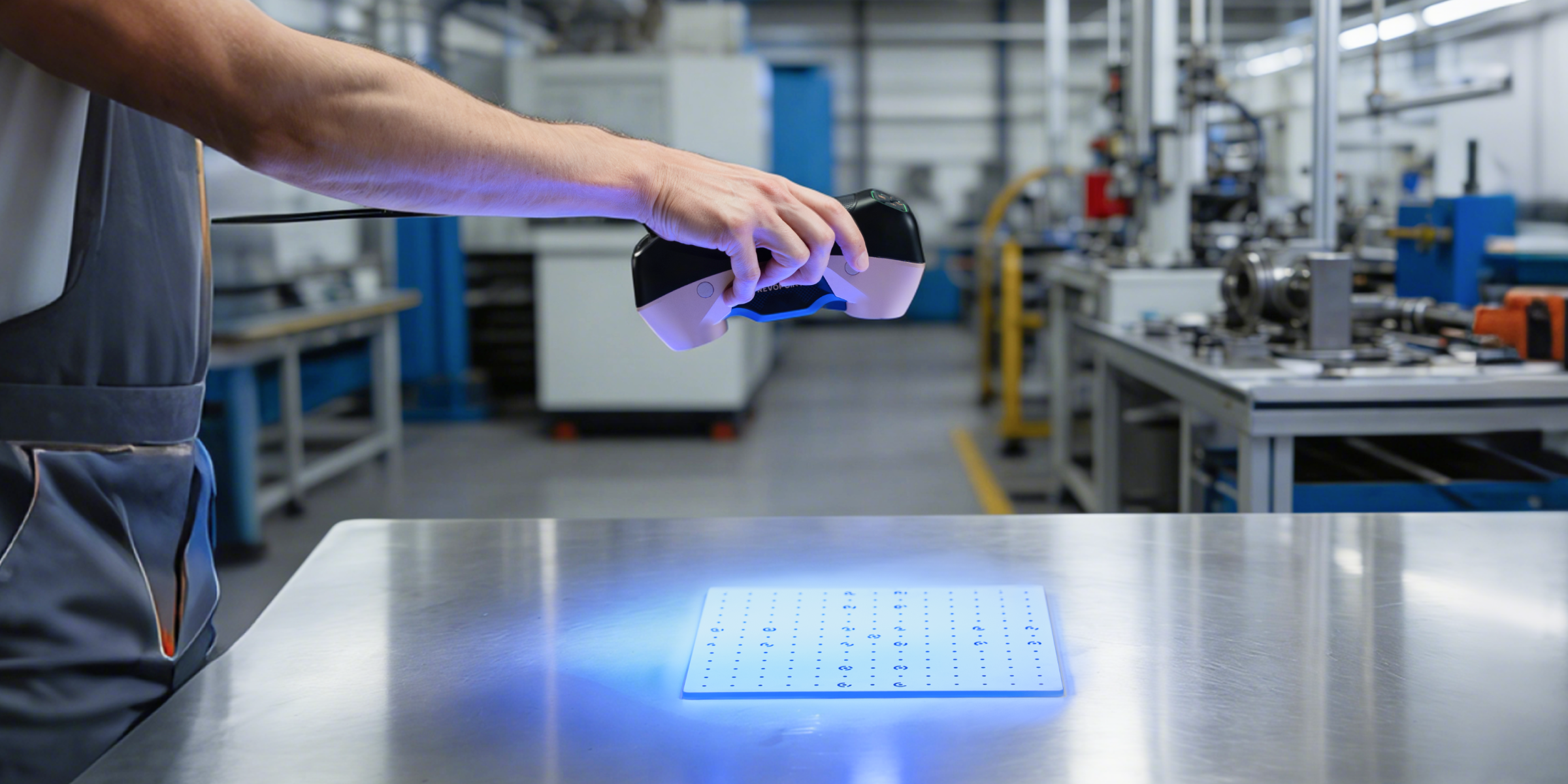

Ensure fast, reliable, on-site, real-time accuracy verification with the CMM-certified carbon fiber ball plate. Simply scan it, and Revo Metro will compare against your ball plate's unique metrology file to calculate volumetric deviation and confirm MetroY Ultra's performance.

*Included in the CMM Edition and sold separately.

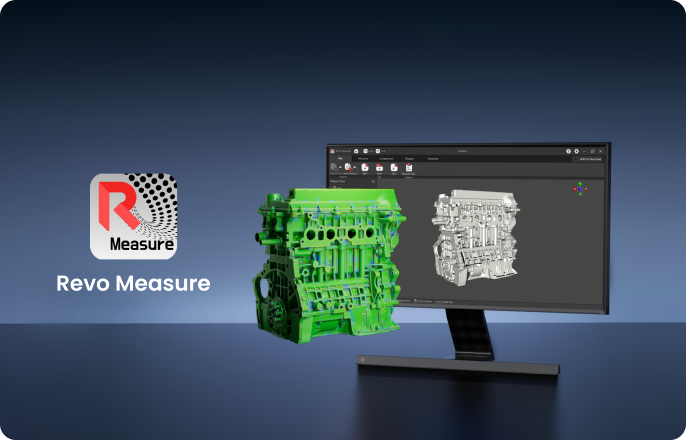

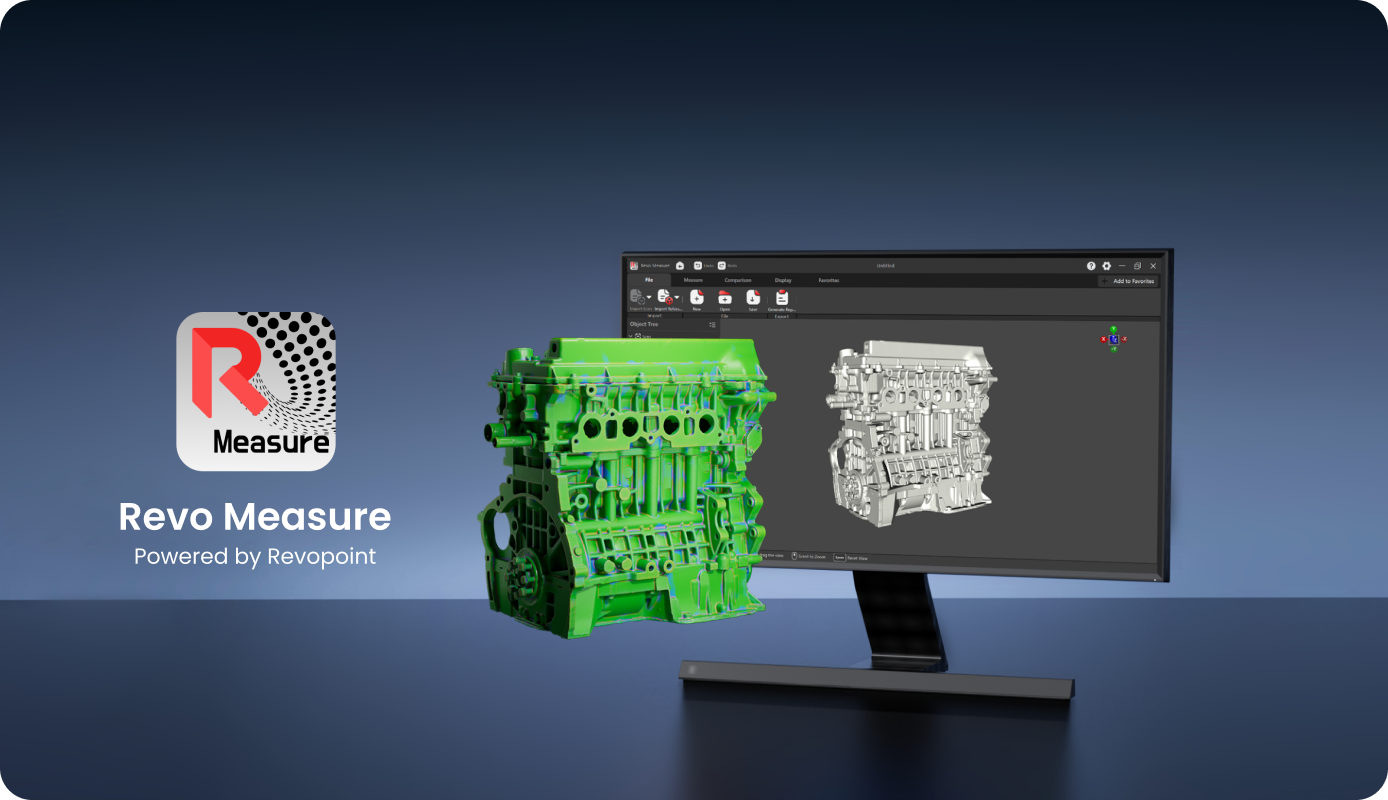

Certified 3D Measurement &
Inspection (CMM Edition)

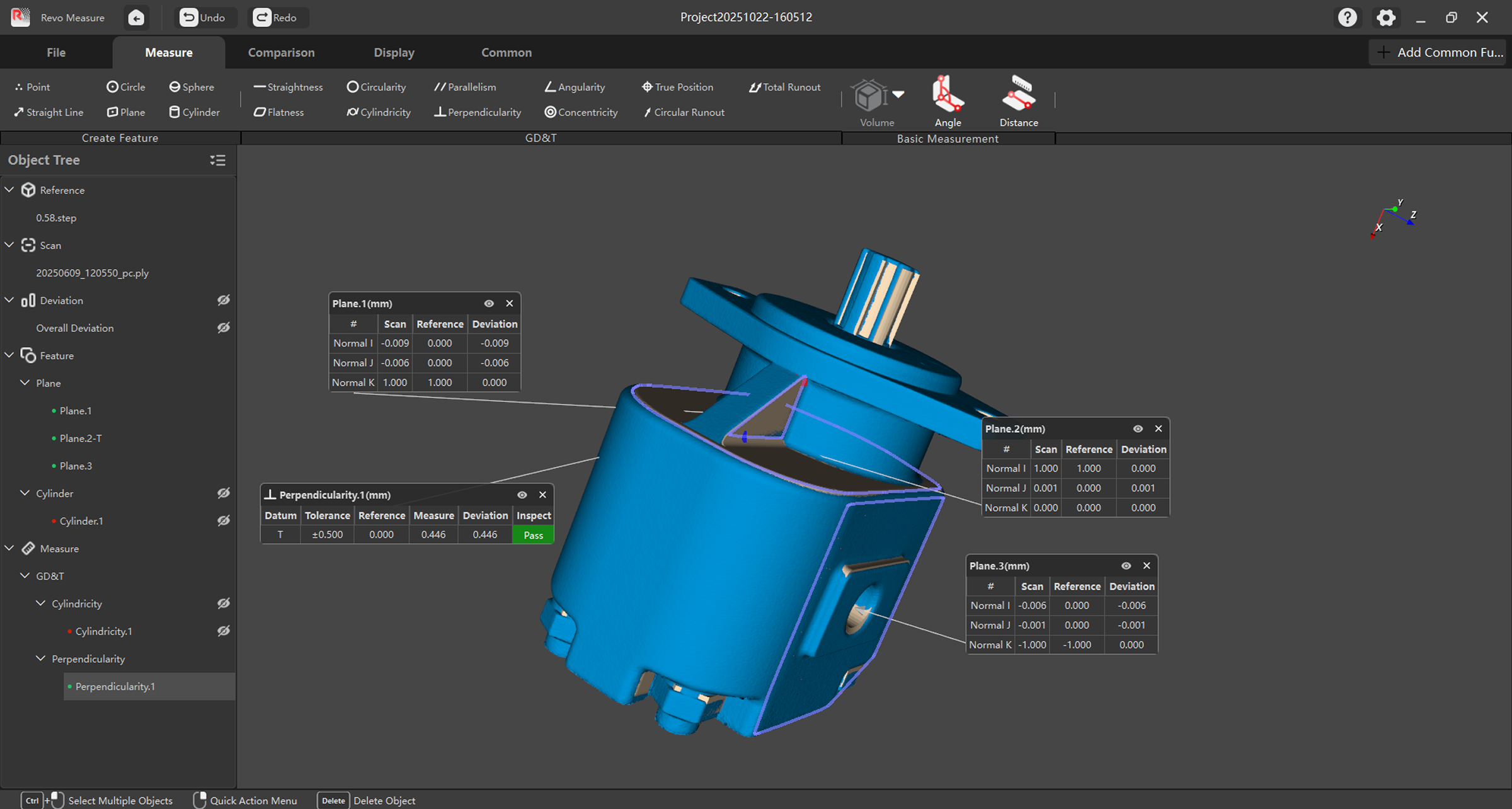

Transform your 3D scan data into accurate, verifiable measurements to ensure every part meets its design specifications. Powered by PTB-certified metrology algorithms, Revo Measure delivers reliable, standards-based inspection for critical engineering and quality control workflows.

Import the model created in Revo Metro in
Revo Measure with one click.

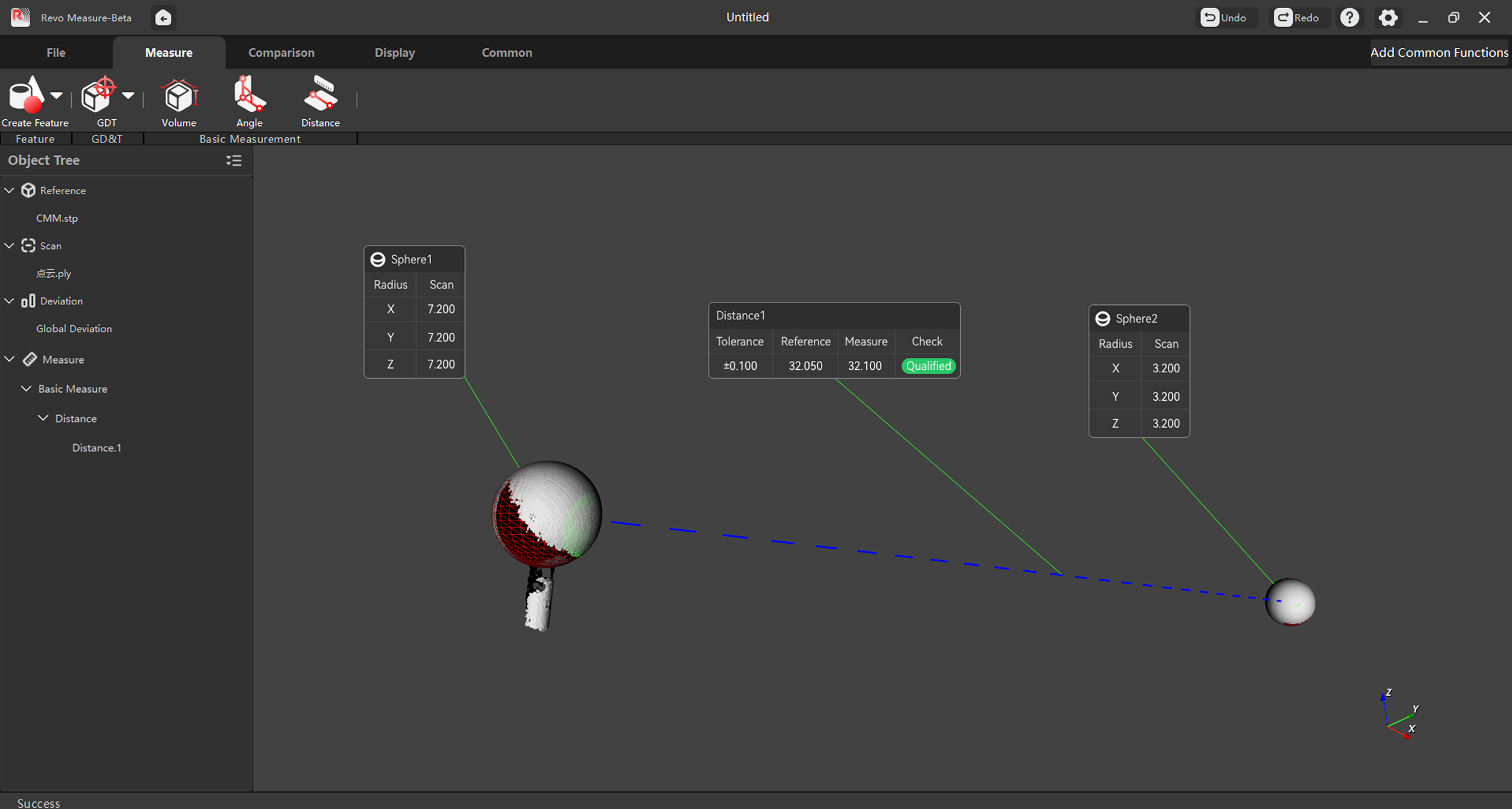

Measure key features, including shape, angles,
dimensions, and volume.

Perform GD&T measurements to check 11 types
of geometric tolerances.

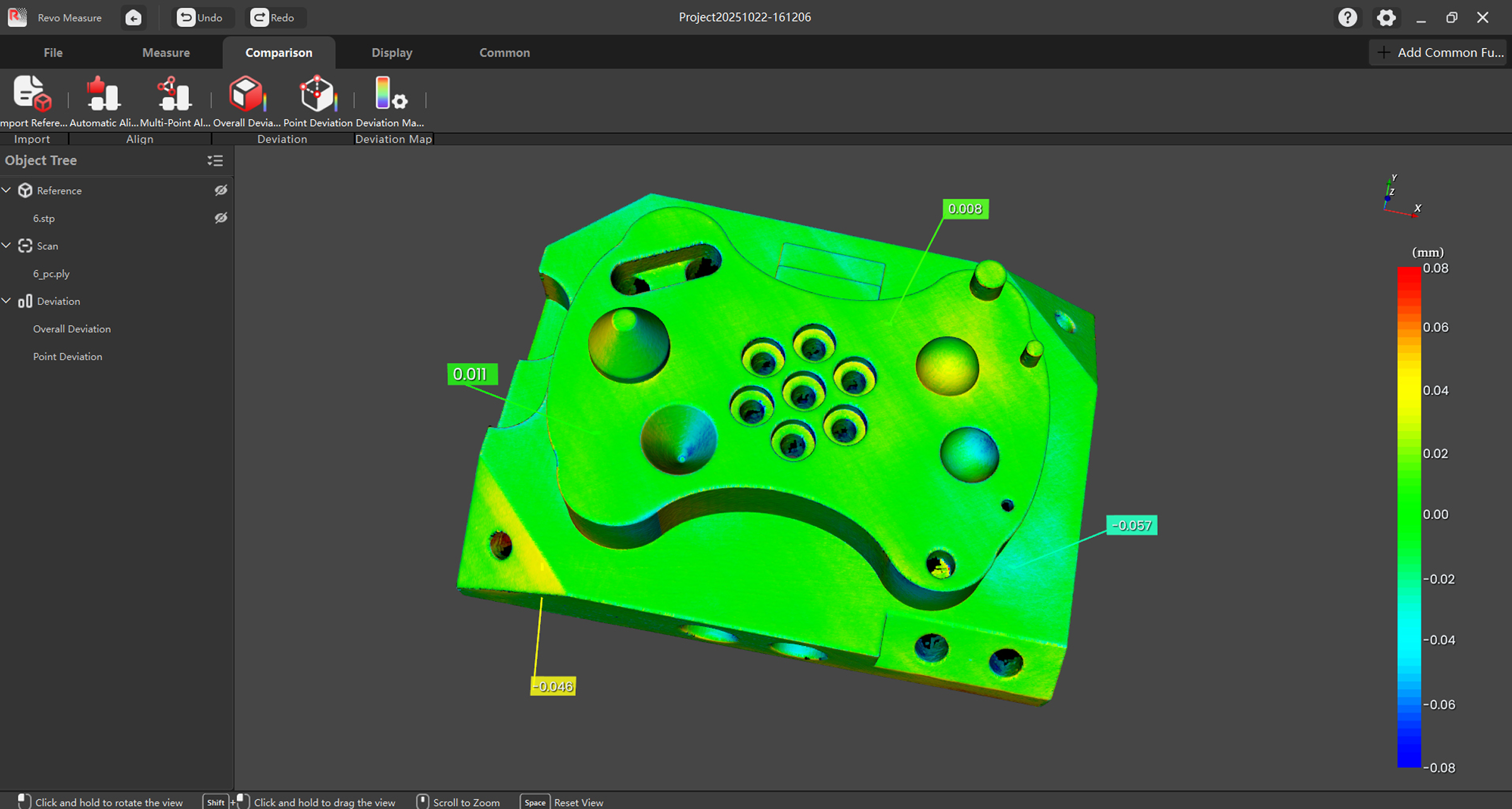

Quickly perform deviation analysis by importing CAD
files and comparing them to scan data.

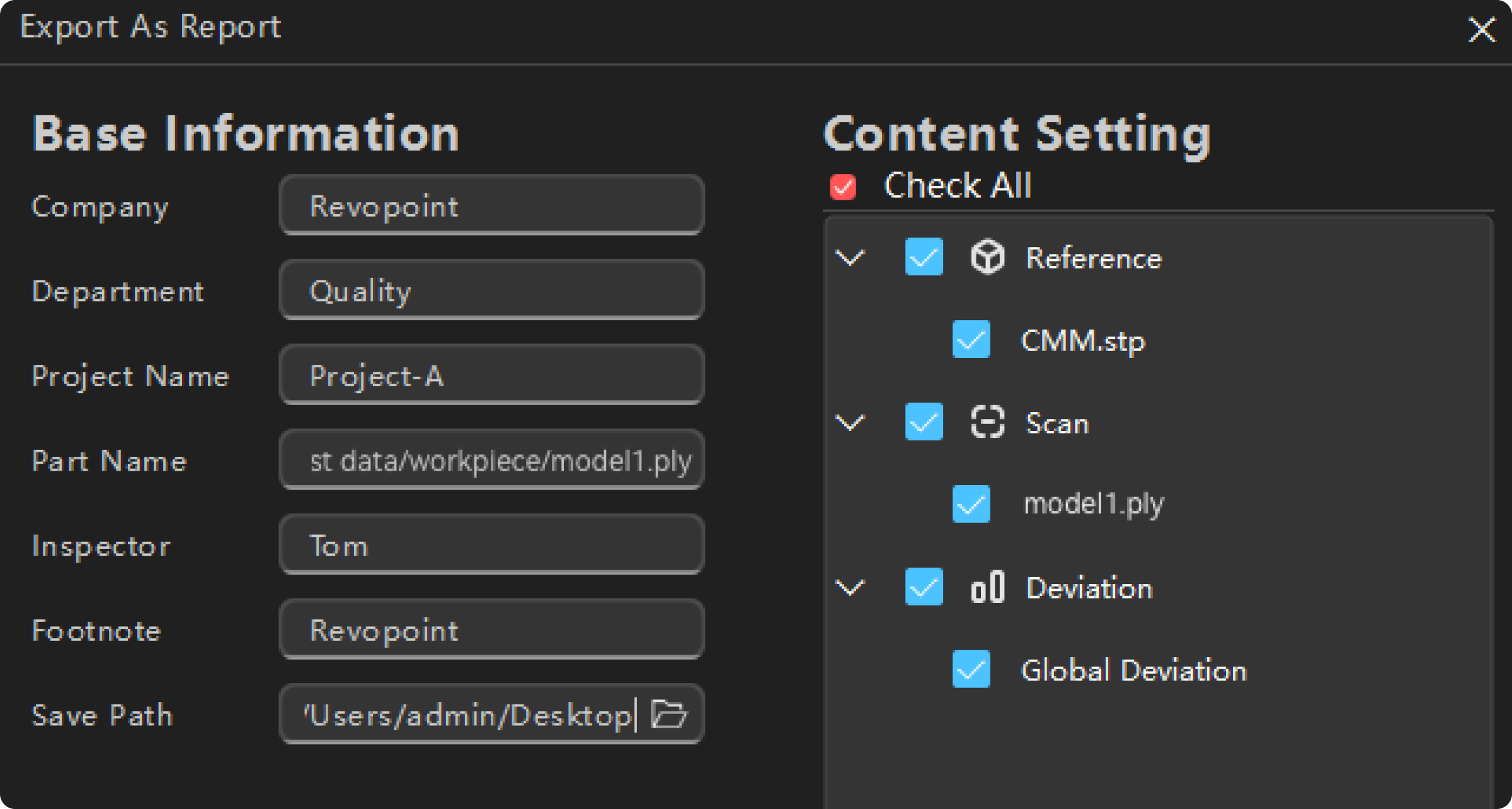

Export professional PDF reports with measurement data, deviation
charts, and color maps for easy presentation and archiving.

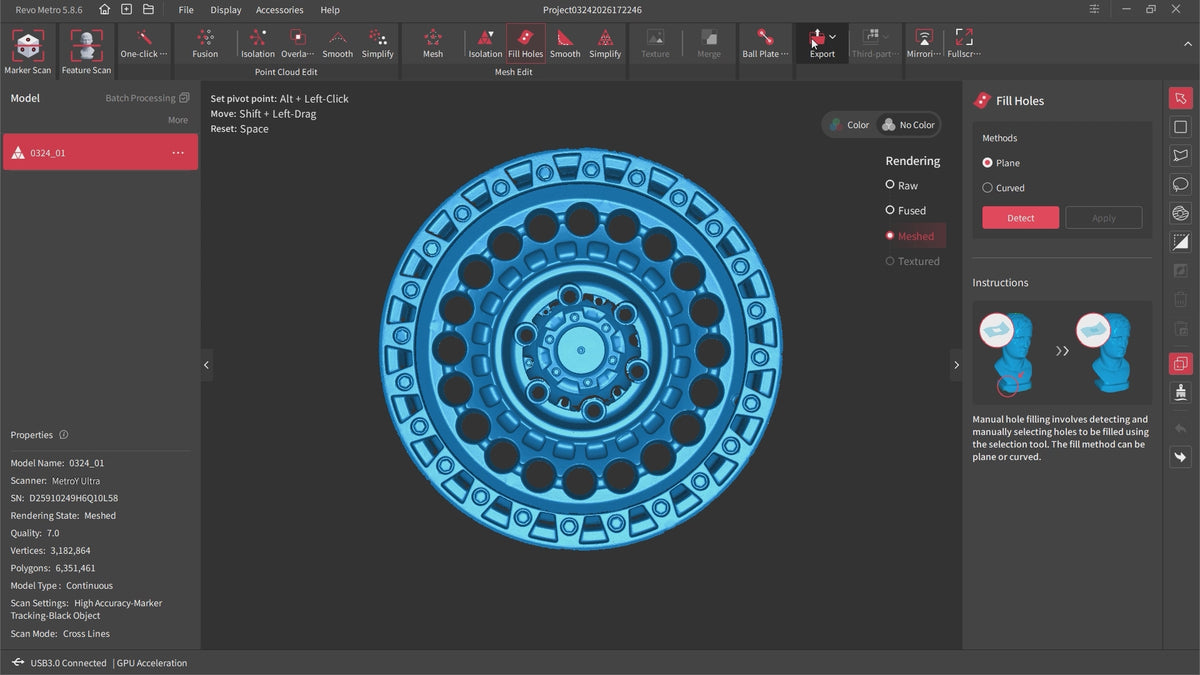

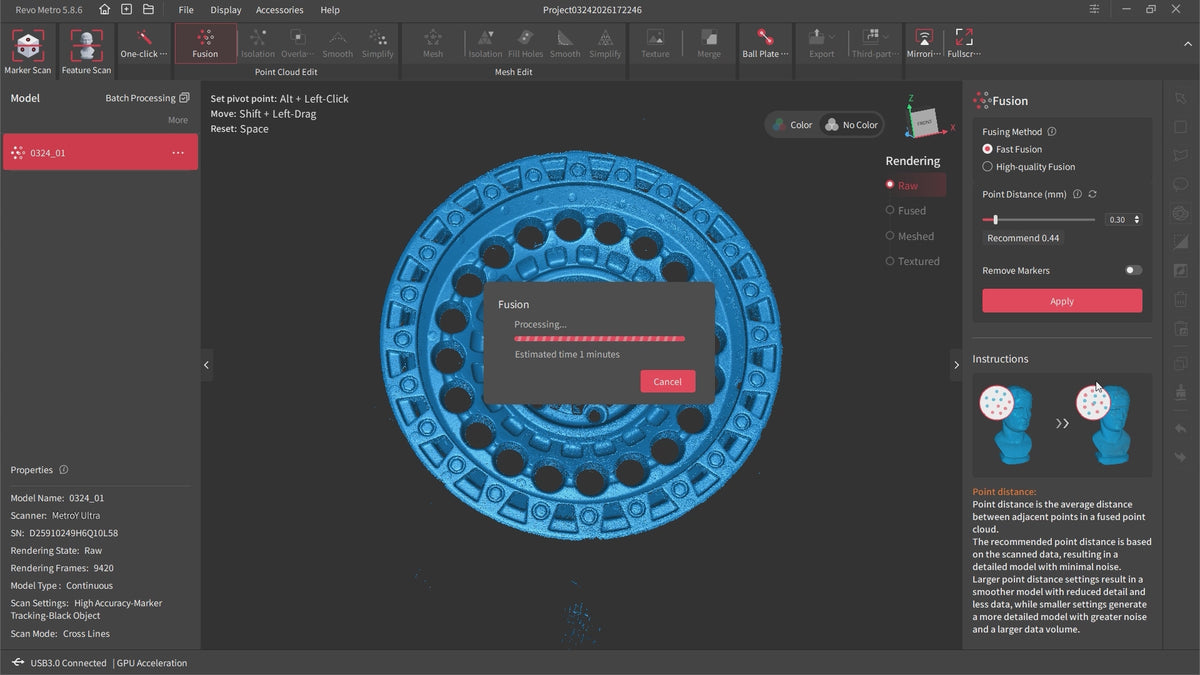

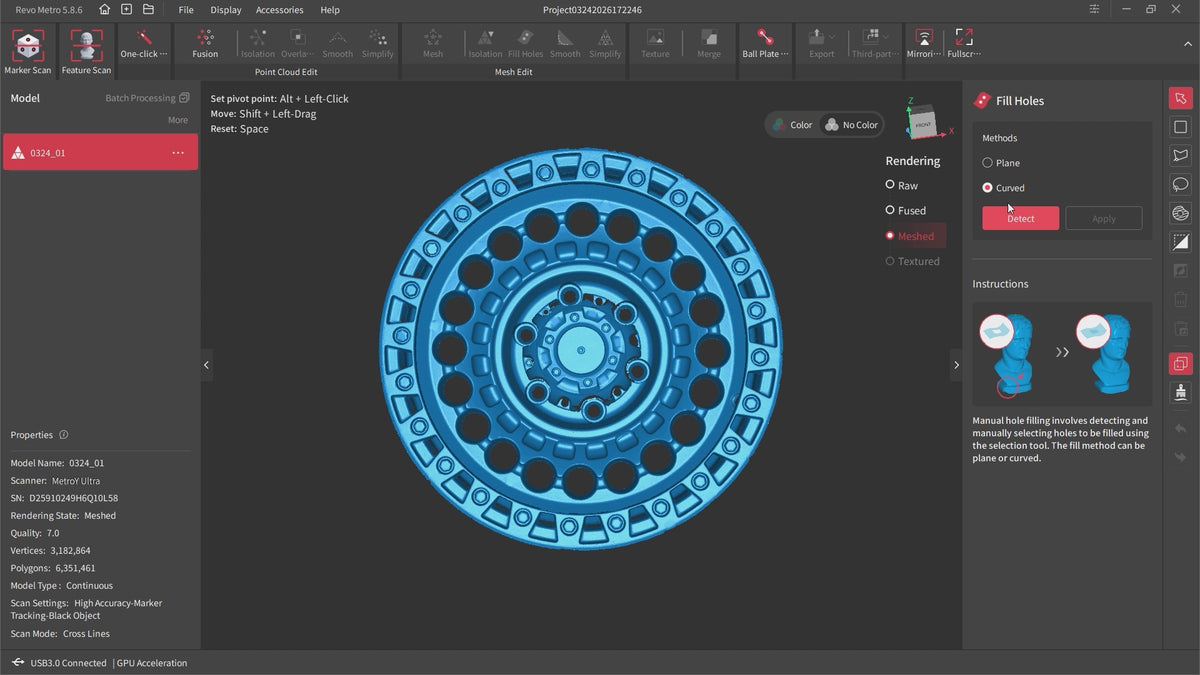

Revo Metro - Free Scanning Software

Intuitively create 3D models in four easy steps using MetroY’s free and powerful Revo Metro software.
Works On: Windows, macOS
Output Formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX

Scan Process Edit Export

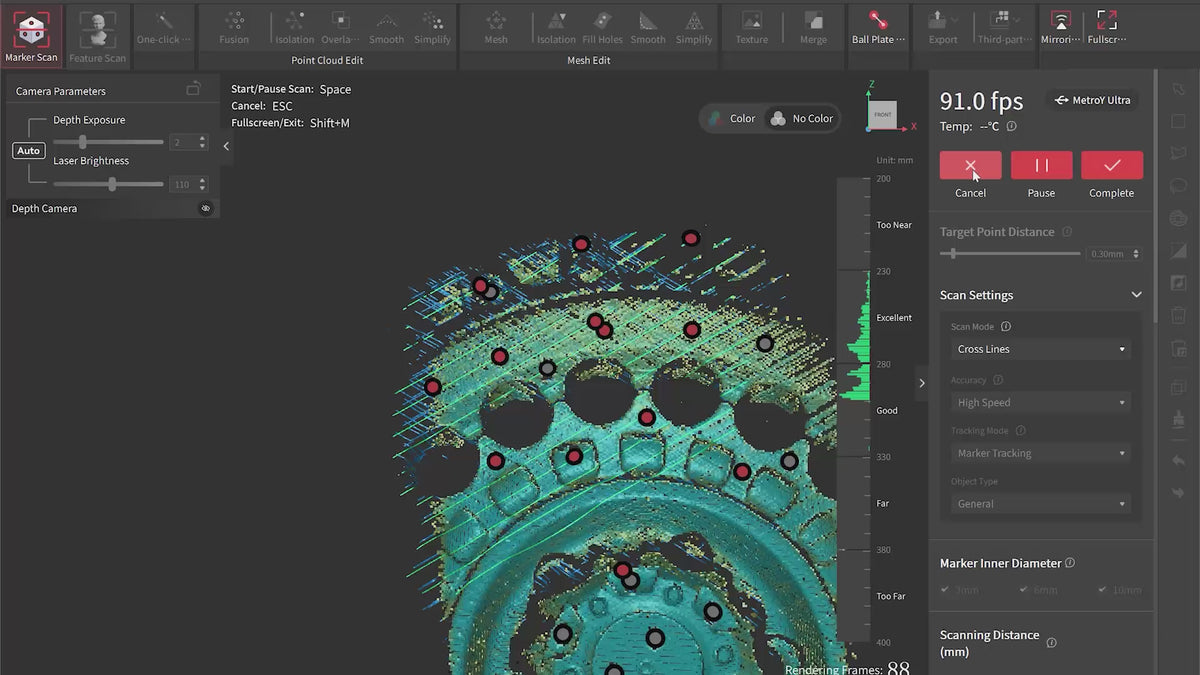

Granular scan settings let you control every aspect of the scanning
process, ensuring optimal point cloud capture. Ensure a perfect scan with
real-time point cloud monitoring to check if you've captured enough data.

Scan With Flexibility

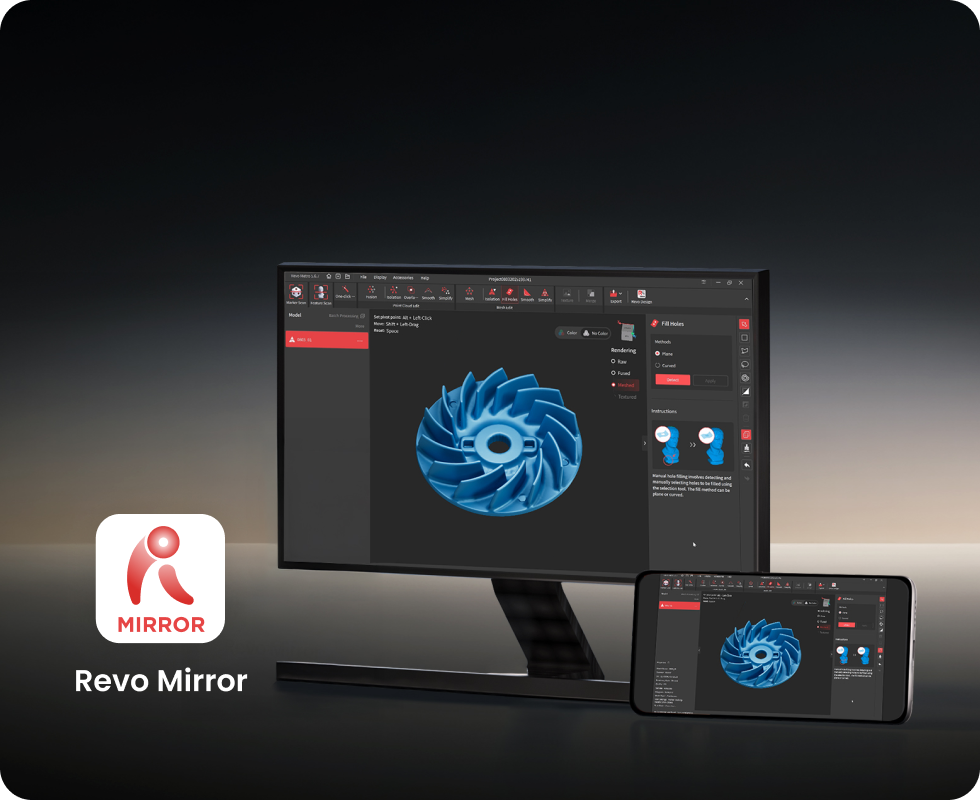

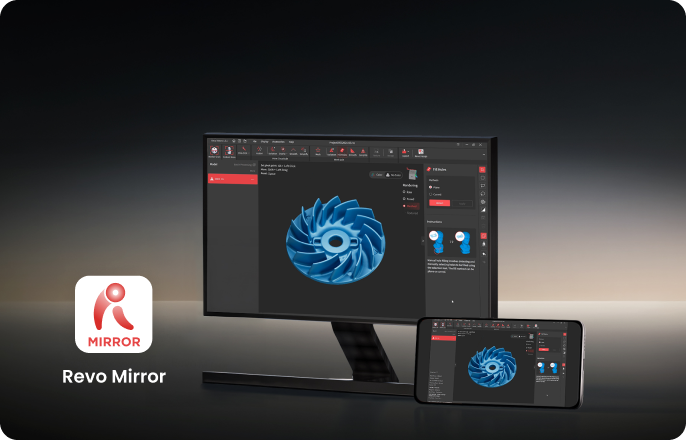

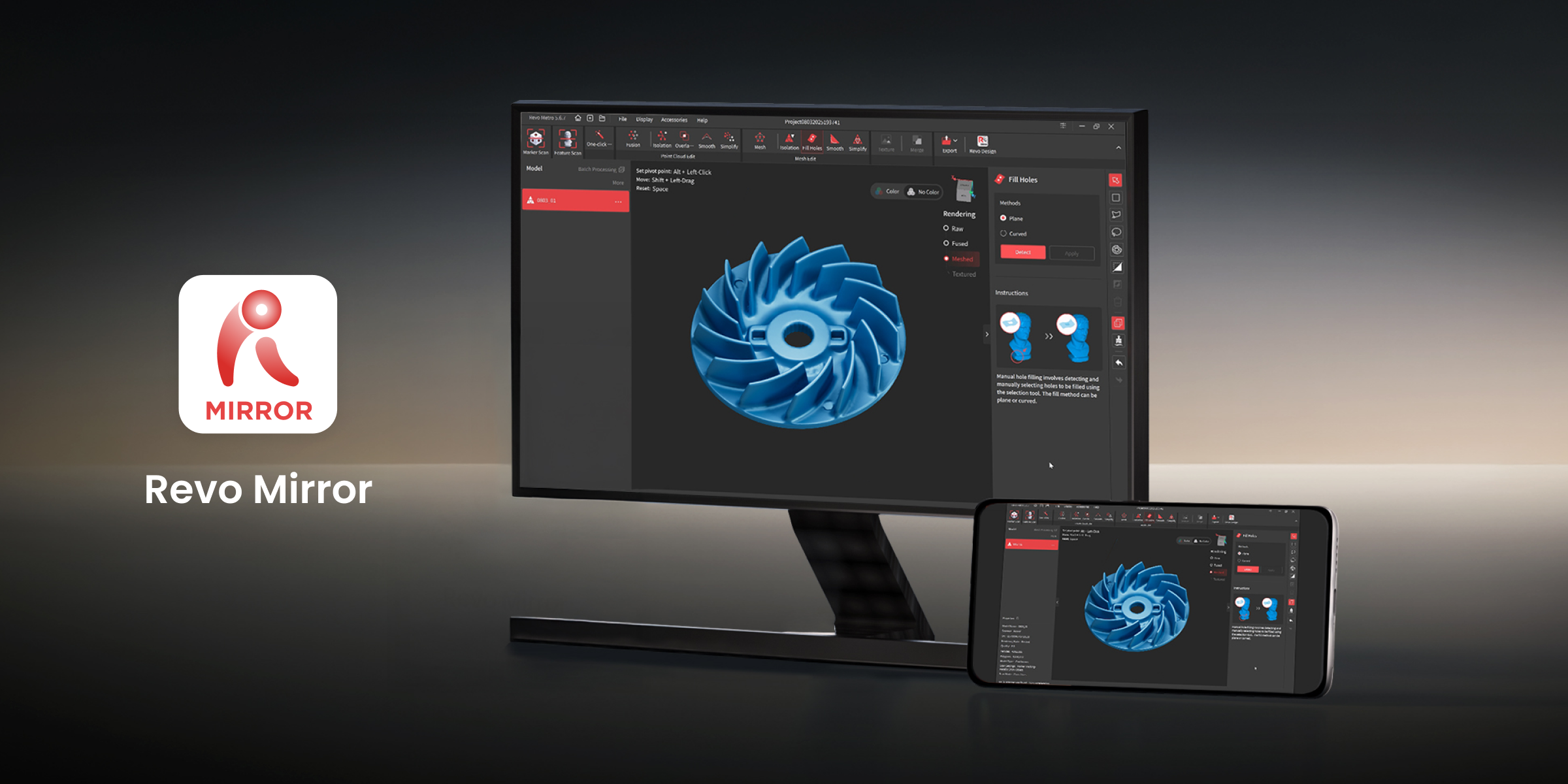

Wireless Scanning

Move freely with MetroY Ultra by streaming your scan in real time via Wi-Fi 6, using your PC’s
processing power, and displaying live feedback on Revo Mirror* on your device or monitor.
Instantly identify blind spots or missing data while performing scans.

*Works on: Windows, macOS, iOS, Android

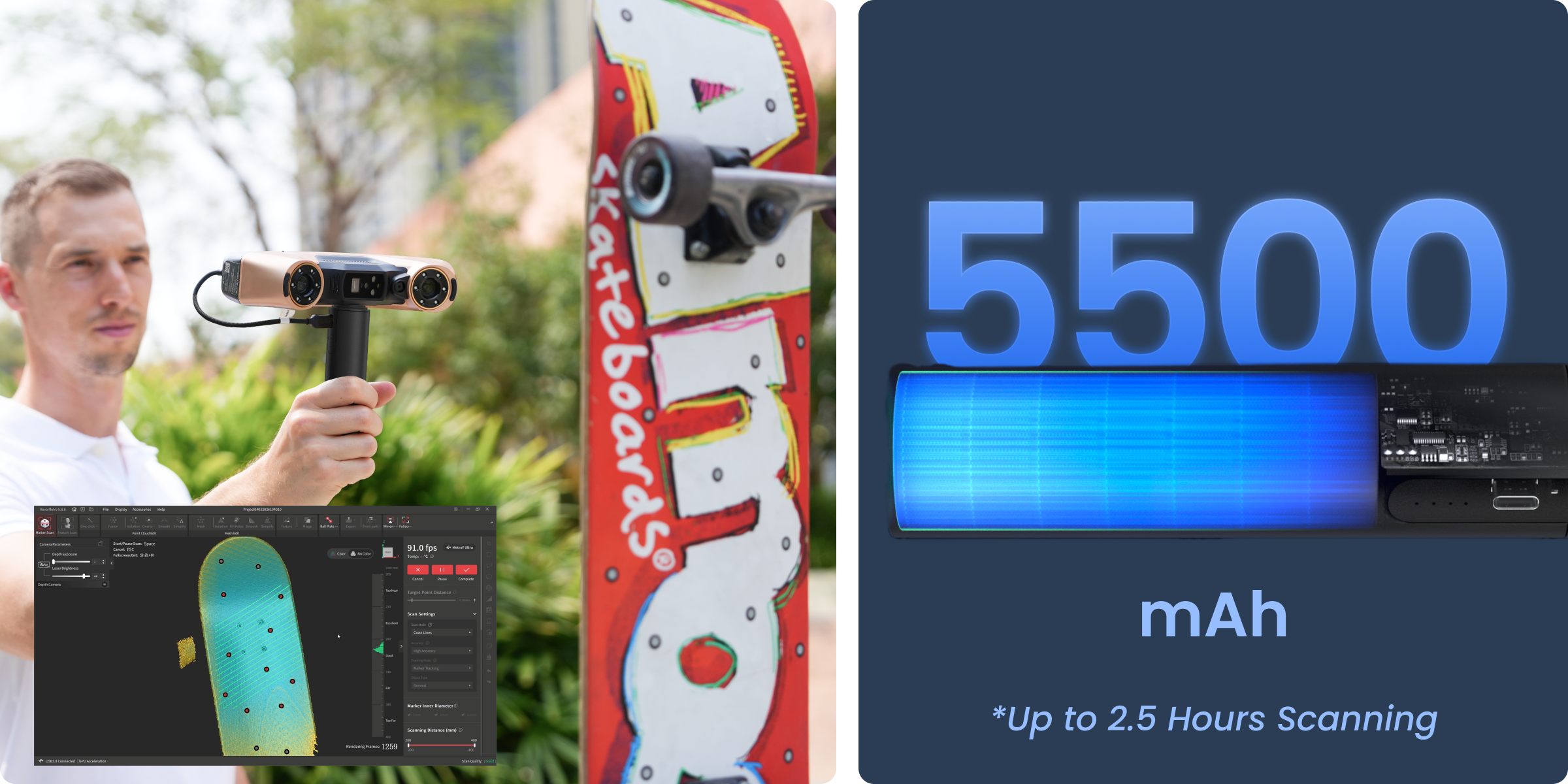

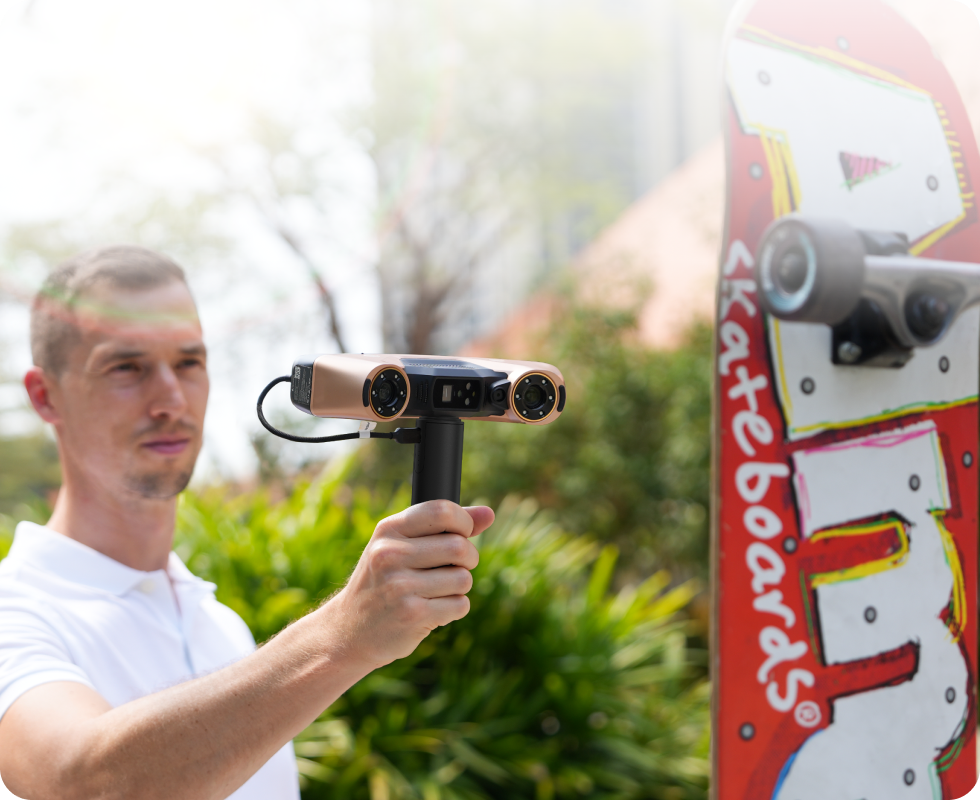

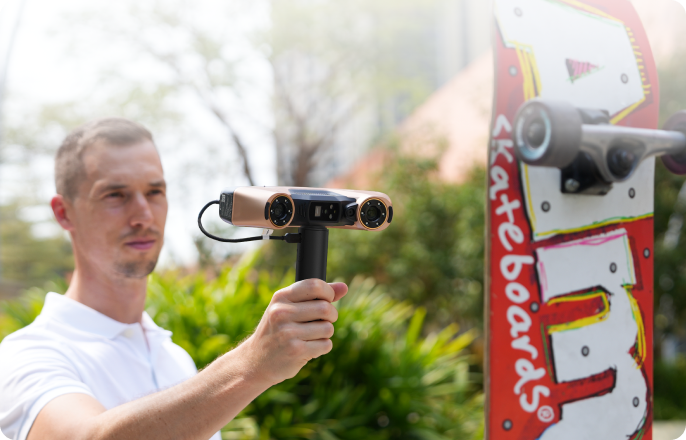

Outdoor Laser Scans

Capture industrial parts even in harsh sunlight up to 100,000 lux with MetroY Ultra's powerful laser-

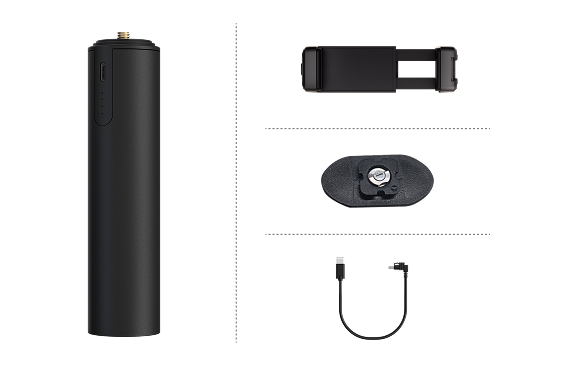

scanning modes. The included Battery Grip provides up to 2.5 hours of continuous scanning.

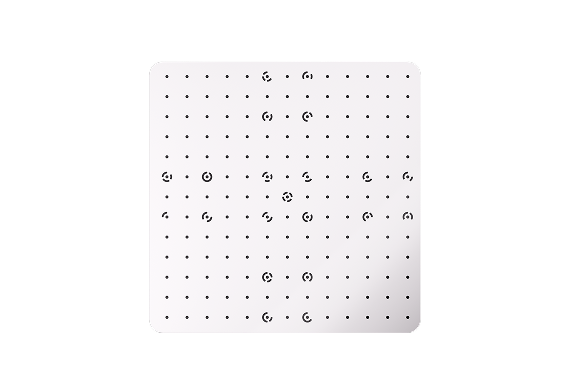

Precision Calibration System

Ensure your MetroY Ultra 3D scanner maintains its accuracy and reliability using the
included photolithographic calibration board.

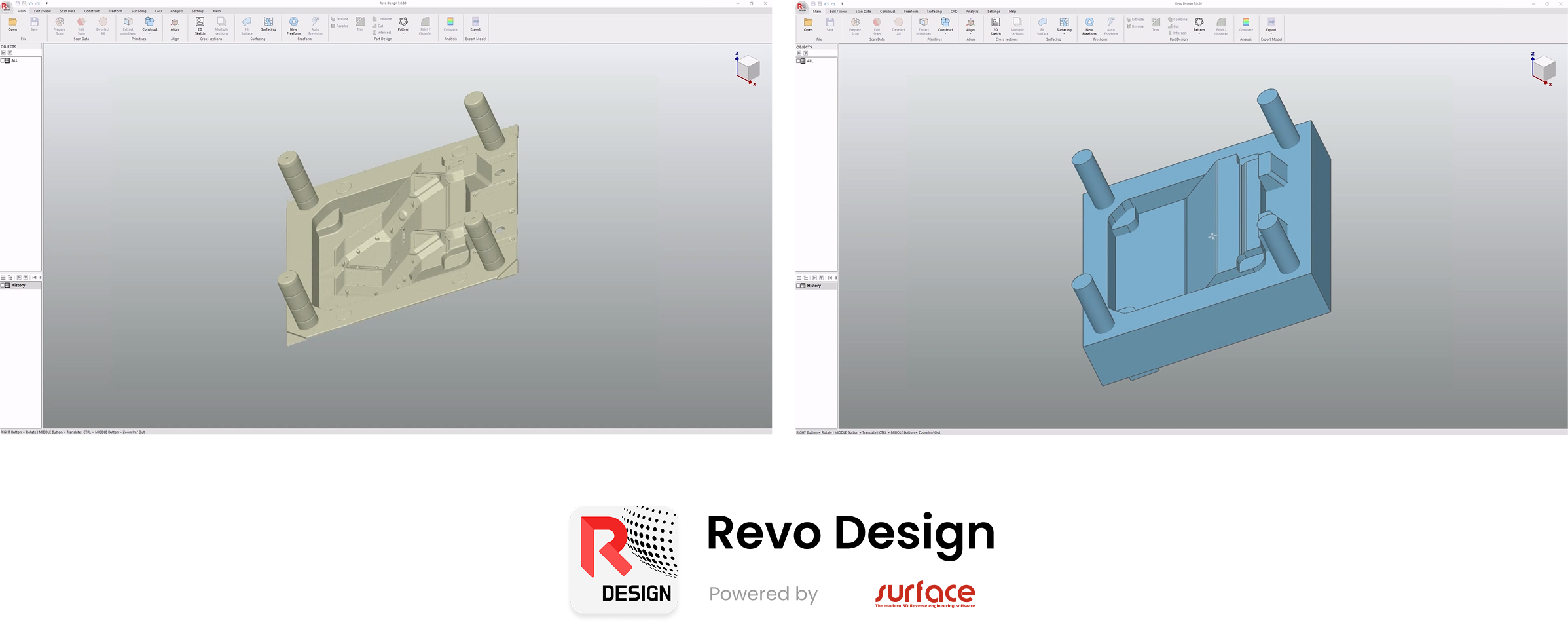

Revo Design - Scans-to-CADs

Simplify converting 3D scan data into CAD with Revo Design. Featuring powerful tools for
mesh editing, freeform and parametric modeling, and scan-to-CAD workflows, Revo
Design is perfect for reverse engineering, product development, and industrial design.

Professional Solutions

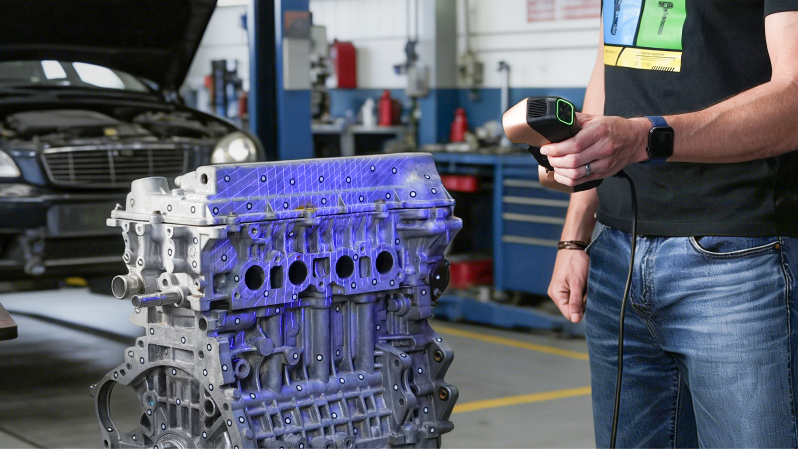

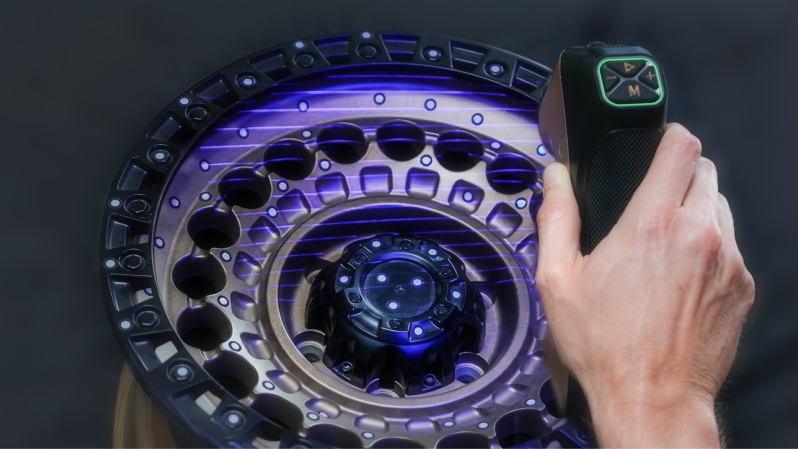

Reverse Engineering

Capture detailed geometry for high-accuracy CAD reconstruction with the MetroY Ultra’s up to 0.015 mm accuracy and versatile multi-mode blue-light scanning.

Rapid Prototyping

Minimize iterations, save time and resources, and ensure design compliance with the MetroY Ultra, capturing accurate dimensional data for streamlined prototyping.

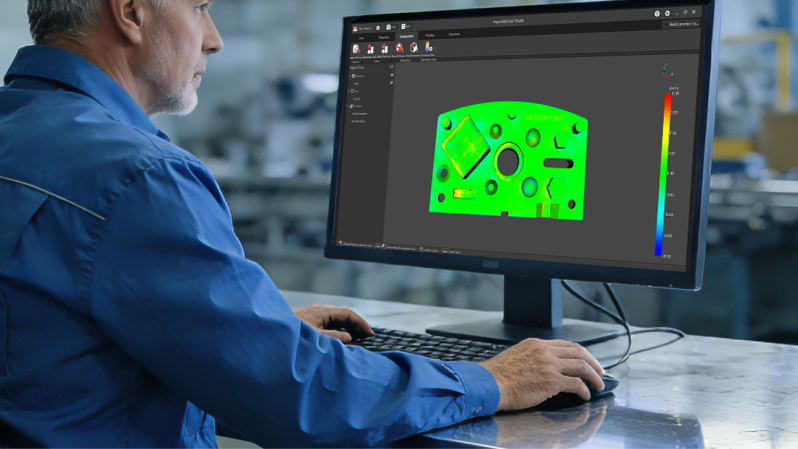

Quality Control

Verify complex workpieces quickly with the MetroY Ultra and Revo Measure, enabling rapid fault identification.

Additive Manufacturing

Whether for reproduction, repair, or redesign, the MetroY Ultra enables you to create an accurate digital twin of any small to medium-sized object.

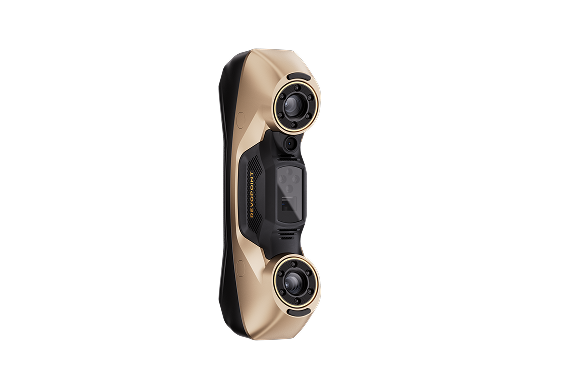

MetroY Ultra Specifications

Name	MetroY Ultra
Scanning Type	Handheld and Desktop
Technology	Multi-line Laser Scan and Full-field Structured Light Scan
Scannable Object Size	Small to Medium
Single-frame Precision, up to*	0.01 mm
Single-frame Accuracy, up to*	0.015 mm
Volumetric Accuracy	0.015 mm + 0.04 mm × L (m), L is the length of the object.
Fused Point Distance, up to	0.05 mm
Working Distance	200 ~ 400 mm
Single Capture Area at Nearest Distance	152 × 138 mm at 200 mm
Single Capture Area at Furthest Distance	332 × 276 mm at 400 mm
Angular Field of View (H × V)	49 × 38°
Minimum Scan Volume	10 × 10 × 10 mm
Maximum Scan Volume	2 × 2 × 2 m
Scanning Speed, up to	NVIDIA GPU: 90 fps CPU: 60 fps
Point Return Rate	Multi-line Laser Scan: 3,000,000 Points/s Full-field Structured Light Scan: 7,000,000 Points/s
RGB Camera Resolution	2 Megapixels
Color Scanning	Only in Auto Turntable Mode and Laser Line Marker Mode
Tracking Methods	Marker, Global Marker, Feature
Outdoor Scanning*	Yes （Multi-line laser mode enables scanning in lighting environments of up to 100,000 lux）
3D Light Source*	34 Blue Cross Laser Lines 15 Blue Parallel Laser Lines 1 Blue Deep Hole Single Laser Line 62 Line Blue Full-field Structured Light
Fill Lights*	12 Blue LEDs
CPU	4 core ARM, 2.0 GHz
Built-in Chip Computing	Depth Computing
Buttons	4
Minimum PC Requirements*	macOS CPU: M2 Pro RAM ≥ 16GB Windows CPU: Intel i7 13th Gen or AMD Ryzen 7 5800 RAM ≥ 32GB GPU: NVIDIA GeForce RTX 3060 (8GB) Note: ① If you're unsure about the CPU configuration, please ensure that the CPU has cores≥8, threads≥16, and a base frequency ≥2.4GHz. ② Only in Laser Line Scanning modes, a dedicated graphics card is required for acceleration. AMD and MAC GPUs do not currently support acceleration.
Recommended PC Requirements*	macOS CPU: M4 Pro or better RAM ≥ 24GB Windows CPU: Intel i9 12th Gen or better RAM ≥ 64 GB GPU: NVIDIA RTX 4060 (8 GB) or better
Compatible Operating Systems	Windows 10/11 (64-bit), macOS 11.0 or better
Output File Formats	PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
Ready to Print 3D Models	✔
Wi-Fi	6

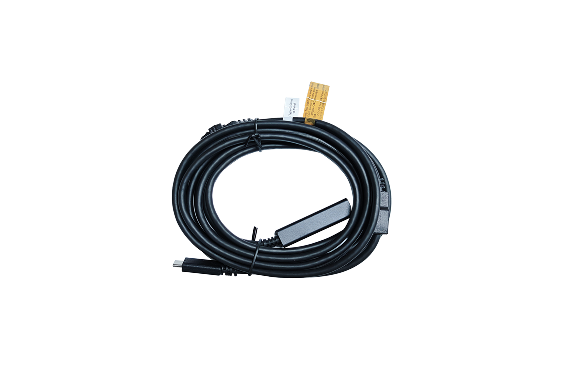

Connector Type	USB Type-C to Type-C

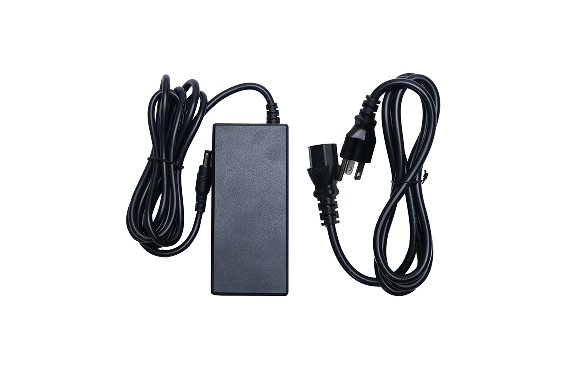

Power Requirements	DC 12V, 3A
Scanner Weight	450 g
Dimensions (L × W × H)	211 × 94 × 47 mm
Special Object Scanning	Please use scanning spray when scanning transparent or specular surfaces in Laser Line modes. Using scanning spray is recommended when scanning transparent, black, specular, or highly reflective surfaces in Full-Field Structured Light modes.
User Recalibration	Yes
Power Bank Capacity	5500 mAh ( When MetroY Ultra using the Battery Grip, the average battery life is approximately 2.5 hours.)

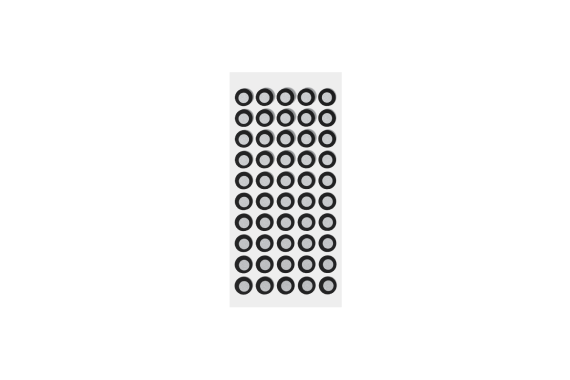

Supported Accessories	Marker Block Kit, Mobile Kit (4th Gen), Dual-axis Turntable, Ball Plate
Notes	1. Precision is how close repeated measurements of the same object at a single angle are to each other. Accuracy is how close a measured value at a single angle is to the actual (true) value. They were both acquired in a controlled lab environment. Actual results might vary, subject to the operation environment. 2. Class 2M Laser Safety Tips: (1) The product uses a Class 2M laser projector. Avoid looking directly at it at close range! Please refer to the Class 2M laser standard document for details. (2) To avoid retina damage, don't look directly into the laser beam through optical instruments capable of magnifying it (e.g., telescopes, and camera lenses). (3) To prevent laser reflection, avoid placing reflective surfaces like mirrors or glass in the path of the laser beam. 3. This product has flashing lights, which may not be suitable for people with photosensitive epilepsy. 4. If you're unsure about the CPU configuration, please ensure that the CPU has cores≥8, threads≥16, and a base frequency ≥2.4GHz.
