Revo Measure Basic is professional 3D metrology software that evaluates shape, dimensions, and quality directly from point cloud and mesh data. Seamless one-click integration with Revo Scan ensures a smooth and efficient measurement workflow.
*Supported Languages: English, Chinese, Traditional Chinese, French, German, Italian, Spanish, Japanese, Korean, Russian, Portuguese, Turkish.
PTB Certification: Verified Accuracy You Can Trust
The measurement algorithms in Revo Measure have undergone comprehensive evaluation by PTB (Physikalisch-Technische Bundesanstalt), Germany’s Federal Institute of Metrology. This certification confirms that Revo Measure meets internationally recognized standards for precision and reliability.
Accurate Dimension Measurement
Accurately extract key parameters, such as dimensions, angles, and volume, through high-precision measurement of point clouds and meshes.
Intelligent Deviation Analysis
Quickly identify machining deviations or assembly issues using detailed color maps that highlight overall or localized errors. Supports importing CAD models for rapid comparison and deviation analysis between scanned and CAD models.
3-2-1 Alignment
Align scan data to CAD models with high precision using seven plane-axis-point sequence combinations. Delivers stable, reliable results for complex parts and conical or cylindrical components.
Flexible Coordinate System Creation
Define origins and axes using numerical input, feature selection, or translation/rotation to unify measurement references across all tasks.
One-Click Template Measurement
Perform a measurement process, save it as a template, and reuse it for automated batch processing. Real-time file monitoring automatically detects and measures new files, greatly enhancing inspection efficiency.
One-Click Feature Recognition and Creation
Automatically identify circular, cylindrical, spherical, planar, and conical features from CAD models with a single click. Batch creation replaces manual selection, significantly improving efficiency.

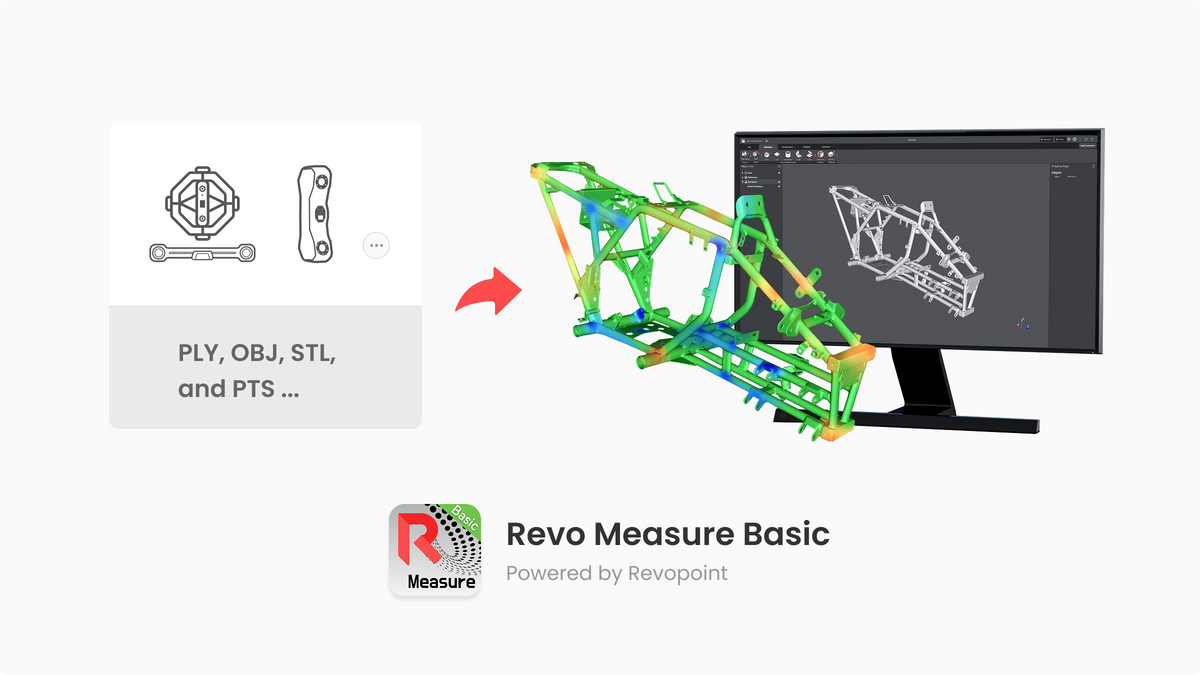

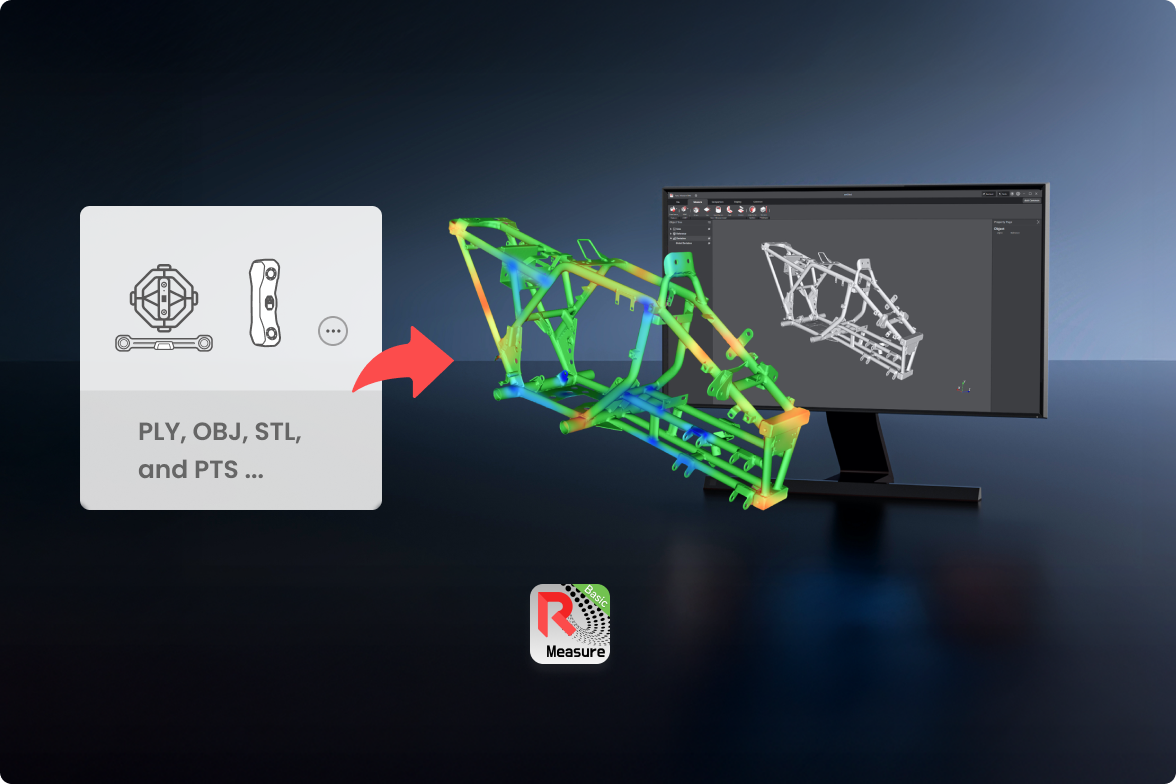

Support for Multiple Data Formats
Works seamlessly with 3D scanners and supports importing CAD models, point clouds, and mesh files in major formats like PLY, OBJ, STL, and PTS, ensuring broad compatibility.
Texture Mapping Visualization
Enhance measurement accuracy and presentations with color-mapping data captured during the scan, making it easier to interpret and visualize details.

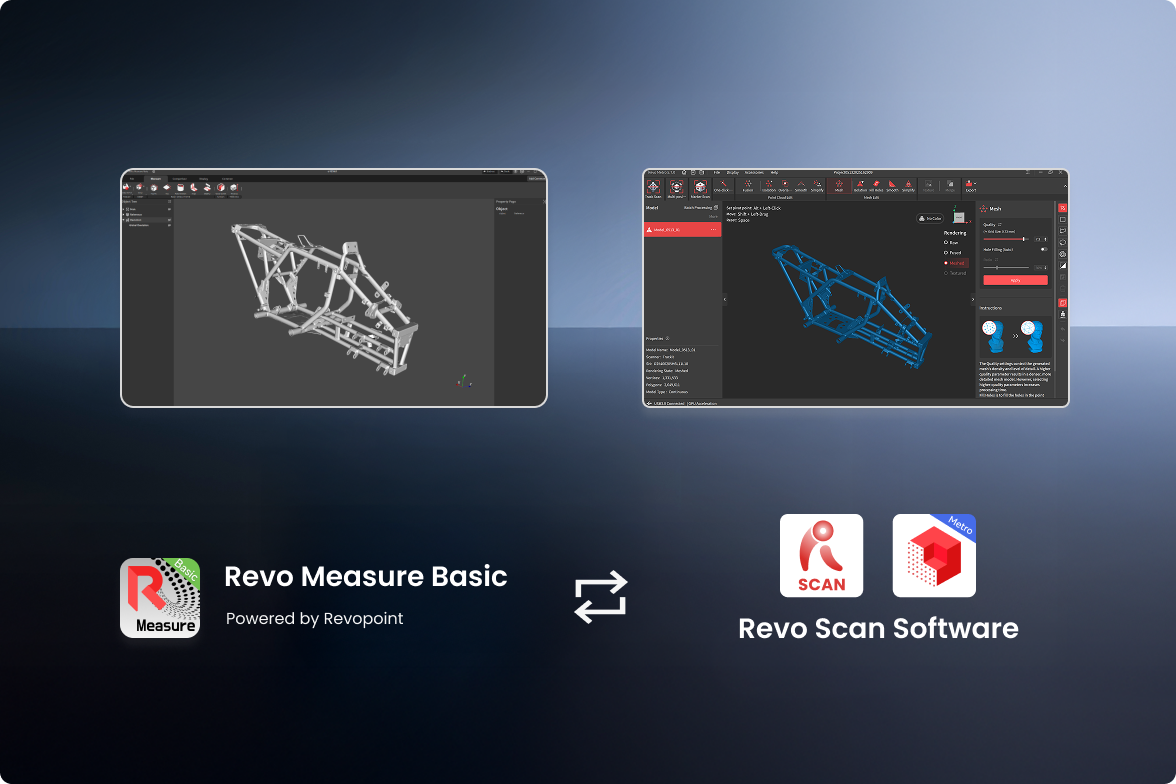

Compatible with Revo Scan Software
Seamlessly import point clouds and meshes created in all Revopoint scanning software into Revo Measure for an integrated workflow.
No activation code needed. Download free and explore core 3D measurement — with essential features to get you started.
Key Features
|
Features revo-measure-basic
|
Revo Measure |
Revo Measure Basic
|
|---|---|---|
|
Supported Import File Formats
|
||
|
Point Cloud: *.ply *.pts *.xyz *.csv *.asc *.txt
|
√
|
√
|
|
Mesh: *.ply *.stl *.obj *.3mf
|
√
|
√
|
|
CAD: *.stp *.step *.igs *.iges *.ipt *.iam *.catpart *.catproduct *.sldasm *.sldprt *.asm *.par *.psm *.x_b *.x_t *.jt *.sat *.sab *.3dxml *.model *.prc *.ifc *.vda etc.
|
√
|
✗
|
|
Supported Export File Formats
|
||
|
*.pdf
|
√
|
✗
|
|
*.json (supports secondary development)
|
√
|
✗
|
|
CAD and Scan Model Alignment
|
||
|
Automatic Alignment
|
√
|
√
|
|
Manual Alignment - N-Point Alignment
|
√
|
√
|
|
3-2-1 Alignment
|
√
|
✗
|
|
Supported Features
|
||
|
Point Feature
|
√
|
√
|
|
Line Feature
|
√
|
√
|
|
Plane Feature
|
√
|
√
|
|
Circle Feature
|
√
|
√
|
|
Cylinder Feature
|
√
|
√
|
|
Sphere Feature
|
√
|
√
|
|
Cone Feature
|
√
|
√
|
|
Creation Methods
|
||
|
Smart Fit Creation
|
√
|
√
|
|
Point Selection Fit
|
√
|
√
|
|
Input Coordinate Creation
|
√
|
√
|
|
Create from Auxiliary Objects
|
√
|
√
|
|
Create from Reference Mesh
|
√
|
√
|
|
Create from CAD
|
√
|
✗
|
|
Create Datum (23 in total)
|
√
|
√
|
|
GD&T
|
||
|
Straightness
|
√
|
✗
|
|
Flatness
|
√
|
✗
|
|
Roundness
|
√
|
✗
|
|
Cylindricity
|
√
|
✗
|
|
Concentricity
|
√
|
✗
|
|
Position
|
√
|
✗
|
|
Parallelism
|
√
|
✗
|
|
Perpendicularity
|
√
|
✗
|
|
Angularity
|
√
|
✗
|
|
Circular Runout
|
√
|
✗
|
|
Total Runout
|
√
|
✗
|
|
Distance Measurement
|
||
|
Point to Point
|
√
|
√
|
|
Point to Line
|
√
|
√
|
|
Line to Line
|
√
|
√
|
|
Line to Plane
|
√
|
√
|
|
Plane to Plane
|
√
|
√
|
|
Angle Measurement
|
||
|
Line to Line
|
√
|
√
|
|
Line to Plane
|
√
|
√
|
|
Plane to Plane
|
√
|
√
|
|
Volume Measurement
|
||
|
Overall Model Volume
|
√
|
√
|
|
Deviation Analysis
|
||
|
Overall Deviation
|
√
|
√
|
|
Point Deviation
|
√
|
√
|
|
Mesh Rendering
|
||
|
Wireframe Rendering
|
√
|
√
|
|
Mesh Rendering
|
√
|
√
|
|
Vertex Rendering
|
√
|
√
|
|
Texture Rendering
|
√
|
√
|
|
CAD Rendering
|
||
|
Solid Rendering
|
√
|
✗
|
|
Wireframe Rendering
|
√
|
✗
|
|
Solid Wireframe Rendering
|
√
|
✗
|
|
View
|
||
|
Best Fit Zoom
|
√
|
√
|
|
Initial Pose
|
√
|
√
|
|
One-Click Template Measurement
|
√
|
✗
|
|
Deviation Map Settings
|
√
|
√
|
|
Add Frequently Used Functions
|
√
|
√
|
|
Set Model Display Color
|
√
|
√
|
|
Reference Plane Selection Method
|
||
|
Coordinate System as Reference Plane
|
√
|
✗
|
|
Feature as Reference Plane
|
√
|
✗
|
|
Cross-Section Selection Method
|
||
|
Vertical
|
√
|
✗
|
|
Parallel
|
√
|
✗
|
|
Line
|
√
|
✗
|
|
Perpendicular Line
|
√
|
✗
|
|
Parallel Line
|
√
|
✗
|
|
Cross-Section Measurement
|
||
|
Point-Point
|
√
|
✗
|
|
Point-Line
|
√
|
✗
|
|
Line-Line
|
√
|
✗
|
|
Point-Circle
|
√
|
✗
|
|
Circle-Line
|
√
|
✗
|
|
Circle-Circle
|
√
|
✗
|
|
Angle
|
√
|
✗
|
|
Arc R
|
√
|
✗
|
|
Corner R
|
√
|
✗
|
|
Diameter
|
√
|
✗
|
|
Circumference
|
√
|
✗
|
|
Thickness
|
√
|
✗
|
|
Reference Cross-Section Comparison
|
||
|
Point-Point
|
√
|
✗
|
|
Point-Line
|
√
|
✗
|
|
Line-Line
|
√
|
✗
|
|
Angle
|
√
|
✗
|
|
Create Coordinate System
|
||
|
Numeric Creation
|
√
|
√
|
|
Feature Creation
|
√
|
√
|
|
Translation and Rotation
|
√
|
√
|
24/7 Customer Services
Supports 12 languages
Compatible with Revopoint Software
FAQ
What is the difference between Revo Measure Basic and Revo Measure?
What measurement features does Revo Measure Basic offer?
Does Revo Measure Basic have to be used with a Revopoint scanner? Can data from other devices be imported?
What model file formats can you import into Revo Measure Basic?
Point Cloud: .ply, .pts, .xyz, .csv, .asc, .txt
Mesh Model: .stl, .obj, .ply
Is Revo Measure Basic easy to use? Does it have intelligent assistance functions?
What languages does Revo Measure Basic support?
How do I get Revo Measure Basic?
What is the difference between Revo Measure Basic and Revo Design?
Revo Design is a tool designed for reverse engineering, surface modeling, and basic design projects. It supports 3D sketching, intelligent surfacing, freeform surface modeling, and hybrid parametric modeling, making it suitable for professional industrial design, complex automotive modifications, cultural heritage preservation, and comprehensive CAD editing tasks.
