Revopoint INSPIRE

Home

/

3D Scanners Comparison

/

INSPIRE

Overview

Up to 0.2 mm

Engineering-grade Accuracy

9-axis IMU

Intelligent Stabilization

Magic Mat

Easy Featureless Object Scanning

Our Most cost-effective 3D scanner

Fast Scanning Speeds

14-18 fps

Single Capture Area at Furthest Distance

308 × 225 mm at 500 mm

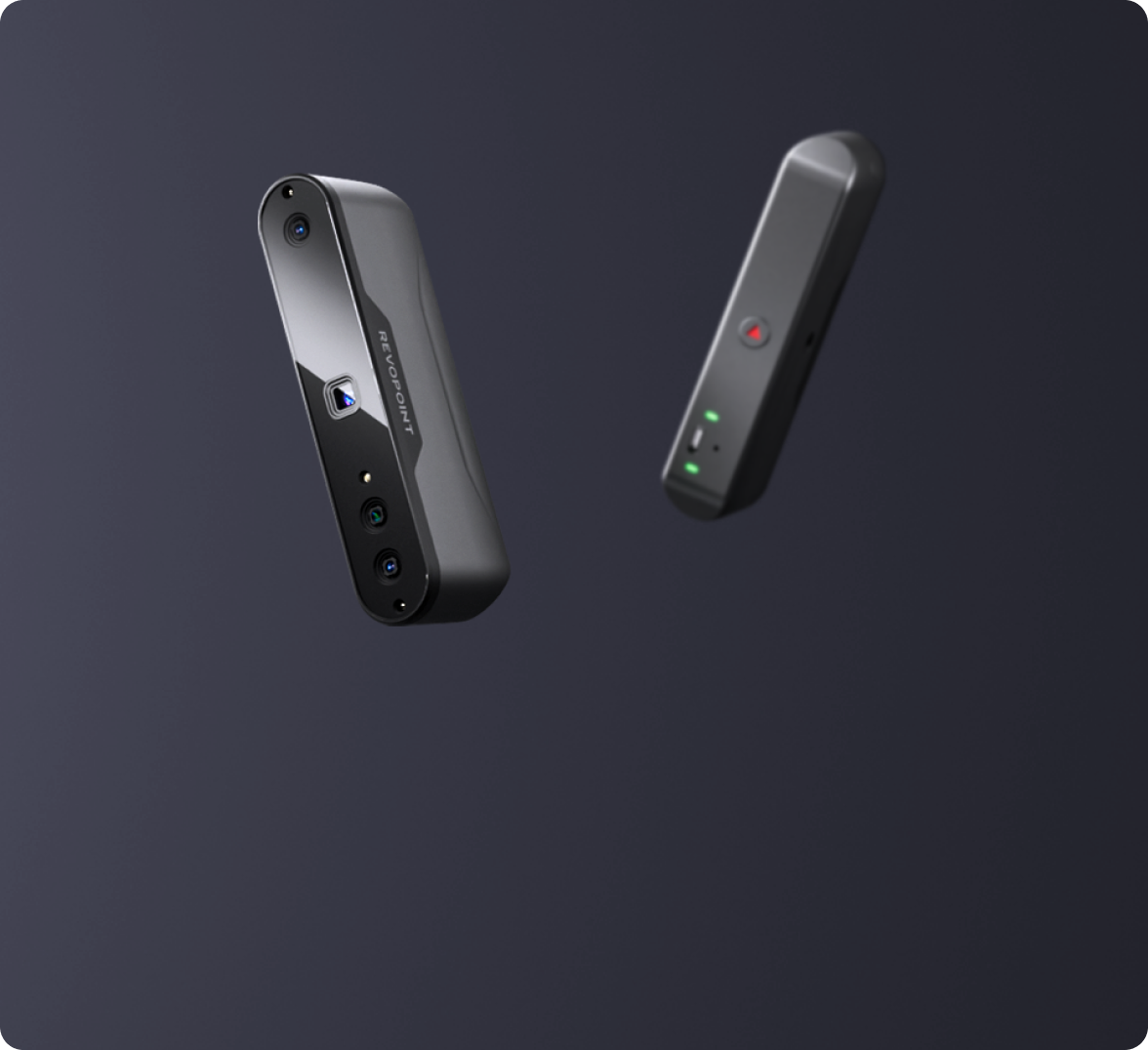

Compact Design

Only 140 g < MINI、POP 3、RANGE

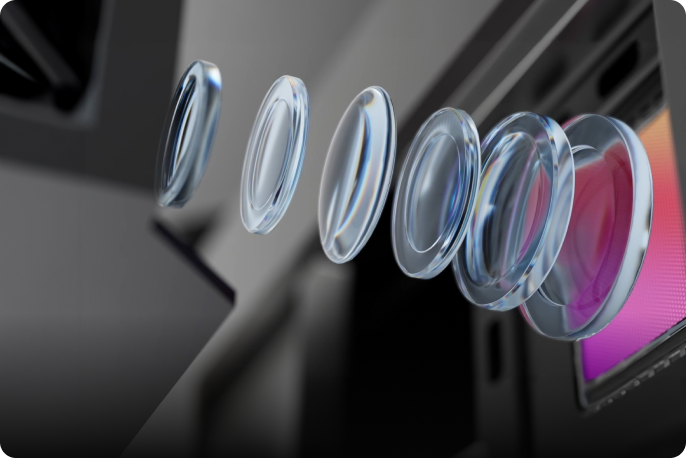

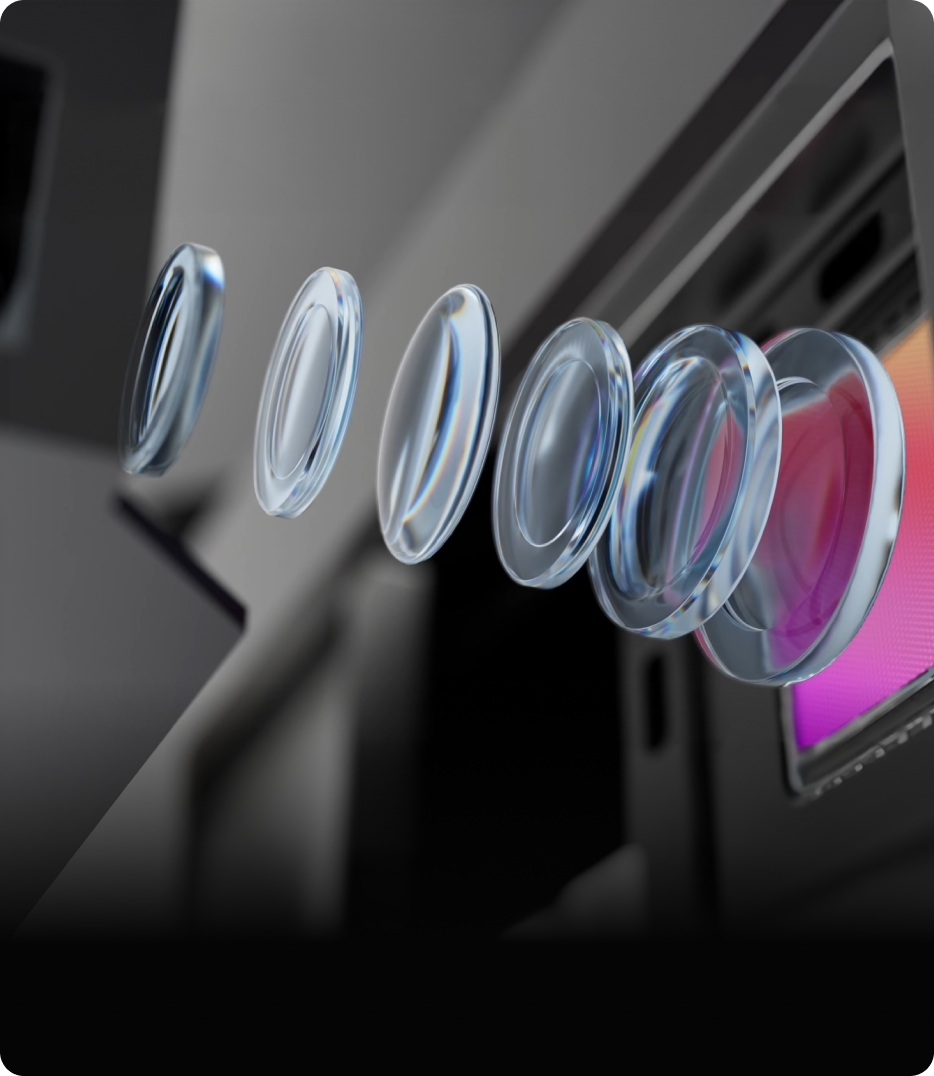

Technology

Binocular Dual-Camera Infrared Light

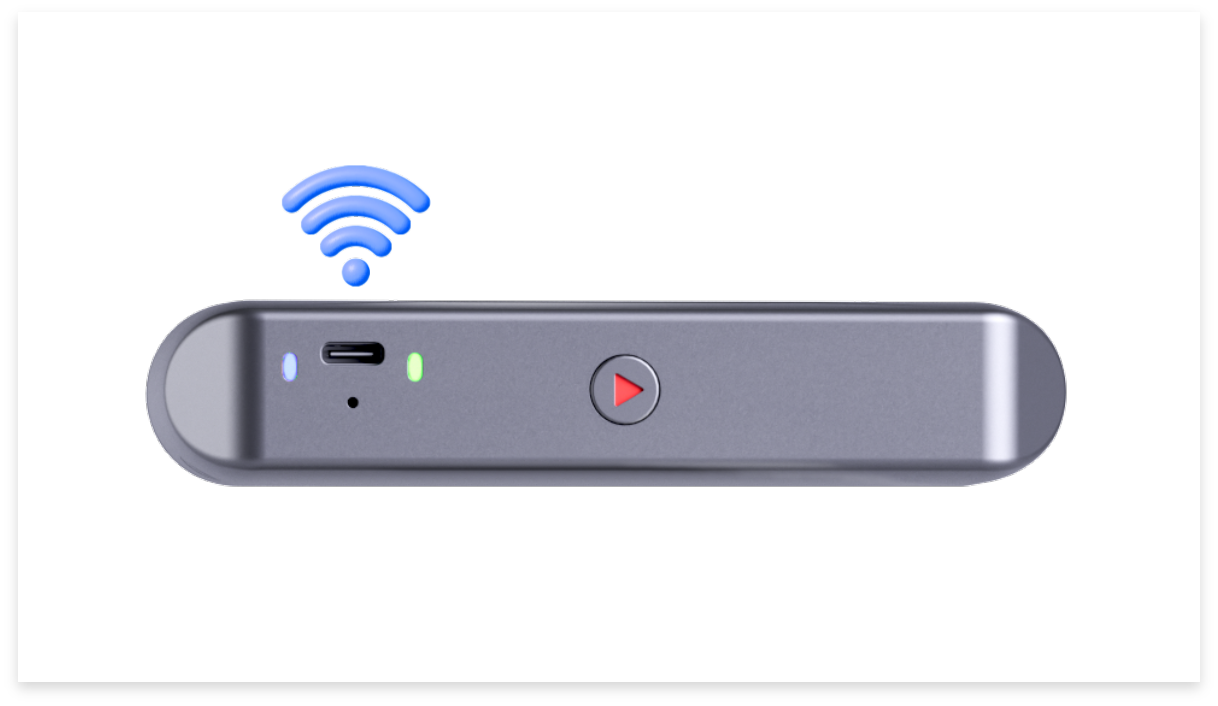

Seamless Connectivity

Wi-Fi 6 & USB Type-C

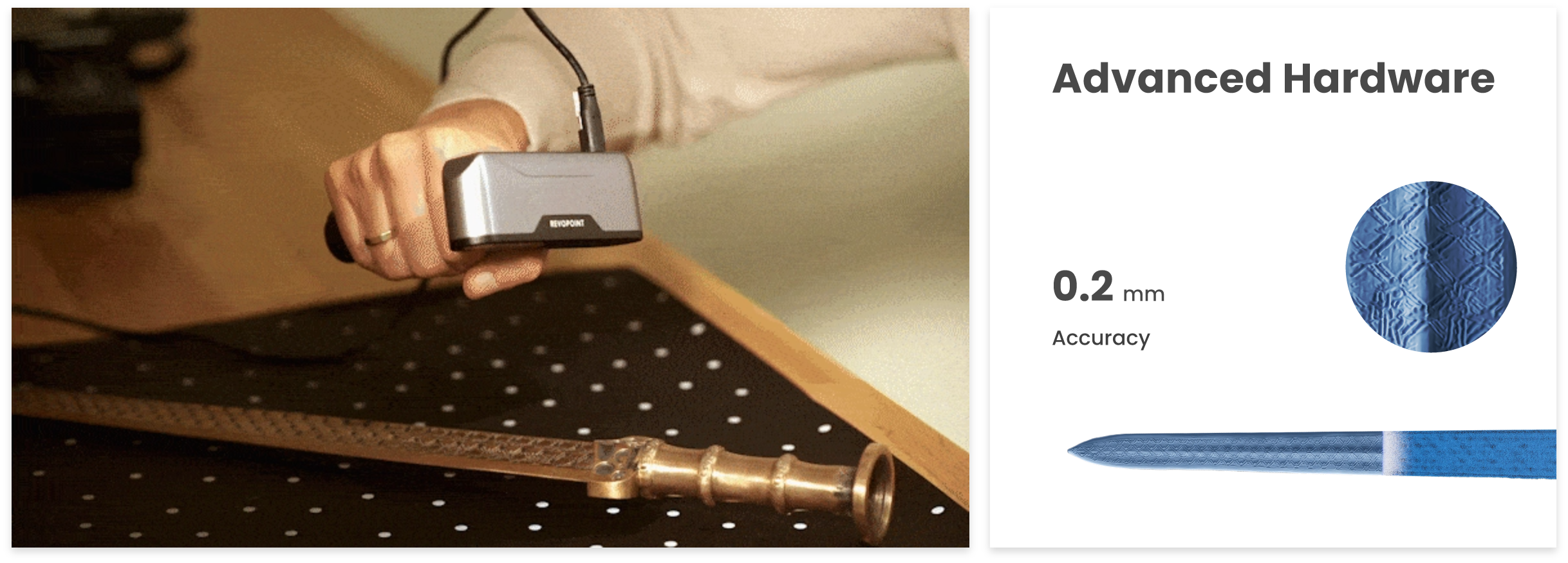

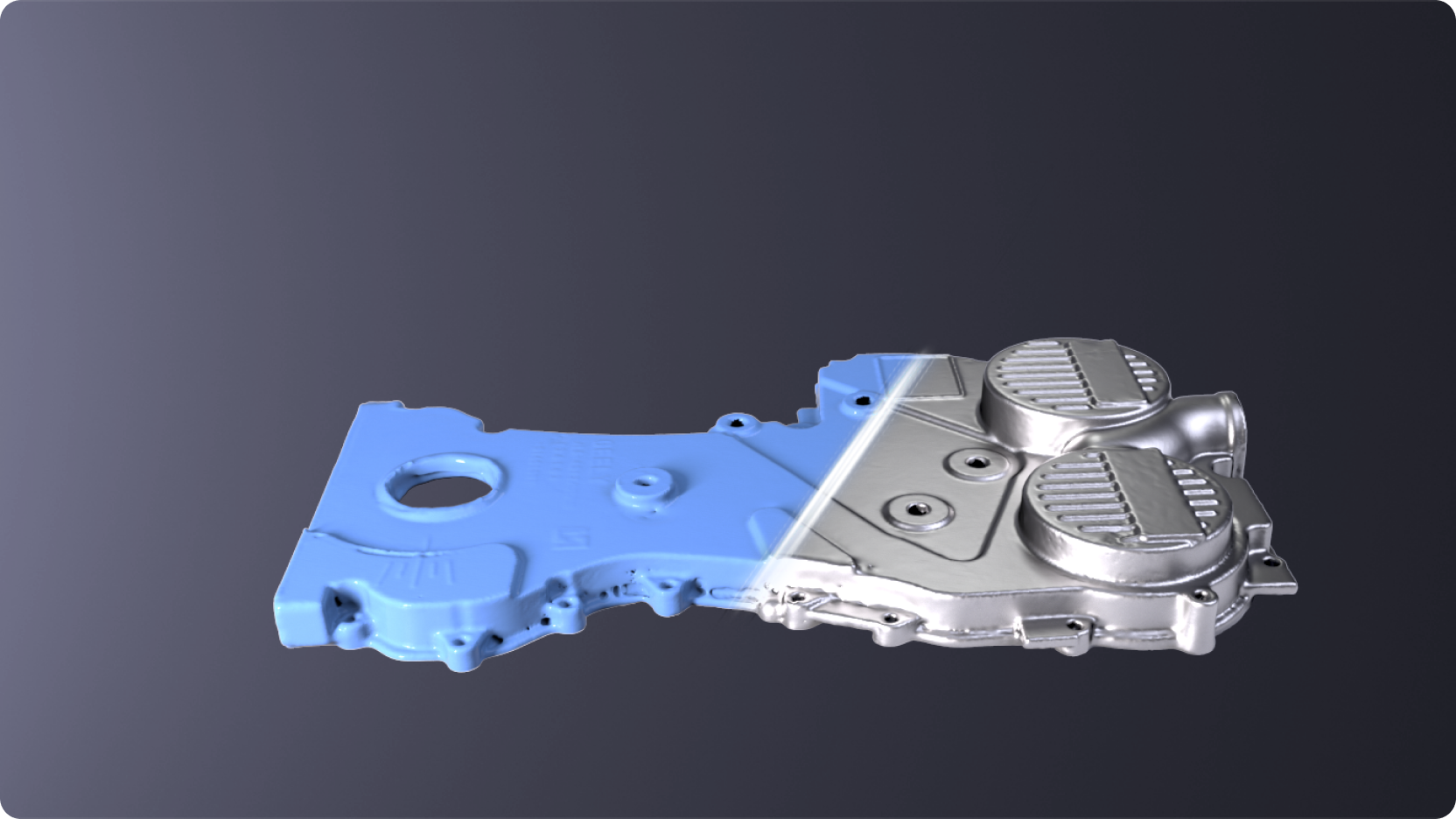

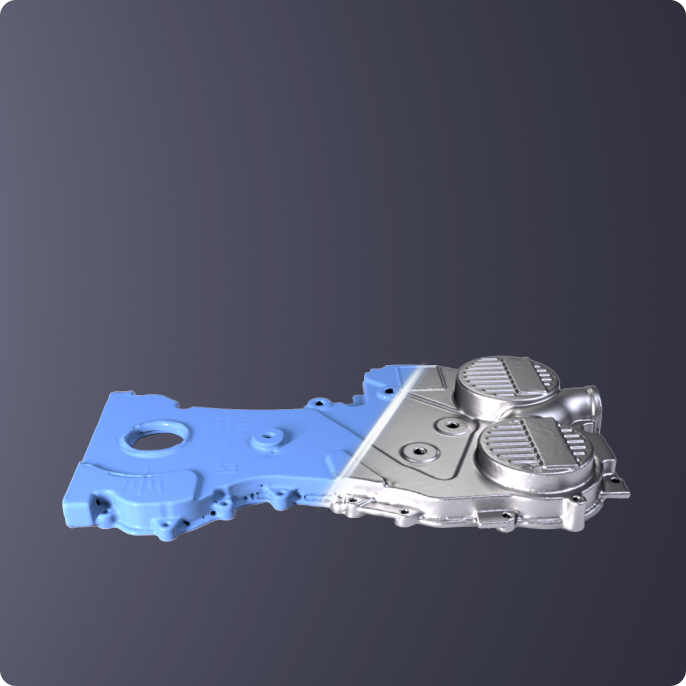

Accurate 3D Model Creation

Become a 3D modeling wizard with Revopoint INSPIRE 3D scanner's engineering-grade accuracy of up to 0.2mm and fast 14 fps to 18 fps scanning speeds, delivering ready-to use 3D models quickly.

Flexible Scans

Handheld

Turntable

Compact Versatility

With a compact 140g pocketable body, INSPIRE scanner can go everywhere and works as a handheld or turntable 3D scanner. It even connects to your Android or iOS smartphone for accessible on-the-go mobile scanning.

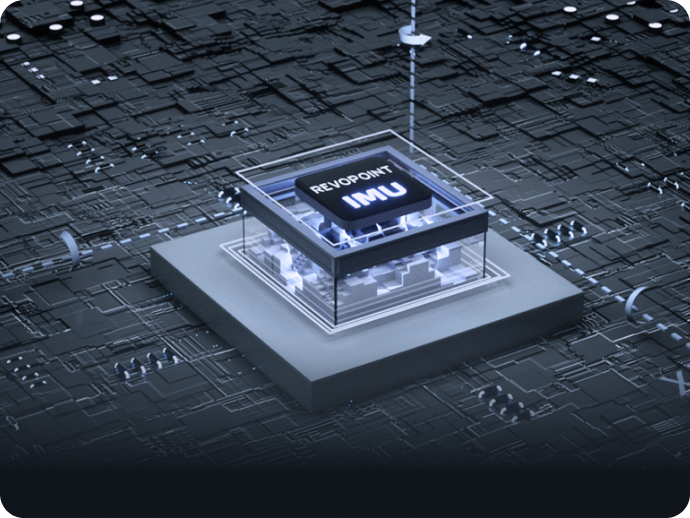

Popping Color Scans

Capture sharper scans as INSPIRE automatically removes faulty frames caused by unsteady hands or sudden movement with its 9-axis IMU (inertial measurement unit) and smart algorithms.

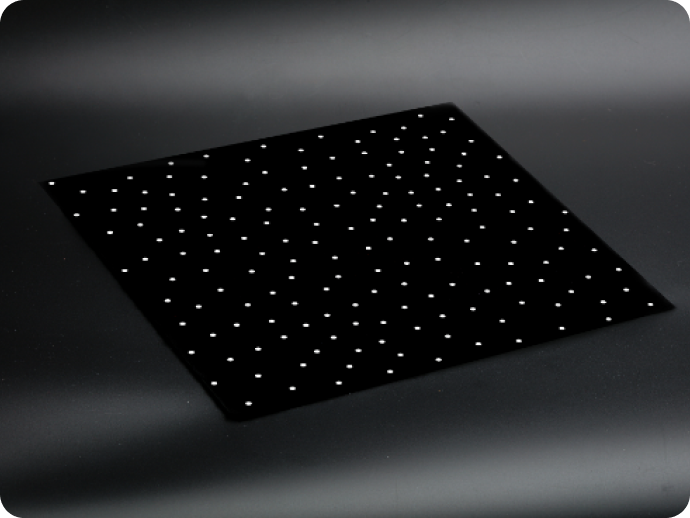

User-friendly Maker Tracking

Scan featureless objects with ease using Magic Mat (a 50cm x 50cm mat with pre-placed marker points) and INSPIRE's dual infrared LEDs, increasing marker visibility and smart algorithms stitching the frames together.

High-Performance Software

Revo Scan 5 is your portal to intuitive 3D scanning and powerful editing. And it runs on nearly everything, with full support for iOS, Android, Windows, and macOS devices. Export your models in PLY, OBJ, STL, ASC, 3MF, GLTF or FBX formats for compatibility with most CAD, 3D modeling, and slicer software.

Revo Scan 5

Integrates model scanning, post-processing, and multi-model alignment functionalities

Learn More >

One-click
Post-processing

Runs on Nearly
Everything

Models Made With INSPIRE

Explore More

Applications

3D Printing

Stop relying on others for your 3D prints and start making ready-to-import 3D models with INSPIRE.

Historical Preservation

Get accurate full-color scans of historical artifacts and antiques to aid in their restoration, preservation, or for educational purposes.

Mod a Game

Add a unique twist to your favorite video games by creating and importing a scan of your face, pet, clothes, or anything you want into the game engine.

Explore Digital Design

Explore your creativity by capturing models with INSPIRE, then transform them however you want in 3D modeling software to create something entirely new.

The Buzz on INSPIRE

“The new Revopoint INSPIRE 3D Scanner offers a wide range of features for straightforward, high-quality 3D scanning. ”

Reviews on YouTube

Go to Revopoint's Channel >

Specifications

Product Name

Revopoint INSPIRE

Scanning Environment

Indoors and Outdoors

Technology

Dual-camera Infrared Structured Light

Scanner Weight

140 g

Single-frame Accuracy

Up to 0.2 mm

Dimensions (L x W x H)

132 × 45 x 27 mm

Fused Point Distance

Up to 0.1 mm

3D Printing Compatible

Yes

Single Capture Area

Nearest Distance

162 × 111 mm at 250 mm

Single Capture Area

Furthest Distance

308 × 225 mm at 500 mm

Compatible Operating Systems

Windows 10/11, Android,

IOS, macOS 11.0 or better

Working Distance

250 mm ~ 500 mm

Auxiliary Lighting

2 IR LEDS / 1 Flash LED

Minimum Scan Volume

50 × 50 x 50 mm

Color Scanning

Yes

Scanning Speed,up to

18 fps

Connector Type

USB Type-C

IMU

9-axis

External Controls

Buttons 1

3D Light Source

Class 1 Infrared Light

Output Formats

PLY, OBJ, STL, ASC, 3MF, GLTF, FBX

Tracking Methods

Feature, Marker, Global Marker

Minimum PC Requirements

macOS
CPU: M1 Pro or better; RAM ≥ 8GB
Windows
CPU: Intel i7 12th Gen or better; RAM ≥ 16GB

Recommended PC Requirements

macOS
CPU: M3 or better; RAM ≥ 8GB
Windows
CPU: Intel i9 11th Gen or better; RAM ≥ 32GB

Special Object Scanning

Use scanning spray for transparent,

dark, or highly reflective objects.

Note:
1. Precision is how close repeated measurements of the same object at a single angle are to each other. Accuracy is how close a measured value at a single angle is to the actual (true) value. They were both acquired in a controlled lab environment. Actual results might vary, subject to the operation environment.
2. Outdoor scans should avoid direct sunlight.
3. Class 1 Laser: Avoid direct eye exposure for extended periods! Refer to Standards for Class 1 Lasers for details.
4. Some products have flashing lights, which may not be suitable for people with photosensitive epilepsy.
5. The MIRACO series 3D scanners require no PC when scanning. But the PC requirements above should be followed if you connect the MIRACO to Revo Scan (PC) for more operations.

What’s in the Box?

INSPIRE Standard Edition

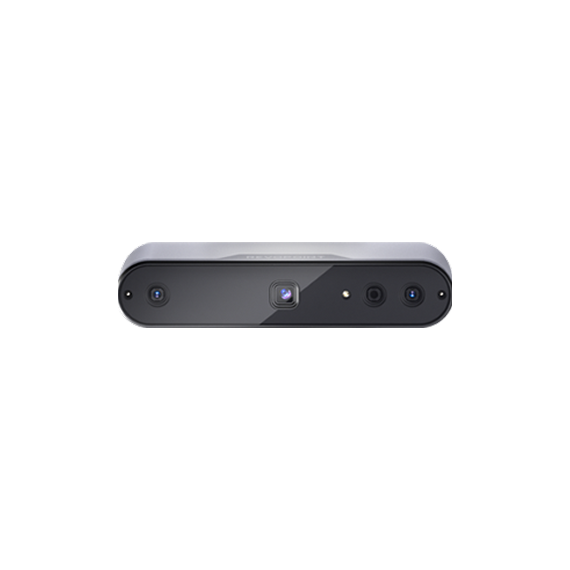

INSPIRE 3D Scanner

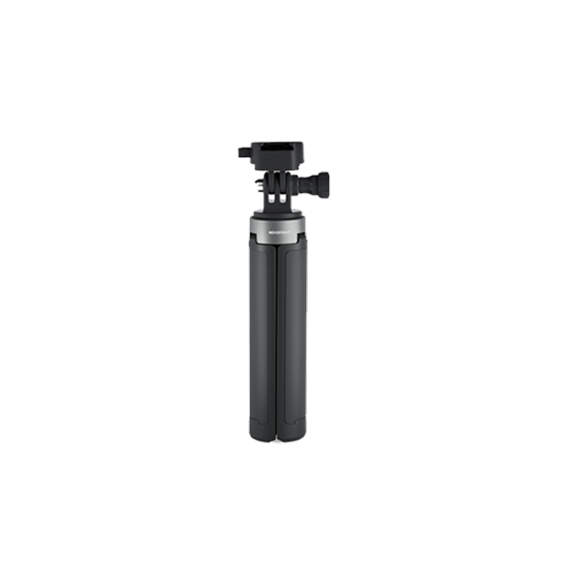

Tripod

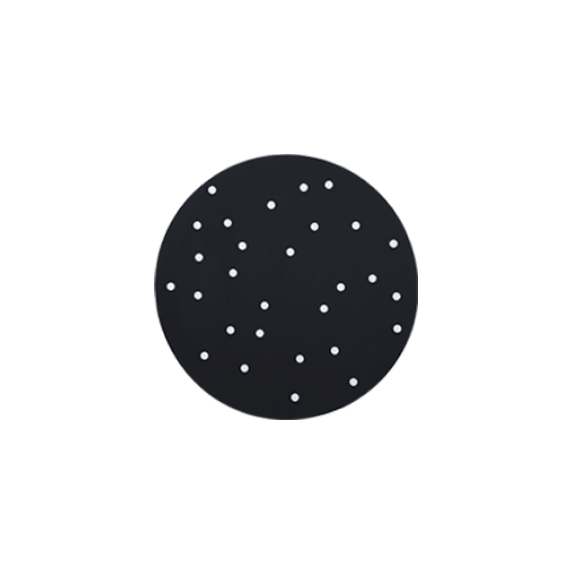

Turntable Topper

Mini Turntable

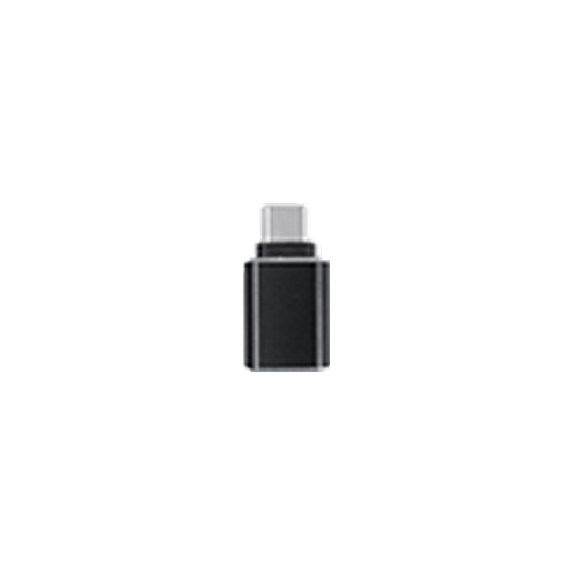

USB Type-C Adapter

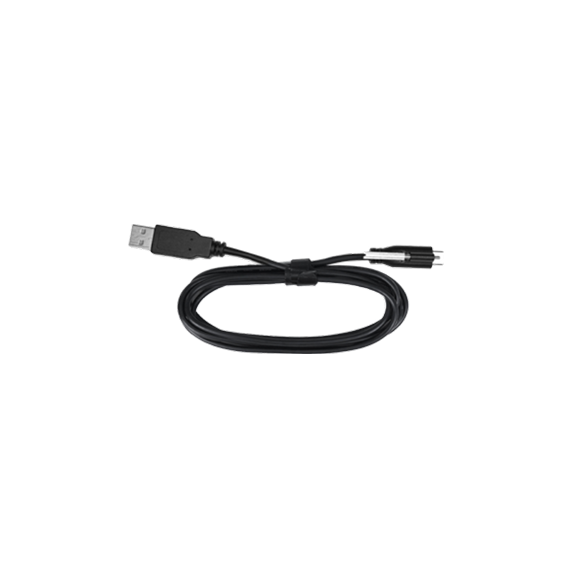

USB Type-A to Type-C Cable

Turntable Power Cable

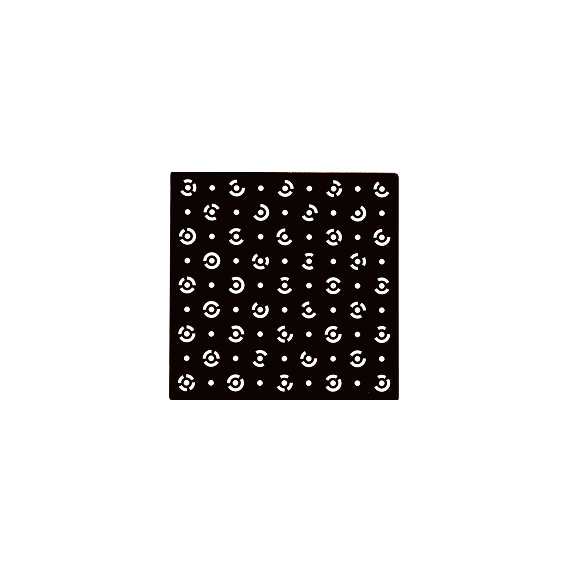

Calibration Board

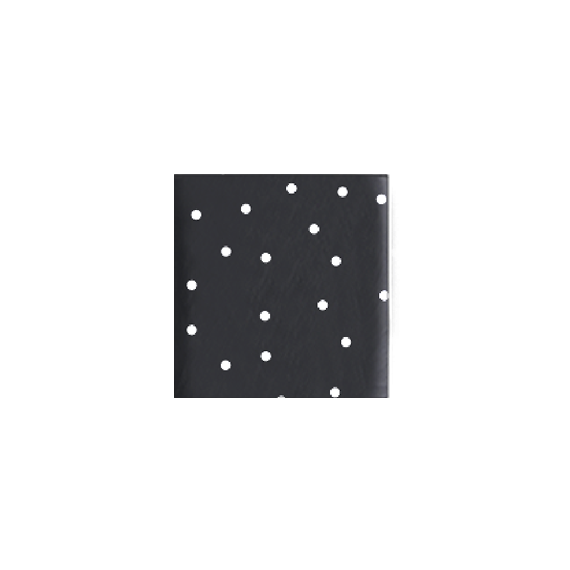

Magic Mat

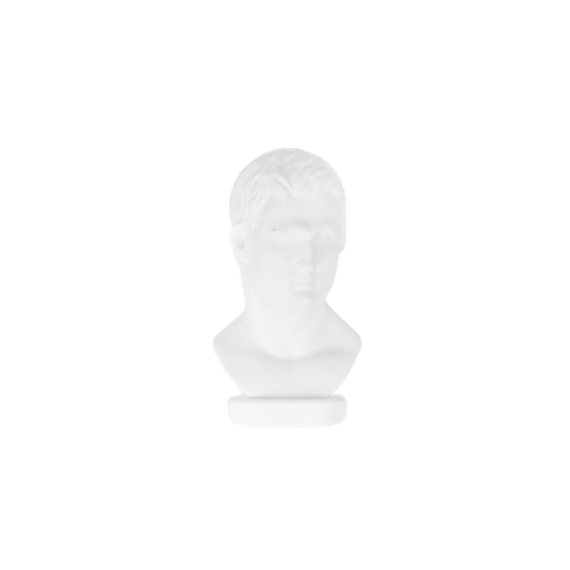

Sample Bust

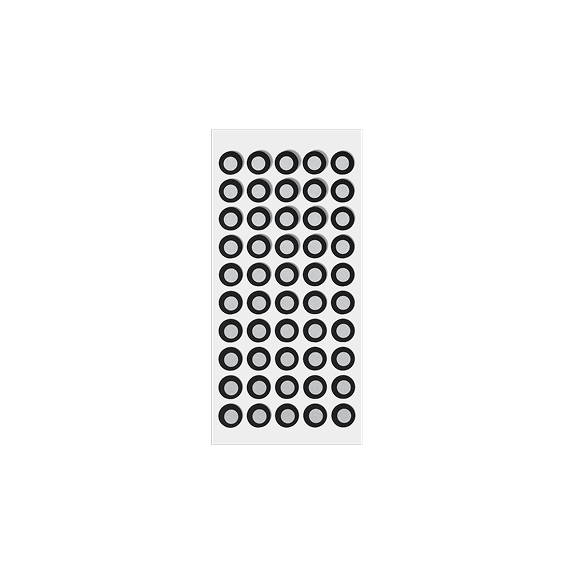

Markers
